300V 250c PTFE Tape Fiberglass Braid Wire
Yangzhou Fongming Cable Factory- Type:Insulated
- Conductor Type:Stranded
- Application:Heating, Underground
- Conductor Material:Copper
- Sheath Material:Fiberglass
- Insulation Material:PTFE Tape
Base Info
- Model NO.:TGGT27
- Material Shape:Round Wire
- Range of Application:Heating
- Certification:ISO9001, CE, UL, CCC, RoHS, CSA
- Brand:Fongming
- Name:300V 250c PTFE Tape Fiberglass Insulated Tggt Wire
- Rating Voltage:300V
- Working Temperature:250c
- Color:as Required
- Sample:3 Meters Free, 3 Days
- Customize:Available
- MOQ:1000 Meters
- Standard:UL758, UL1581
- Transport Package:305m Per Roll, Carton Box Outside
- Specification:0.14-25mm2
- Trademark:Fongming
- Origin:Yangzhou, P. R China
- HS Code:8544492100
- Production Capacity:100000000meters Per Month
Description
Basic Info.
Model NO. TGGT27 Material Shape Round Wire Range of Application Heating Certification ISO9001, CE, UL, CCC, RoHS, CSA Brand Fongming Name 300V 250c PTFE Tape Fiberglass Insulated Tggt Wire Rating Voltage 300V Working Temperature 250c Color as Required Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Standard UL758, UL1581 Transport Package 305m Per Roll, Carton Box Outside Specification 0.14-25mm2 Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
Product Description300V 250C PTFE Tape Fiberglass Insulated TGGT Wire
Description
Name: PTFE Tape Fiberglass Insulated TGGT Wire
Model: TGGT27
Size: 0.14-25mm2
Feature
Ratings Voltage: 300V
Rated Temperature: 250C

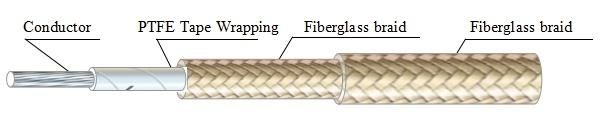

Structure
Conductor: 27% Nickel Plated Copper
Insulation: PTFE Tape
Inner Jacket: Fiberglass Braid
Jacket: Fiberglass Braid
Size mm2 | Conductor Structure | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | Diameter (mm) |
0.14 | 7/0.16 | 0.48 | 0.1 | 0.68 | 0.2 | 1.08 | 0.2 | 1.5 |
0.22 | 7/0.2 | 0.6 | 0.1 | 0.8 | 0.2 | 1.2 | 0.2 | 1.6 |
0.25 | 7/0.23 | 0.69 | 0.1 | 0.89 | 0.2 | 1.29 | 0.2 | 1.7 |
0.5 | 16/0.2 | 0.92 | 0.1 | 1.12 | 0.2 | 1.52 | 0.2 | 1.9 |
0.75 | 24/0.2 | 1.13 | 0.1 | 1.33 | 0.2 | 1.73 | 0.2 | 2.1 |
1.0 | 32/0.2 | 1.31 | 0.21 | 1.73 | 0.2 | 2.13 | 0.2 | 2.5 |
1.5 | 30/0.254 | 1.58 | 0.21 | 2 | 0.2 | 2.4 | 0.2 | 2.8 |
2.0 | 40/0.254 | 1.83 | 0.21 | 2.25 | 0.2 | 2.65 | 0.2 | 3.1 |
2.5 | 50/0.254 | 2.04 | 0.21 | 2.46 | 0.2 | 2.86 | 0.2 | 3.3 |
4.0 | 34/0.39 | 2.62 | 0.21 | 3.04 | 0.2 | 3.44 | 0.2 | 3.8 |
6.0 | 50/0.39 | 3.18 | 0.21 | 3.6 | 0.2 | 4 | 0.25 | 4.5 |
10.0 | 84/0.39 | 4.13 | 0.28 | 4.69 | 0.2 | 5.09 | 0.25 | 5.6 |
16.0 | 133/0.39 | 5.70 | 0.28 | 6.26 | 0.2 | 6.66 | 0.25 | 7.2 |
25.0 | 210/0.39 | 7.15 | 0.28 | 7.71 | 0.2 | 8.11 | 0.25 | 8.6 |
Certifications
Company Information
Packaging&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why is the price so low?
You are ordering directly from the factory.
2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3. Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
