Industrial High  Temperature  Resistant Smooth Flat Wire Power Cable
Chongqing Tianbao Conductor Busbar Electrical Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Elevator, Crane, Lift
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC, PVC,Rubber
Base Info
- Model NO.：YBF
- Material Shape：Round Wire
- Range of Application：Industrial, Crane, Hoist, Lifting etc.
- Certification：ISO9001, CE, CCC, RoHS
- Brand：Tianbao
- Shape：Flexible Cable
- Number of Cores：1-24
- AC Rated Voltage：450V,750V
- Standard Level：Q,32028aq001-91
- Cross Section：4mm2
- Transport Package：Ply Wood Case
- Specification：CCC, ISO, CE etc.
- Trademark：Tianbao
- Origin：Chongqing, China
- HS Code：85444921
- Production Capacity：500000 Meters Per Month
Description
Outdoor places with oil pollution

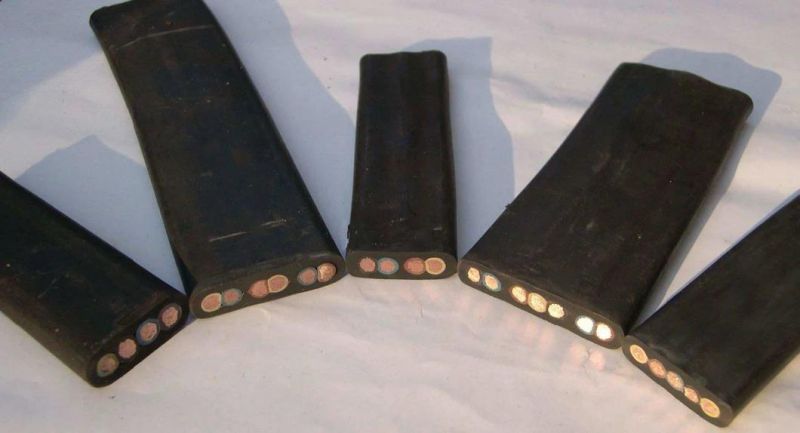

and the cable with flame retardantYBZ Ethylene propylene insulation and
neoprene sheath flat type flexible cable -20ºC~ 70ºC
Parameters
StandardsConductor structure Reference parameter of cable
20ºC min
insulated
resistance
Max extermal diameterG.W 20ºC max dc resistance
number x area
mm²
number x diameter
mm
Width x thickness
mm
kg/kmtinned Ω/km untinned Ω/km Ω/km 3 x 4 56/0.30 19.6x8.9 285 4.95 5.09 50 400 3 x 6 84/0.30 22.0x9.9 380 3.3 3.39 3 x 10 80/0.40 27.5x12.0 615 1.91 1.95 3 x 16 126/0.40 31.1x13.3 830 1.21 1.24 3 x 25 196/0.40 38.3x15.8 1230 0.78 0.795 3 x 35 276/0.40 42.8x17.6 1605 0.554 565 40 300 3 x 50 396/0.40 49.2x20.0 2205 0.386 0.393 3 x 70 360/0.50 55.6x22.5 2965 0.272 0.277 3x4+2x1 56/0.30+32/0.20 25x8.5 427 4.92 5 50 400 3x 6+2x 1 84/0.30+32/0.20 30x12 590 3.3 3.34 50 400 3x4+2x1.5 84/0.30+32/0.25 30x12 600 3.3 3.38 50 400 6x2.5+6x1.5 49/0.25+30/0.25 35x15 900 7.98 8.05 50 400 3x4+4x2.5 56/0.30+49/0.25 32x9 520 4.95 5.03 50 400 3x25+1x10 196/0.40+84/0.40 53x18 1800 0.78 0.81 50 400 3x16+1x10 126/0.40+84/0.30 43x15 1200 1.21 1.27 50 400 3x35+2x10 276/0.40+84/0.40 61x21 2500 0.554 0.56 40 300 3x50+1x10 396/0.40+84/0.40 65x24 3200 0.386 0.392 40 300 4x2.5 49/0.25 22.5x8.2 285 7.98 8.21 50 400 4x4 56/0.30 26.2x9.1 396 4.95 5.09 50 400 4x6 84/0.30 29.2x9.9 505 3.3 3.39 50 400 4x10 84/0.30 36.5x12 835 19.1 1.95 50 400 4x25 196/0.40 51.1x15.8 1665 0.78 0.795 50 400 4x35 276/0.40 57.0x17.6 2170 0.54 0.565 40 300 7x2.5 49/0.25 37.2x8.2 490 7.98 8.21 50 300 8x1.5 30/0.25 33.4x7.0 380 13.3 13.7 50 300 8x2.5 49/0.25 41.6x8.2 555 7.98 8.21 50 300 10x1.5 30/0.25 40.3x7.0 465 13.3 13.7 50 400 10x2.5 49/0.25 50.4x8.2 680 7.98 8.21 50 400 12x1.5 30/0.25 48.3x70 565 13.3 13.7 50 400 12x2.5 49/0.25 60.5x8.2 820 7.98 8.21 50 400
Application
Industrial, Crane, hoist , lifting etc.
and the cable with flame retardant
neoprene sheath flat type flexible cable
