Cat7 Stranded Cable Ethernet Cable SFTP 305m Roll
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Type：Cat 7
- Material Shape：Round Wire
- Conductor Type：Solid
- Wire Core Material：Bare Copper Wire
Base Info
- Model NO.：S,FTP Cat7
- Certification：CE, ISO, RoHS
- Conductor：AWG26,7 Stranded Tinned Copper
- Insulation：Foamed PE
- Individual Shield：Al-Foil
- Primary Overall Shield：Copper Braid,Tinner
- Outer Jacket：PE
- Drain Wire：None
- Ripcord：None
- Transport Package：305m,Pull Box, 2 Pull Box,CTN.
- Specification：CE, ISO, RoHS, ETL SGS CPR ISO9001
- Trademark：Risun or OEM
- Origin：Hangzhou, Zhejiang, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes Per Month
Description
S/FTP CAT7 strandConductor Strand Bare Copper 0.48mm (AWG26/7) Bending radius ≥ 50 mm installation ≥ 25 mm installation Temperature range during operation:-20°C up to +60°C during operation:0°C up to +50°C Nom. mutual capacitance < 56 pF/m (@1kHz) Pair-ground capacitance unbalance <160 pF/100m Nominal velocity of propagation 65% Max. delay skew 25 ns/100m Max. conductor DC resistance 145 Ω/km (@ 20°C) Max. conductor resistance unbalance 2% Min. insulation resistance 5000 MΩ·km Max. operating voltage - UL 300 V

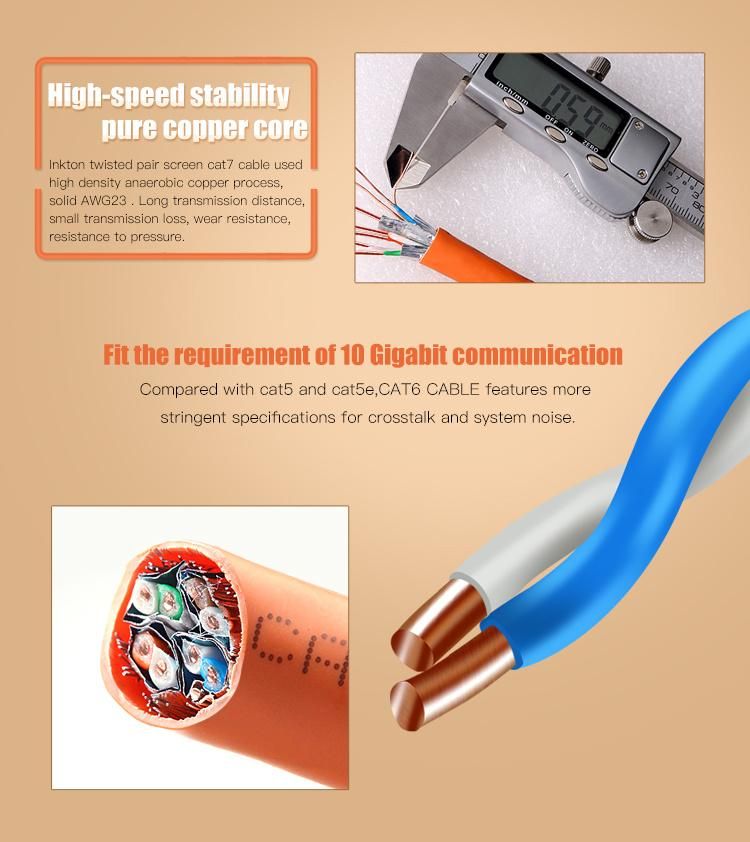

Details Images:
Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.
We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
Packing&Shipping:
Why Choose Us:
FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.
Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)
Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.
Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
WELCOME TO RISUN!!!
