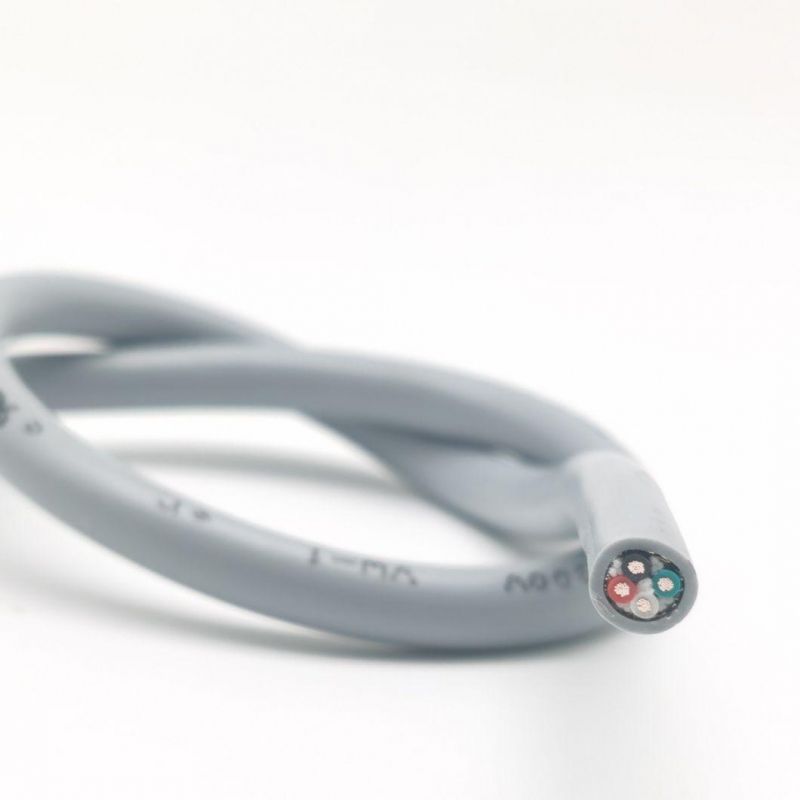

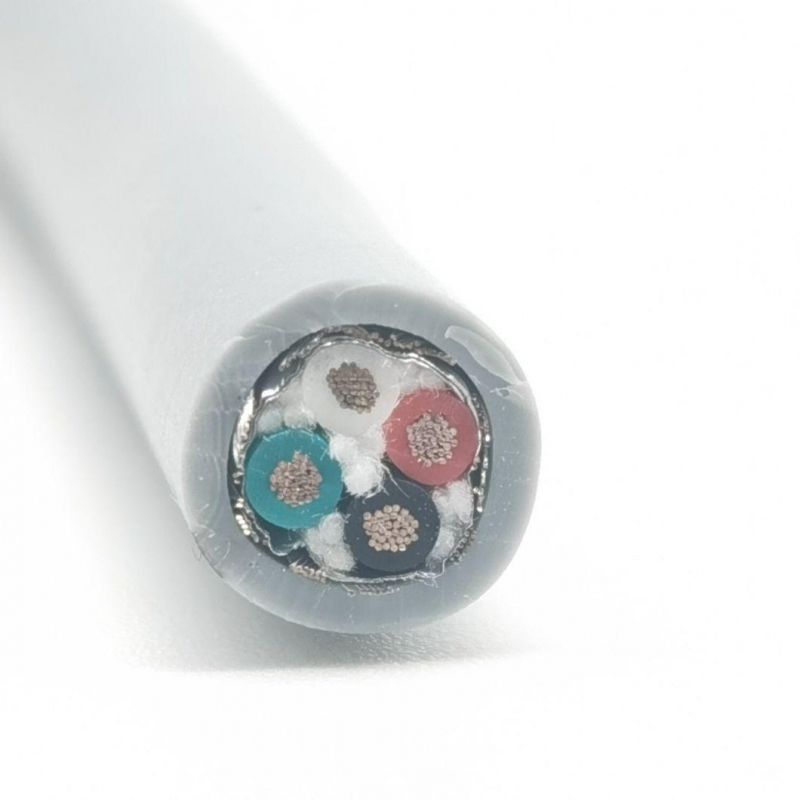

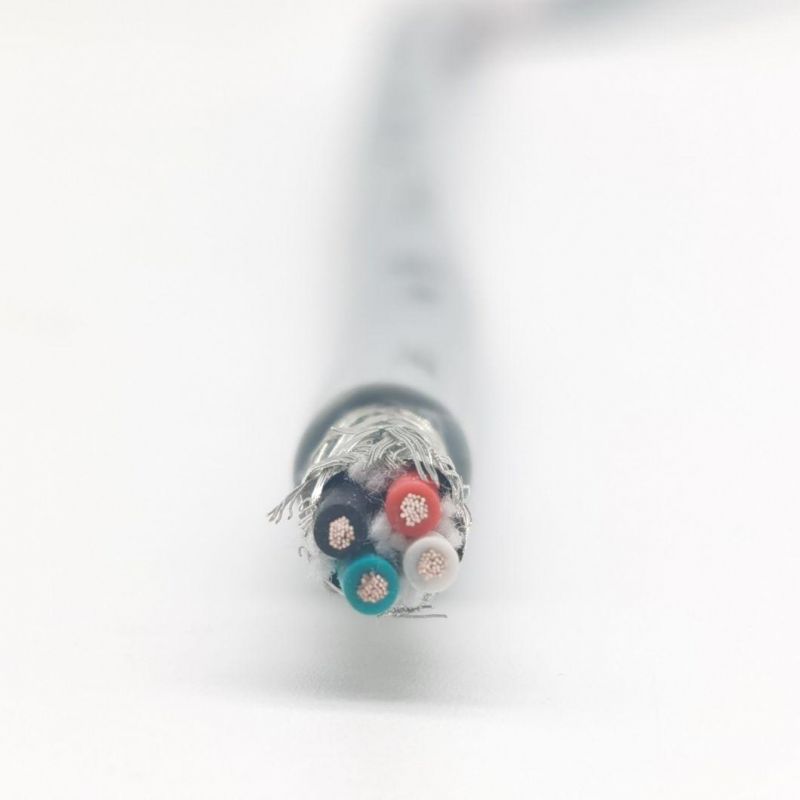

Kystcy / Kystcuy/ Kystfuy Cable High-Flexible Lift Control Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC,PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：KYSTCY , KYSTCUY, KYSTFUY Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemKYSTCY / KYSTCUY/ KYSTFUY Cable  ConductorBare copper stranded condutorInsulationPVC, PE (0,5)Supporting element Central supporting element of textile fibres Overall strandingCores stranded in layers ShieldCopper braid/wrapped tinned wires; coverage ca. 80%Outer sheathPVCCore numberMulticores (As client's requirement)Rated voltage 0,5 mm² - 300 V; >1 mm² - 300/500 VMin. bending radius fixed 12 x dMin. bending radius moved12 x dOperat. temp. fixed min/max -30 °C / +70 °COperat. temp. moved min/max -5 °C / +70 °CBurning behaviorSelf-extinguishing and flame retardant acc. to IEC  60332-2-2 Standard Similar to DIN VDE 0250 ColorOptionalApplicationHigh-flexible lift control cable with supporting element for medium mechanical stress. Suitable for dry and humid rooms.
