• Model NO.：AMKA-T Cable
• Wire Core Material：Aluminum
• Certification：ISO, CCC, CE
• Model：Amka-T
• Brand：Hongda
• Phase Conductors：2, 3 or 4 Longitudinal Ridges
• Optional Conductor：No Ridges
• Transport Package：Wooden Drum
• Specification：6sqmm to 150sqmm
• Trademark：Hongda, accept OEM
• Origin：China
• HS Code：8544492100
• Production Capacity：45km,Day

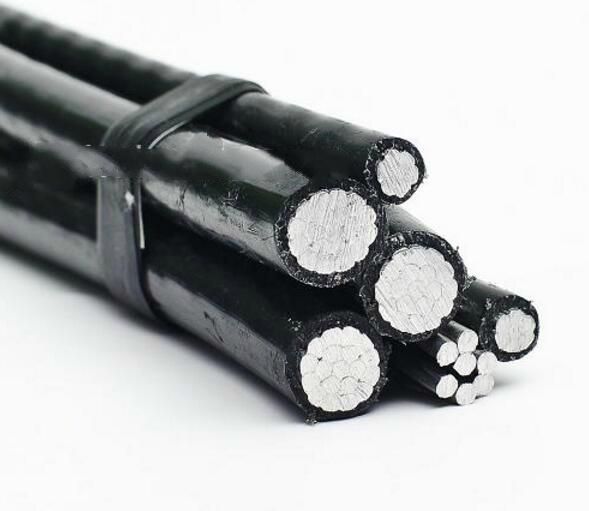

Conductor16 mm²: solid aluminium wire
25-120 mm²: stranded aluminium wireInsulationBlack weather-resistant PE / XLPE compoundMessengerStranded aluminium alloy wireLaying upInsulated conductors are laid up around the messenger
IDENTIFICATION OF CORES
Phase conductors: 2, 3 or 4 longitudinal ridges
Optional conductor: no ridges

STANDARDS
SFS 2200
HD 626-5D
NFC 33-209

CUSTOMS CODE: 8544492100

Mechanical Properties

BUNDLE MAIN CHARACTERISTICS TO SABS 1418 - 1986

Bundle Size mm²


Phase Neutral Lighting

Bundle

Phase
conductor
approx. Ø

mm


Neutral
conductor
approx. Ø

mm


Lighting
conductor
approx. Ø

mm


Max
current
rating
air at
30°C


3 volt
drop
PF=1.0
at 30°C
V/A/km


Max Liner
resistance
per phase
conductor
at 30°C-km

Approx
overall
Ø
mm


Approx
weight
kg/m

3x25 + 54.6 + 1x25

29

0.70

9

12.4

9

98

2.62

1.200

3x35 + 54.6 + 1x25

31

0.82

10.2

12.4

9

120

1.89

0.868

3x50 + 54.6 + 1x25

33

0.95

11.6

12.4

9

150

1.40

0.641

3x70 + 54.6 + 1x25

37

1.25

13.7

12.4

9

200

0.97

0.443

3x95 + 54.6 + 1x25

41

1.45

15.2

12.4

9

240

0.71

0.320

3x120 + 70 + 1x25

45

1.70

16.5

13.5

9

280

0.57

0.253

3x35 + 35BN

23

0.47

9.65

7.05

N/A

130

1.08

0.868

3x70 + 50BN

30

0.84

11.05

8.05

N/A

205

0.55

0.443

Cable
Description

Size (mm²)

Current Rating
(Amp)

Weight
(kg/m)

2x25

25

98

0.23

4x25

25

92

0.46

2x16AI

16

80

0.15

4x16AI

16

74

0.30

4 Airdac

4-Phase & Neutral,
2.5 Earth

50

0.16

6 Airdac

6-Phase & Neutral,
4 Earth

65

0.22

10 Airdac

10-Phase & Neutral,
7.5 Earth

90

0.32

16 Airdac

16-Phase & Neutral,
10 Earth

125

0.49

4 Airdac II

4

50

0.12

10 Airdac II

10

86

0.25

16 Airdac II

16

125

0.41

(1) Approximate value.
(2) See the basic assumptions at general information of products.
(3) Final installation with careful single bending into final position.
(4) The effective diameter in wind is equal to the length of measuring tape wrapped around the cable divided by the value 3,1416 (pi).
(5) Initial temperature of conductor before short circuit 70°C, final temperature of conductor after short circuit 135°C.
(6) Initial temperature of messenger before short circuit 70°C, final temperature of messenger after short circuit 135°C.

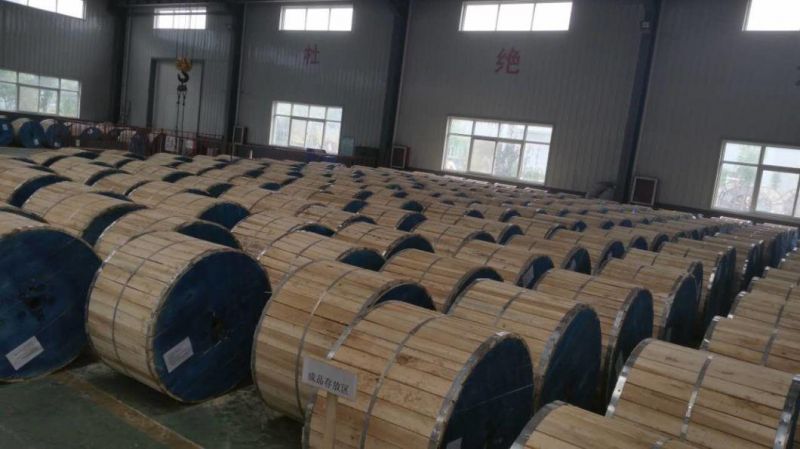

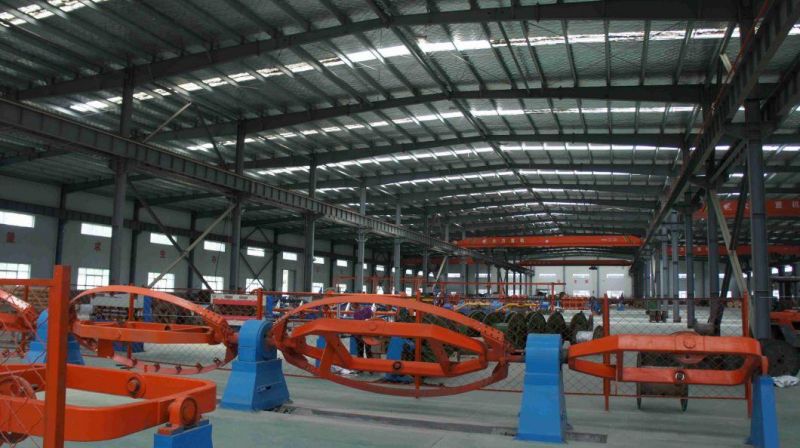

PACKAGE AND FACTORY:



For more information, don't hesitate to contact us
