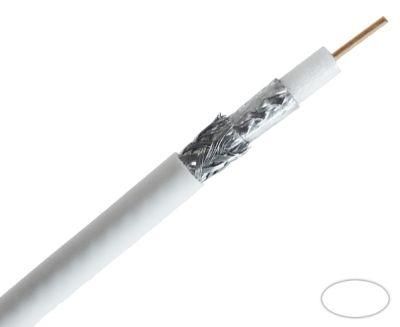

CATV Trunk Cable Rg11

Hangzhou Spring Electronics Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Coaxial Cable
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：RG11
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CCC
  • Transport Package：Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
  • Specification：Coaxial Cable
  • Trademark：OEM
  • Origin：Made in China
  • HS Code：8544200000
  • Production Capacity：310 Million Meters,Year

Description

Construction Parameters:  Inner Conductor0.064"/1.63mm/14AWG Copper Clad Steel  Dielectric0.280"/7.11mm Foamed PE(Gas Expanded Polyethylene)             Shield 10.287"/7.29mm Bonded Aluminum Polyproylene  Shield 2Aluminum braid wire 60% coverage    Shield 3Aluminum Laminated Tape(Non-bonded)  Shield 4Aluminum braid wire 40% coverage   Jacket0.407"±0.006"/10.34±0.15mm PE(Jelly Flooded For Underground)  Jacket Thickness0.037"/0.94mm  ApplicationFor Use in Longer CATV Run LengthsElectrical Characteristics:  Inner Conductor ResistanceThe Max. at 20ºC shall be <  87 Ω/km  <  26.53 Ω/1000ft  Capacitance52 ±3 pF/m    15.85 ±1 pF/ft  Impedance75 ± 3 Ω  Return loss between 5 and 1000MHz: > 22dB  Velocity of Propagation 0.85  Sparker Test (VAC)4Attenuation(20ºC):Frequency (MHZ)            Max Attenuation(dB/100ft)50.38 550.96 831.18 1871.75 2111.90 2502.05 3002.25 3502.42 4002.60 4502.75 5002.90 5503.04 6003.18 7503.65 8653.98 10004.35 Mechanical and Environmental Properties  Cable bend radius10 times the cable diameter  Operating Temp Range  (PVC)-20 ºC to 60 ºC  Cable diamensions0.41''±0.006''/10.39±0.15 mm  PVC Order Informations:  MarkingRG11 60% Bonded 40% Non.Bonded Jelly PE CATV COAXIAL CABLE ××× MT  Package500FT/Pull Box, 1000FT/Wooden Spool, Pallet  Delivery timeNormally 25 days after received the deposit.CATV Trunk Cable Rg11
CATV Trunk Cable Rg11
