Multi-Cores PVC Insulation Copper Wire Multi-Core Cable
B&T (Zhangzhou) Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Hook-up Wire
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：UL2464
- Wire Core Material：Copper
- Certification：ISO, RoHS, UL, Reach
- Model：UL2464
- Brand：Bort
- Transport Package：Coil
- Trademark：BORT
- Origin：China
- HS Code：8544492900
- Production Capacity：500000km,Per Year
Description
Basic Info.
Model NO. UL2464 Wire Core Material Copper Certification ISO, RoHS, UL, Reach Model UL2464 Brand Bort Transport Package Coil Trademark BORT Origin China HS Code 8544492900 Production Capacity 500000km/Per YearProduct Description

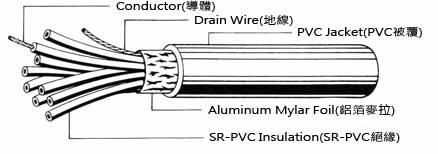

Multi-cores pvc insulation copper wire for auditory equipment cable
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer
| AWG/NO.OFCOND | No./mm | mm | m/n/d | mm | mm |
| 24×2C | 11/0.16 | 0.25 | 16/4/0.10 | 0.80 | 4.35 |
| 24×3C | 11/0.16 | 0.25 | 16/4/0.10 | 0.80 | 4.50 |
| 24×4C | 11/0.16 | 0.25 | 16/5/0.10 | 0.80 | 4.80 |
| 24×5C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.10 |
| 24×6C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.45 |
| 24×7C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.50 |
| 22×2C | 17/0.16 | 0.25 | 16/5/0.10 | 0.80 | 4.75 |
| 22×3C | 17/0.16 | 0.25 | 16/6/0.10 | 0.80 | 4.95 |
| 22×4C | 17/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.30 |
| 22×5C | 17/0.16 | 0.25 | 16/7/0.10 | 0.80 | 5.65 |
| 22×6C | 17/0.16 | 0.25 | 16/8/0.10 | 0.80 | 6.05 |
| 22×7C | 17/0.16 | 0.25 | 16/8/0.10 | 0.80 | 6.10 |
