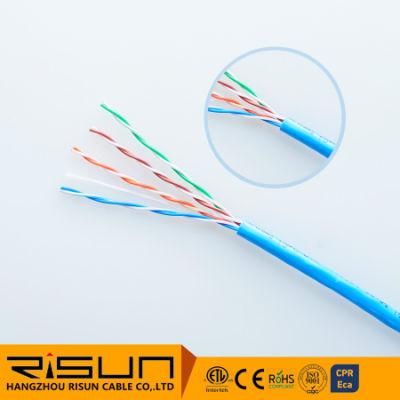

23AWG 4pairs FTP CAT6 with PVC Jacket 305m Package
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：FTP CAT6
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, ETL SGS CPR
- Model：FTP CAT6
- Brand：Risun or OEM
- Insulation：1.1 HDPE
- Filler：Yes
- Shield：Al,Pet Foil
- Drain：Yes
- UV, Jelly, Fr：Available
- Color：Multiple-Choice
- Transport Package：305m,Pull Box, 2boxes,CTN.
- Specification：ETL, RoHS, SGS, ISO9001
- Trademark：RISUN or OEM
- Origin：Hangzhou, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
Cable Construction
| Mechanical Properties | |
| Elongation | Min. 300% |
| Temperature Range | -20 up to +75° C |
| Tensile strength | Min. 1.68Kg/mm2 |
| Electrical Properties (at 20°C) | |
| Conductor Resistance | Max. 9.38 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Capacitance Unbalance | Max. 330pF/100m |
| Impedance | 100+/-15 ohm |
| Spark Test | 2000V |
| Velocity Propagation | 67% |
Attenuation | RL | Next | PS Next | |
| (MHz) | (db/100m) | (dB) | (dB) | (db/100m) |
| 1MHz | 2.0 | 23 | 74.3 | 71.8 |
| 4MHz | 3.8 | 23 | 65.3 | 61.2 |
| 10MHz | 6 | 23 | 59.3 | 53 |
| 16MHz | 7.6 | 23 | 56.2 | 48.4 |
| 20MHz | 8.5 | 23 | 54.8 | 46.5 |
| 31.2MHz | 10.7 | 23 | 51.9 | 41.3 |
| 62.5MHz | 15.1 | 23 | 47.4 | 31.5 |
| 100MHz | 19.1 | 23 | 44.3 | 24.1 |
| 125MHz | 21.3 | 21 | 42.8 | 20.5 |
| 155.5MHz | 23.8 | 21 | 41.4 | 16.6 |
| 175MHz | 25.3 | 21 | 40.7 | 13.9 |
| 200MHz | 27 | 21 | 39.8 | 10.8 |
| 250MHz | 32.6 | 19 | 38.3 | 5 |
| 300MHz | 35.7 | 37.1 | ||
| 400MHz | 41.2 | 35.3 | ||
| 450MHz | 42 | 34.5 | ||
