• Model NO.：FTP CAT6
• Certification：CE, ISO, RoHS, ETL SGS CPR
• Brand：Risun or OEM
• Insulation：1.1 HDPE
• Filler：Yes
• Shield：Al,Pet Foil
• Drain：Yes
• UV, Jelly, Fr：Available
• Color：Multiple-Choice
• Transport Package：305m,Pull Box, 2boxes,CTN.
• Specification：ETL, RoHS, SGS, ISO9001
• Trademark：RISUN or OEM
• Origin：Hangzhou, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

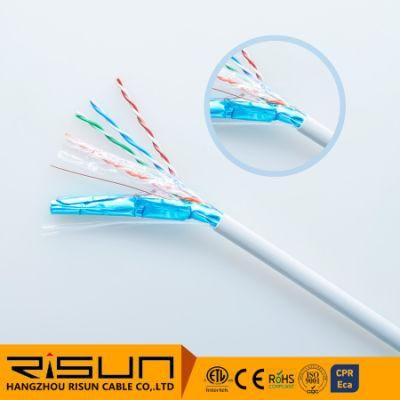

Cable ConstructionConductorSolid Bare Copper 23AWGInsulation1.1+/-0.05mmHDPECores / Pairs8/4FillerPlastic fillerDrain Wire26AWG Tinned CopperShieldPolyester Tape/ Al FoilOuter Jacket7.30mm+/-0.1mm PVC,PE,LSOH.OptionsJelly Compound, Jacket: UV, FR, RoHS complied

Mechanical Properties
Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile strength	Min. 1.68Kg/mm2



Electrical Properties (at 20°C)
Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Capacitance Unbalance	Max. 330pF/100m
Impedance	100+/-15 ohm
Spark Test	2000V
Velocity Propagation	67%



Attenuation	RL	Next	PS Next
(MHz)	(db/100m)	(dB)	(dB)	(db/100m)
1MHz	2.0	23	74.3	71.8
4MHz	3.8	23	65.3	61.2
10MHz	6	23	59.3	53
16MHz	7.6	23	56.2	48.4
20MHz	8.5	23	54.8	46.5
31.2MHz	10.7	23	51.9	41.3
62.5MHz	15.1	23	47.4	31.5
100MHz	19.1	23	44.3	24.1
125MHz	21.3	21	42.8	20.5
155.5MHz	23.8	21	41.4	16.6
175MHz	25.3	21	40.7	13.9
200MHz	27	21	39.8	10.8
250MHz	32.6	19	38.3	5
300MHz	35.7		37.1
400MHz	41.2		35.3
450MHz	42		34.5

FAQ

Q1: What is the MOQ order ?
A1: MOQ is 10000meters.
If you have different and special demands, please contact with us, we'll provide the best solutions to you.

Q2: How to shipping? Is there cheap shipping cost to import to our country ?
A2:The best choice is shipping By sea. Because network cable is very heavy, it's too expensive by air.

By Sea: If you have freight forwarder, they can handle shipping for you. If you don't have it, we can provide the cheapest shipping cost to you, or send our freight forwarder information to you contact directly.

Q3. How to know recycle and new jacket materials ?
A3: Except for conductor price, the jacket materials is the main factors affecting price. Some supplier's price is crazy, because they use recycle materials in production.
Recycle material: The jacket will have bubble, especially tenacity is very bad, it's easy to tear. So the cable's lifetime is short, fire retardant & cold resistance is bad too.
New material: Tenacity is very good, it's hard to tear, and with good fire retardant & cold resistance.

Q4: Can you make OEM ?
Yes, we can supply OEM service to our international clients. It can be marking your brand or any printing that you want. Except for international famous brand.
