• Model NO.：UL5107
• Material Shape：Round Wire
• Range of Application：High Temperature Element
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Fongming
• Name：UL5107 Mica Wire
• Rated Voltage：600V
• Max Temperature：+450c
• Color：Tan, Natural
• Sample：3 Meters Free, 3 Days
• Customize：Available
• MOQ：1000meters
• Lead Time：5-7 Days, Depends on Qty
• Standard：UL758, UL1581
• Delivery：by Courier, Air, Sea
• Transport Package：Cartons and Pallet
• Specification：26awg~ 4,0awg
• Trademark：FONGMING
• Origin：Jiangsu, China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. UL5107 Material Shape Round Wire Range of Application High Temperature Element Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Fongming Name UL5107 Mica Wire Rated Voltage 600V Max Temperature +450c Color Tan/ Natural Sample 3 Meters Free, 3 Days Customize Available MOQ 1000meters Lead Time 5-7 Days, Depends on Qty Standard UL758, UL1581 Delivery by Courier, Air, Sea Transport Package Cartons and Pallet Specification 26awg~ 4/0awg Trademark FONGMING Origin Jiangsu, China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

Mica Glass Serve 2/0AWG UL5107 Heating Element MGT Electric Wire

Product Description

RATINGS/ APPROVALS
450c-600V-UL5107

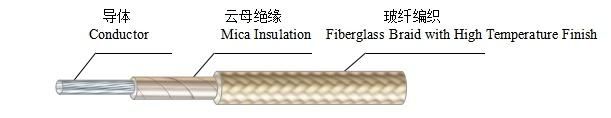

STRUCTURE
Conductors: 3% Nickel Plated Copper, 27% Nickel Plated Copper, Pure Nickel Wire;
Size: 2/0 AWG;
Color: Tan/ Natural / Required;
Insulation: Mica glasss composite;
Sheath: Fiber glass braid with high temperature with finish;
Surface Print: UL Standard Printing

APPLICATIONS
UL5107 fiber cable and electrical wire
Be popularly used to high temperature conditions in Electron, Home Appliance, Lamp, Appliance, etc.

Specification


Size AWG	Conductor Structure	Insulation Thickness (mm)	Braid Thickness (mm)	Diameter (mm)
2/0	565/0.39	0.89	0.51	14.5±0.5

Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.

Specification

Size AWG	Conductor Structure	Insulation Thickness (mm)	Braid Thickness (mm)	Diameter (mm)
24	7/0.2	≥0.38	≥0.18	1.7±0.2
22	7/0.254			1.9±0.2
20	10/0.254			2.1±0.2
18	16/0.254			2.3±0.2
16	26/0.254			2.7±0.2
14	41/0.254			3.0±0.2
12	65/0.254			3.7±0.2
10	103/0.254	≥0.51	≥0.38	4.8±0.2
8	163/0.254			6.0±0.2
6	266/0.254			6.5±0.2
4	420/0.254			7.8±0.2

Certificates


Transport & Payment



Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.
