High Quality K Type FEP Insulation FEP Jacket Compensating Cable for Thermocouple
Yangzhou Fongming Cable Factory- Type:Insulated
- Conductor Type:Stranded
- Application:Heating, Instrument Thermocouple
- Conductor Material:Fe, Cu-Ni
- Sheath Material:FEP
- Insulation Material:FEP
Base Info
- Model NO.:KX-FF
- Material Shape:Round Wire
- Range of Application:Temperature Measuring
- Certification:ISO9001, CE, CCC, RoHS, VDE, According to The Customers′ Requirement
- Brand:Fongming
- Name:Thermocouple Wire
- Model:Kx-F-F Type
- Temperature:200deg.C
- Sample:5 Meters Free
- MOQ:1000meters
- Customize:Available
- Lead Time:7 Days
- Conductor:Positive Ni-Cr, Negativeni-Si
- Insulation:FEP
- Jacket:FEP
- Transport Package:Cartons and Pallet
- Specification:2*26-2*14AWG
- Trademark:FONGMING
- Origin:Yangzhou China
- HS Code:8544492100
- Production Capacity:100000000meters Per Month
Description
Basic Info.
Model NO. KX-FF Material Shape Round Wire Range of Application Temperature Measuring Certification ISO9001, CE, CCC, RoHS, VDE, According to The Customers′ Requirement Brand Fongming Name Thermocouple Wire Model Kx-F-F Type Temperature 200deg.C Sample 5 Meters Free MOQ 1000meters Customize Available Lead Time 7 Days Conductor Positive Ni-Cr, Negativeni-Si Insulation FEP Jacket FEP Transport Package Cartons and Pallet Specification 2*26-2*14AWG Trademark FONGMING Origin Yangzhou China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
high quality K Type FEP insulation FEP jacket compensating cable for thermocoupleProduct Description
Name:Thermocouple wire
Model:KX-F-F Type
Size:2*26-2*14AWG

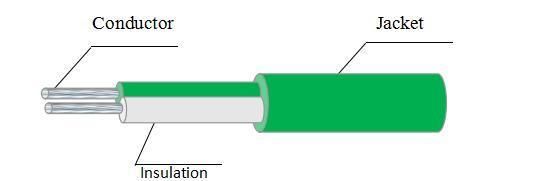

STRUCTRUE
Conductor: Positive Ni-Cr, NegativeNi-Si
Insulation: FEP
Color: P: Green,N:White
Jacket: FEP
Model
Specification
Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
2*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.3 | 1.5±0.2*2.4±0.2 |
2*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.3 | 1.6±0.2*2.6±0.2 |
2*22 | 7/0.254 | 0.76 | 0.2 | 1.2 | 0.3 | 1.8±0.2*3.0±0.2 |
2*20 | 7/0.32 | 0.96 | 0.2 | 1.4 | 0.3 | 2.0±0.2*3.4±0.2 |
2*18 | 7/0.39 | 1.17 | 0.25 | 1.7 | 0.4 | 2.5±0.2*4.2±0.2 |
2*16 | 19/0.3 | 1.5 | 0.25 | 2.0 | 0.4 | 2.8±0.2*4.8±0.2 |
2*14 | 19/0.37 | 1.85 | 0.25 | 2.4 | 0.4 | 3.2±0.2*5.6±0.2 |
Certificates:
UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.
Packaging & Shipping
1. Package length | 200meres 305meter 500meter As customers requirement |
2. Package method | Rolls, spool or coil, Pallets if need. |
3: Shipping port | Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port |
Company Information
Factory Size (Sq.meters): | 25,000-30,000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
Number of Production Lines: | 7 |
Number of R&D Staff: | 21 - 30 People |
Number of QC Staff: | 21 - 30 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
Hot Products
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
