• Model NO.：JX-GSIGSI
• Material Shape：Round Wire
• Range of Application：Hook up
• Certification：ISO9001, CE, UL, CCC
• Brand：Fongming
• Name：Thermocouple Wire
• Size：2*26-2*14AWG
• Color：as Requirements
• Model No：Jx-Gsi-Gsi
• MOQ：1000 Meters
• Lead Time：7 Days
• Conductor：Fe, Cu-Ni
• Insulation：High Silica Braid and Silicone Resin Coating
• Jacket：High Silica Braid and Silicone Resin Coating
• Transport Package：Carton Packing
• Specification：2*26-2*14AWG
• Trademark：FONGMING
• Origin：Yangzhou, Jiangsu Province, China
• HS Code：8544492100
• Production Capacity：10000000m Per Year

Basic Info.

Model NO. JX-GSIGSI Material Shape Round Wire Range of Application Hook up Certification ISO9001, CE, UL, CCC Brand Fongming Name Thermocouple Wire Size 2*26-2*14AWG Color as Requirements Model No Jx-Gsi-Gsi MOQ 1000 Meters Lead Time 7 Days Conductor Fe, Cu-Ni Insulation High Silica Braid and Silicone Resin Coating Jacket High Silica Braid and Silicone Resin Coating Transport Package Carton Packing Specification 2*26-2*14AWG Trademark FONGMING Origin Yangzhou, Jiangsu Province, China HS Code 8544492100 Production Capacity 10000000m Per Year

Product Description

Factory price high silica yarn braiding J Type  insulated thermocouple compensation cable

Description
Name:Thermocouple wire
Model:JX-GSi-GSiType
Size:2*26-2*14AWG

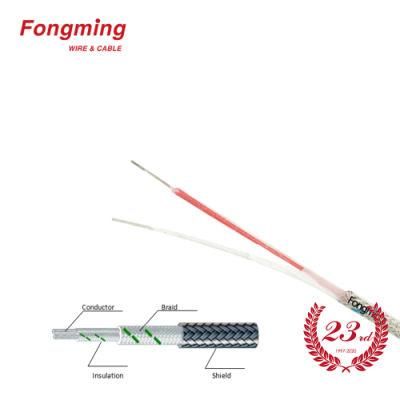

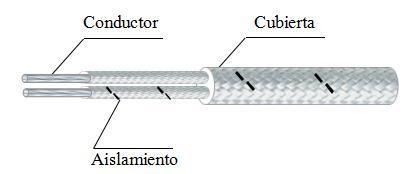

Structure
Conductor:Fe,Cu-Ni
Insulation:High Silica Braid  and Silicone Resin Coating
Color:Positive White With Black Stripe Negative White
Jacket:High Silica Braid and Silicone Resin Coating
Color:White White With Black Stripe

Model

Specification

Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3±0.2*2.0±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4±0.2*2.2±0.2
2*22	7/0.25	0.75	0.2	1.2	0.2	1.6±0.2 *2.6±0.2
2*20	11/0.25	0.96	0.2	1.4	0.2	1.8±0.2*3.0±0.2
2*18	17/0.25	1.19	0.2	1.6	0.2	2.0±0.2 *3.4±0.2
2*16	27/0.25	1.50	0.2	1.9	0.2	2.3±0.2 *4.0±0.2
2*14	42/0.25	1.87	0.2	2.3	0.2	2.7±0.2 *4.8±0.2

Certificates:


UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.



Packaging & Shipping



1. Package length	200meres 305meter 500meter As customers requirement
2. Package method	Rolls, spool or coil, Pallets if need.
3: Shipping port	Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port

Company Information

Factory Size (Sq.meters):	25,000-30,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	7
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

Hot Products



FAQ
 1. Why the price is so low?
You are ordering directly from the factory.

2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3.Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?
Yes. customization is welcome .
