• Model NO.：KX-GSI-GSI
• Material Shape：Round Wire
• Range of Application：High Temperature Heating Electrical Appliance
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE, CSA
• Brand：Fongming
• Name：Thermocouple Wire
• Model：Kx-Gsi-Gsi
• Size：2*26-2*14AWG
• Color：Required
• Conductor：Ni-Cr ,Ni-Si
• Insulation：Fiberglass Braided
• Jacket：High Silica Braid and Silicone Resin Coating
• Customize：Available
• MOQ：1000 Meters
• Lead Time：5-7 Days
• Transport Package：Carton Packing
• Specification：2*26-2*14AWG
• Trademark：FONGMING
• Origin：Yangzhou, Jiangsu Province, China
• HS Code：8544492100
• Production Capacity：10000000m Per Year

Basic Info.

Model NO. KX-GSI-GSI Material Shape Round Wire Range of Application High Temperature Heating Electrical Appliance Certification ISO9001, CE, UL, CCC, RoHS, VDE, CSA Brand Fongming Name Thermocouple Wire Model Kx-Gsi-Gsi Size 2*26-2*14AWG Color Required Conductor Ni-Cr ,Ni-Si Insulation Fiberglass Braided Jacket High Silica Braid and Silicone Resin Coating Customize Available MOQ 1000 Meters Lead Time 5-7 Days Transport Package Carton Packing Specification 2*26-2*14AWG Trademark FONGMING Origin Yangzhou, Jiangsu Province, China HS Code 8544492100 Production Capacity 10000000m Per Year

Product Description

High quality K Type Fiberglass braided Insulation high silica yarn braid jacket Thermocouple Compensation Cable

Description
Name:Thermocouple wire
Model:KX-GSi-GSi Type
Size:2*26-2*14AWG

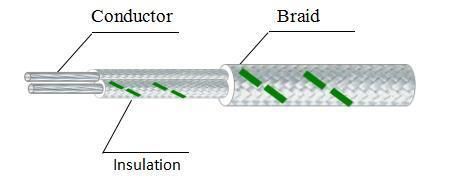

Structure
Conductor:Ni-Cr ,Ni-Si
Insulation:High Silica Braid and Silicone Resin Coating
Color:Positive White With Green Stripe Negative White
Jacket:High Silica Braid and Silicone Resin Coating
Color:White White With Green Stripe

Model


Application
For use as high temperature lead wire for internal wiring of appliances, electronic equipment, and lighting fixtures.

Specification

Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3±0.2*2.0±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4±0.2*2.2±0.2
2*22	7/0.25	0.75	0.2	1.2	0.2	1.6±0.2 *2.6±0.2
2*20	11/0.25	0.96	0.2	1.4	0.2	1.8±0.2 *3.0±0.2
2*18	17/0.25	1.19	0.2	1.6	0.2	2.0±0.2 *3.4±0.2
2*16	27/0.25	1.50	0.2	1.9	0.2	2.3 ±0.2*4.0±0.2
2*14	42/0.25	1.87	0.2	2.3	0.2	2.7 ±0.2*4.8 ±0.2

Certificates:


UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.



Packaging & Shipping



1. Package length	200meres 305meter 500meter As customers requirement
2. Package method	Rolls, spool or coil, Pallets if need.
3: Shipping port	Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port

Company Information

Factory Size (Sq.meters):	25,000-30,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	7
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

Hot Products



FAQ
 1. Why the price is so low?
You are ordering directly from the factory.

2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3.Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?
Yes. customization is welcome .
