High Performance Fiberglass Insulation Fiberglass Jacket Type K Thermocouple Compensation Cable
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Ni-Cr, Ni-Si
- Application：Heating, Instrument Thermocouple
- Conductor Material：Ni-Cr, Ni-Si
- Sheath Material：Fiberglass
- Insulation Material：Fiberglass
Base Info
- Model NO.：kx-gg
- Material Shape：Round Wire
- Range of Application：Heating Element
- Certification：ISO9001, CE, CCC, RoHS, VDE, CQC
- Brand：Fongming
- Name：Thermocouple Wire
- Model：Kx-G-G Type
- Size：2*26-2*14AWG
- Conductor：Ni-Cr, Ni-Si
- Insulation：Fiberglass Braid and Silicone Resin Coating
- Jacket：Fiberglass Braid and Silicone Resin Coating
- Lead Time：7 Days
- MOQ：1000 Meters
- Transport Package：Cartons and Pallet
- Specification：AS CUSTOMER REQUIREMENT
- Trademark：FONGMING
- Origin：Yangzhou China
- HS Code：8544492100
- Production Capacity：100000000meters Per Month
Description
Basic Info.
Model NO. kx-gg Material Shape Round Wire Range of Application Heating Element Certification ISO9001, CE, CCC, RoHS, VDE, CQC Brand Fongming Name Thermocouple Wire Model Kx-G-G Type Size 2*26-2*14AWG Conductor Ni-Cr, Ni-Si Insulation Fiberglass Braid and Silicone Resin Coating Jacket Fiberglass Braid and Silicone Resin Coating Lead Time 7 Days MOQ 1000 Meters Transport Package Cartons and Pallet Specification AS CUSTOMER REQUIREMENT Trademark FONGMING Origin Yangzhou China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
high performance fiberglass insulation fiberglass jacket Type K thermocouple compensation cableDescription
Name:Thermocouple wire
Model:KX-G-G Type
Size:2*26-2*14AWG

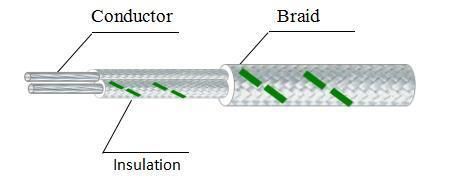

Structure
Conductor:Ni-Cr ,Ni-Si
Insulation:Fiberglass Braid and Silicone Resin Coating
Color:Positive White With Green Stripe Negative White
Jacket:Fiberglass Braid and Silicone Resin Coating
Color:White White With Green Stripe
Model
Specification
| Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | O.D. (mm) |
| 2*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.2 | 1.3±0.2*2.0±0.2 |
| 2*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.2 | 1.4±0.2*2.2±0.2 |
| 2*22 | 7/0.25 | 0.75 | 0.2 | 1.2 | 0.2 | 1.6±0.2 *2.6±0.2 |
| 2*20 | 11/0.25 | 0.96 | 0.2 | 1.4 | 0.2 | 1.8±0.2 *3.0±0.2 |
| 2*18 | 17/0.25 | 1.19 | 0.2 | 1.6 | 0.2 | 2.0±0.2 *3.4±0.2 |
| 2*16 | 27/0.25 | 1.50 | 0.2 | 1.9 | 0.2 | 2.3 ±0.2*4.0±0.2 |
| 2*14 | 42/0.25 | 1.87 | 0.2 | 2.3 | 0.2 | 2.7 ±0.2*4.8 ±0.2 |
UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.
Packaging & Shipping
| 1. Package length | 200meres 305meter 500meter As customers requirement |
| 2. Package method | Rolls, spool or coil, Pallets if need. |
| 3: Shipping port | Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port |
Company Information
| Factory Size (Sq.meters): | 25,000-30,000 square meters |
| Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
| Number of Production Lines: | 7 |
| Number of R&D Staff: | 21 - 30 People |
| Number of QC Staff: | 21 - 30 People |
| Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
