Transformer Frequency Cables Lsoh Copper Core XLPE Insulation Copper Wire Braided Shielded Convert Used Power Cables

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Underground
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：XLPE

Base Info

  • Model NO.：BPYJVP
  • Material Shape：Round Wire
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand：Fengda
  • Transport Package：Wooden Box Packing or Pallet Shipping Containers
  • Specification：US $0.5-5, Meter
  • Trademark：FengDa
  • Origin：Tianjin, China
  • HS Code：8544492100
  • Production Capacity：5, 000, 000km,Year

Description

Basic Info.

Model NO. BPYJVP Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Fengda Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.5-5/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/Year

Product Description

Application
Mainly used in power transmission between power supply and frequency converter.

Power cables for rated voltage 0.6/1kV variable frequency motor is fit for AC rated voltage 0.6/1kV frequency conversion control system as the main loop of the power supply cable or connecting cable.

Flame retardant frequency conversion power cable except having features of ordinary frequency cable,also has not easy to catch fire or fire off combustion limited within a certain range of features.

Low smoke zero halogen flame retardant frequency conversion power cables in addition to a common frequency cable, the features of ordinary flame retardant frequency cable, also has the cable fire when no halogen acid gas release, less smoke, less corrosive gases, flame retardant performance is good wait for a characteristic.

Transformer Frequency Cables Lsoh Copper Core XLPE Insulation Copper Wire Braided Shielded Convert Used Power Cables

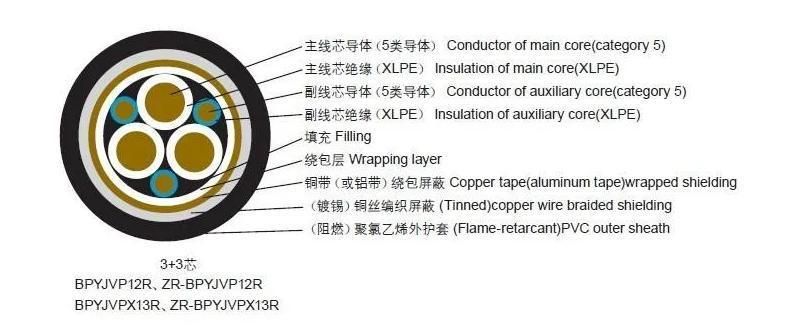

Types and Despription:

BPYJVP: XLPE insulated PVC sheathed woven copper wire shield converter used main circuit cable

BPYJVP1: XLPE insulated PVC sheathed copper wire wind shield converter used main circuit cable

BPYJVP1-2: XLPE insulated PVC sheathed copper wire wind copper tape wrapped double shield converter used main circuit cable

BPYJVP3:XLPE insulated PVC sheathed Al/plastic compound tape shield converter used main circuit cable

ZR-BPYJVP:XLPE insulated PVC sheathed woven copper wire shield flame-retardant converter used main circuit cable

ZR-BPYJVP1-2:XLPE insulated PVC sheathed copper wire wind copper tape wrapped double shield flame-retardant converter used main circuit cable

ZR-BPYJVP3:XLPE insulated PVC sheathed Al/plastic compound tape shield flame-retardant converter used main circuit cable

WDZ-BPYJYP;XLPE insulated PO sheathed woven copper wire shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP2;XLPE insulated PO sheathed copper tape shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP1; XLPE insulated PO sheathed copper wire wind shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP1-2;XLPE insulated PO sheathed copper wire wind copper tape wrapped double shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP3:XLPE insulated PO sheathed Al/plastic compound tape shield low-smoke halogen-free flame-retardant converter used main circuit cable


Transformer Frequency Cables Lsoh Copper Core XLPE Insulation Copper Wire Braided Shielded Convert Used Power Cables
