Feiya Electric Wire Low Voltage RV Cable Single Core Soft Conductor Cable Without Sheath PVC Cable Eletrical Wire

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：in The Gypsum or Under The Pipes, in Machines
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：H05V-K,H07V-K
  • Material Shape：Round Wire
  • Range of Application：in The Gypsum or Under The Pipes, in Machines
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand：Feiya
  • Transport Package：Wooden Box Packing or Pallet Shipping Containers
  • Specification：US $0.1-0.99, Meter
  • Trademark：FengDa
  • Origin：Tianjin, China
  • HS Code：8544492100
  • Production Capacity：5, 000, 000km,Year

Description

Basic Info.

Model NO. H05V-K/H07V-K Material Shape Round Wire Range of Application in The Gypsum or Under The Pipes, in Machines Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Feiya Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.1-0.99/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/Year

Product Description

Feiya Electric Wire Low Voltage RV Cable Single Core Soft Conductor Cable Without Sheath PVC Cable Eletrical Wire
Product Description:

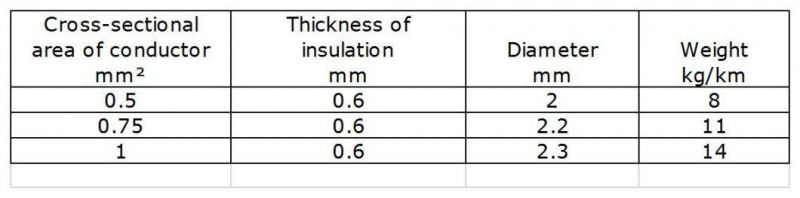

Type: H05V-K(60227 IEC 06)

Application: Suitable for protected fixtures within the equipment and within
the lighting or on the lighting, but only for devices in the gypsum or under the
pipe on the signal line.

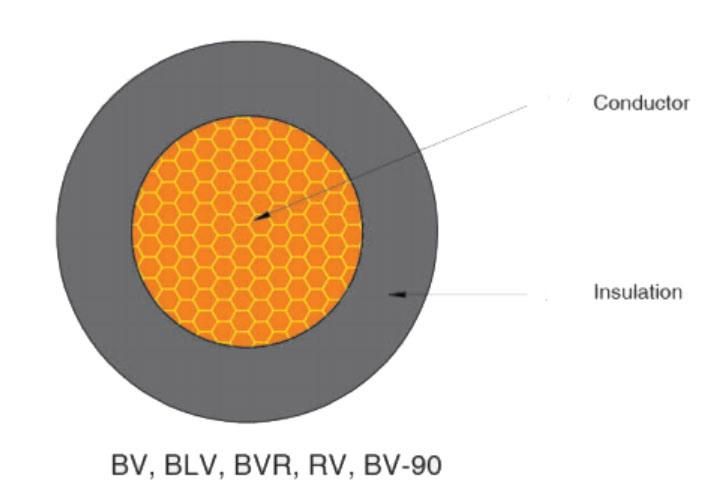

Conductor: finely stranded flexible bare copper
Insulation: PVC
Colour:Red, Black, Blue, Brown, Grey, White, Green/Yellow, Yellow, Green
Rate Voltage: 300/500V
Standard: IEC 60227- 3 DIN VDE 0281-3
DIN EN 60228 Class 5 (construction)
Test voltage: 2000V
Temperature range: +5°C till +70°C
Bending radius: Min 4 times diameter

Feiya Electric Wire Low Voltage RV Cable Single Core Soft Conductor Cable Without Sheath PVC Cable Eletrical Wire

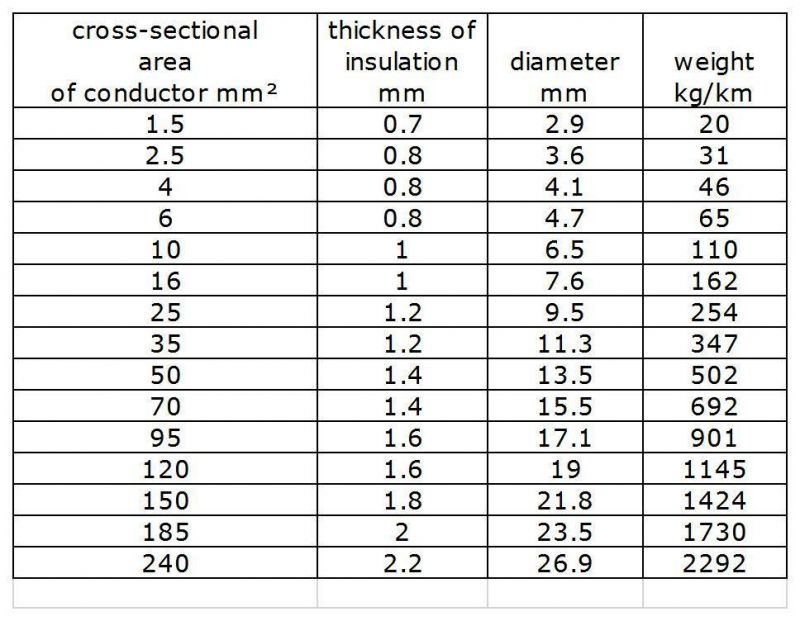

Type: H07V-K (60227 IEC 02)

Application: For indoor fixed installations in dry locations, in electrical
equipment, switchboards and distributors. Should be installed in surface
mounted or embedded conduits, for protected fixed installations in or on lighting
fittings. Suitable for installations in machines for nominal voltages up to 1.000 V
alternating current or up to 750 V to earth direct current. It cannot be used for
installations under the wall surface.
Conductor:Finely stranded flexible bare cooper (acc. DIN EN 60228 Class 5)
Insulation: PVC
Colour: Red, Black, Blue, Brown, Grey, White, Green/Yellow, Yellow, Green
Rate voltage: 450/750V
Standard:IEC 60227-3 DIN VDE 0821-3
Test voltage:2500v
Temperature range: +5°C till +70°C
Bending radius: Min 4 times diameter


Feiya Electric Wire Low Voltage RV Cable Single Core Soft Conductor Cable Without Sheath PVC Cable Eletrical Wire
