• Insulation：Fpe
• Conductor Diameter：23 AWG
• Shield：Aluminum Shield
• Jacket：LSZH
• Transport Package：305m,Wooden Drum
• Origin：Hangzhou, Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Insulation Fpe Conductor Diameter 23 AWG Shield Aluminum Shield Jacket LSZH Transport Package 305m/Wooden Drum Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

Product Description

 Category 6A U/FTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet. The individually shielded pairs ensure maximum transmission, free from the problems of NEXT and alien crosstalk.

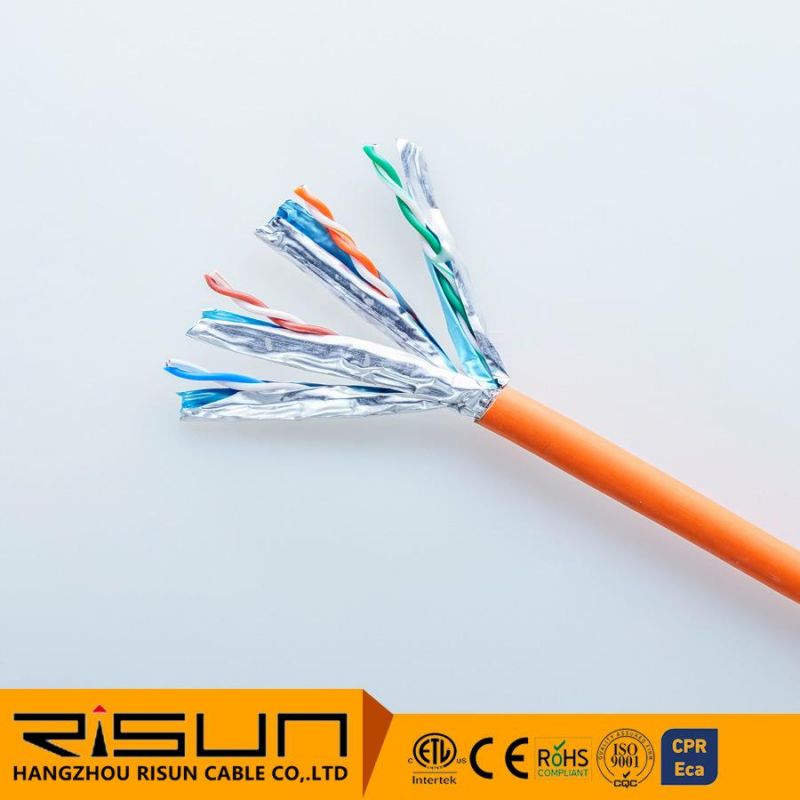

Configuration
1. Conductor: 0.57±0.01mm(23AWG) Bare copper
2. Insulation: 1.350±0.05mm FPE
3. Shield: Al Foil
4. Drain wire: 0.4mmTC
5. Ripcord
6. Sheath: LSZH

Electrical Specifications

dc Resistance, maximum	7.61 ohms/100 m | 2.32 ohms/100 ft
Mutual Capacitance at Frequency	4.2 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	79 %
Operating Frequency, maximum	500 MHz

Packing

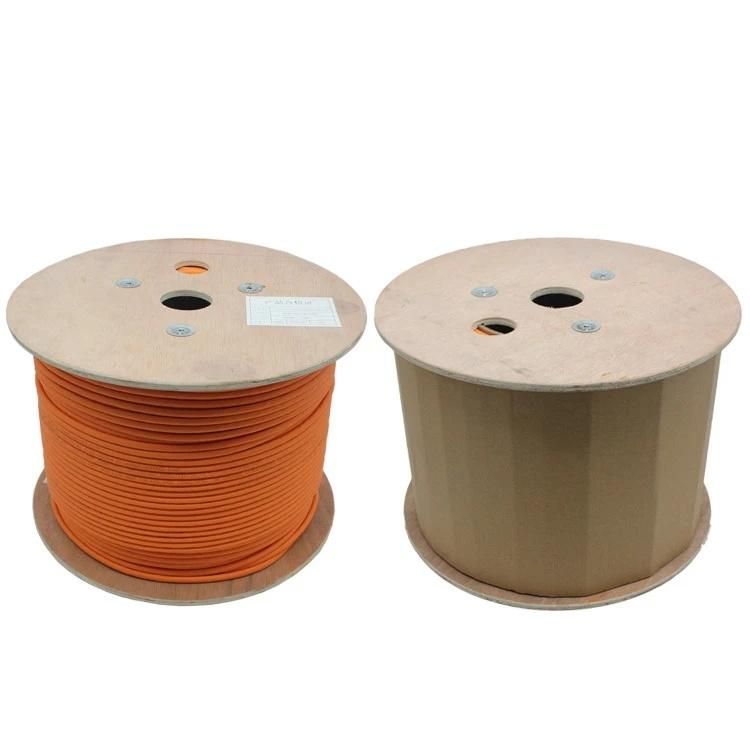

1) packing lengths: 305m/wooden drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.





Company Profile
Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and  telephone cable in china. 95% of our goods for the export market. 14 years of experience in this field makes us very familiar with export handling.In the past 14 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.

We are committed to providing you with high-quality and competitive products.We will be your trusted partner.


process of production
FAQ:

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Mass production time needs 20-25 days.

Q3. Do you have any MOQ limit for order?
A: Normally, 10kms per one specification and one color.

Q4. How do you ship the goods and how long does it take to arrive?
A: Normally by sea shipping. (sample order also available by air or courier)

Q5. How to proceed an order for cables?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q6. Is it OK to print my logo on cables?
A: Yes. Please inform us formally before our production.
