- Model NO.：SFTP Cat 5e
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Model：Sftpcat5e
- Brand：Hanli
- Transport Package：305m
- Specification：24AWG
- Trademark：hanli
- Origin：Zhejiang
- HS Code：8544491100
- Production Capacity：3000000m,Month

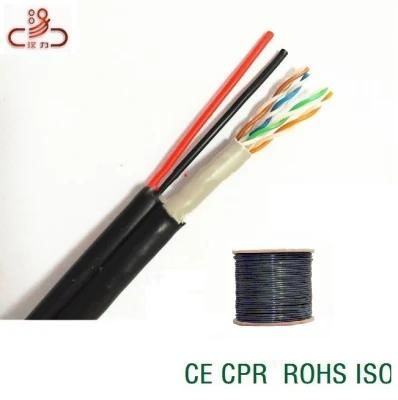

| Product Name/Code: SFTP Cat 5e Cables | Performance |
| Application: | Frequency | RL | Attenuation | NEXT | PSNEXT |
| 100 Base-T4 | | (MHz) | (dB) | (dB/100m) | | |
| 100 Base-TX | | | min. | max | min (dB) | min (dB) |
| 100VG - AnyLAN | | 0.722 | 22.60 | 1.82 | 67.00 | 64 |
| 1000 Base-T (Gigabit Ethernet) | | 1.000 | 23.10 | 2.00 | 65.30 | 62.3 |
| 155 Mbps ATM | | 4.000 | 23.00 | 4.10 | 56.30 | 53.3 |
| 622 Mbps AT | | 8.000 | 24.50 | 5.80 | 51.80 | 48.8 |
| Reference Standard | 10.00 | 25.00 | 6.50 | 50.30 | 47.3 |
| EIA/TIA 568B & ISO/IEC 11801 | 16.00 | 25.00 | 8.20 | 47.30 | 44.3 |
| Cable Construction | 20.00 | 25.00 | 9.30 | 45.80 | 42.8 |
| Conductor | Solid CCA | 25.00 | 24.20 | 10.23 | 44.30 | 41.3 |
| AWG | 24 | 31.25 | 23.30 | 11.71 | 42.90 | 39.9 |
| Conductor Diameter(mm) | 0.50 | 62.50 | 20.70 | 17.25 | 38.40 | 35.4 |
| Insulation | Solid PE | 100.00 | 19.24 | 22.00 | 35.30 | 32.3 |
| | | | | |
| Average Thickness (mm) | 0.2 | Frequency | ELFEXT | PSELFEXT | | ACR |
| Insulation Diameter(mm) | 1.00 | (MHz) | | | | |
| Drain wire | CCA | | min (dB) | min (dB) | | |
| AL FOIL | Aluminium/PET foil | 0.722 | 66.00 | 63.00 | | 65.00 |
| 100% | 0.15 | 1.000 | 63.8 | 60.8 | | 63.30 |
| Braid | 60/AL-MG | 4.000 | 51.7 | 48.7 | | 52.20 |
| Copper Wire Braid | Overall | 8.000 | 45.7 | 42.7 | | 46.00 |
| Sheathing | PVC /FRPVC | 10.00 | 43.8 | 40.8 | | 43.80 |
| Thickness(mm) | 1.4 | 16.00 | 39.7 | 36.7 | | 39.10 |
| Diameter(mm) | 6.0-7.0 | 20.00 | 37.7 | 34.7 | | 36.50 |
| 25.00 | 35.8 | 32.8 | | 33.90 |
| Core Identificatin/Color Code | According to customer request | 31.25 | 33.9 | 30.9 | | 31.20 |
| Bending Radius | 10xOverall Diameter | 62.50 | 27.8 | 24.8 | | 21.40 |
| | | 100.00 | 23.8 | 20.8 | | 13.30 |
| | | | | | | |
| Fire Performance | Electrical Performance |
Flame propagation Test to IEC 60332-1(FRPVC&LOSH)
Flame Propagation Test to IEC 60332-1 IEC 60332-3(LSFROH) | Max.Conductor DC Resistance at 20 ºC(Ω/Km) | <93.8 |
| Operating Temperature ºC | 70 |
| Velocity of propagation | 68% |
| Impedance(ohm) | | | 100±15 |
