- Model NO.：Outdoor CAT6+Power Network Cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Model：Utpcat6
- Brand：Hanli
- Transport Package：305m
- Specification：23AWG
- Trademark：hanli
- Origin：Zhejiang
- HS Code：8544491100
- Production Capacity：2000000m,Month
| UTP CAT 6 CABLE |
| Product Name/Code : UTP Cat 6 PVC | Performance |
| Frequency | RL | Attenuation | NEXT | PSNEXT |
| Application | (MHz) | (dB) | (dB/100m) | | |
| 100 Base-T4 | | | min. | max | (dB) | |
| 100 Base-TX | | 1.000 | 20.00 | 2.00 | 74.30 | 72.30 |
| 100VG - AnyLAN | | 4.000 | 23.00 | 3.80 | 65.30 | 63.30 |
| 1000 Base-T (Gigabit Ethernet) | 8.000 | 24.50 | 5.30 | 60.80 | 58.80 |
| 155 Mbps ATM | | 10.00 | 25.00 | 6.00 | 59.30 | 57.30 |
| 622 Mbps AT | | 16.00 | 25.00 | 7.60 | 56.20 | 54.20 |
| Reference Standard | 20.00 | 25.00 | 8.50 | 54.80 | 52.80 |
| EIA/TIA 568B & ISO/IEC 11801 | 25.00 | 24.30 | 9.50 | 53.30 | 51.30 |
| Cable Construction | 31.25 | 23.60 | 10.70 | 51.90 | 49.90 |
| Conductor | Solid Bare Copper | 62.50 | 21.50 | 15.40 | 47.40 | 45.40 |
| AWG | 23 | 100.00 | 20.10 | 19.80 | 44.30 | 42.30 |
| Conductor Diameter(mm) | 0.574 | 200.00 | 18.00 | 29.00 | 39.80 | 37.80 |
| 250.00 | 17.30 | 32.80 | 38.30 | 36.30 |
| Insulation | Solid PE | Frequency | ELFEXT | PSELFEXT | | ACR |
| Average Thickness(mm) | 0.2 | (MHz) | | | |
| Insulation Diameter(mm) | 0.95 | | (dB) | (dB) | | (dB) |
| | | 1.000 | 67.80 | 64.80 | | 72.30 |
| Sheathing | PVC/FRPVC | 4.000 | 55.80 | 52.80 | | 61.50 |
| Thickness(mm) | 1.1 | 8.000 | 49.70 | 46.70 | | 55.50 |
| Diameter(mm) | 6.1 | 10.00 | 47.80 | 44.80 | | 53.30 |
| | | 16.00 | 43.70 | 40.70 | | 48.60 |
| Core Identification/Color Code | According to customer request | 20.00 | 41.80 | 38.80 | | 46.30 |
| Bending Radius | 6xOverall Diameter | 25.00 | 39.80 | 36.80 | | 43.80 |
| | | 31.25 | 37.90 | 34.90 | | 41.20 |
| | | 62.50 | 31.90 | 28.90 | | 32.00 |
| Fire Performance | 100.00 | 27.80 | 24.80 | | 24.50 |
Flame Propagation Test to IEC 60332-Part-1(PVC)
Flame Propagation Test to IEC 60332 Part 1 and Part 3
(FRPVC) | 200.00 | 21.80 | 18.80 | | 10.80 |
| 250.00 | 19.80 | 16.80 | | 5.50 |
| Electrical Performance |
| Max.Conductor DC Resistance at 20 ºC(Ω/Km) | < 93.8 |
| Operating Temperature( ºC ) | 70 |
| Velocity of propagation | 74% |
| Impedance(ohm) | 100 ±15 |
| |

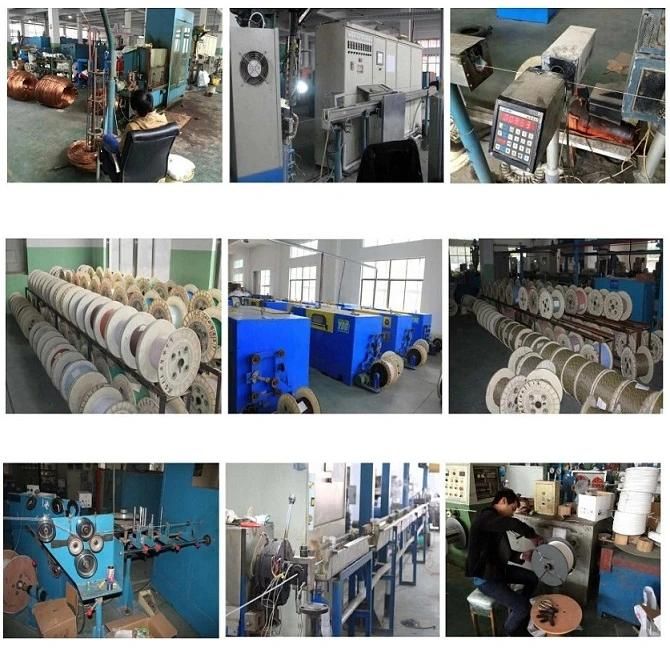

Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
