• Model NO.：Underground Power Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, UL, Kema
• Model：Underground Cable
• Brand：Yifang
• Cores Number：Single Core , Three Core
• Standards：IEC, DIN, Icea, BS, etc
• Insulation：XLPE , Tr-XLPE
• Jacket Color：Black
• Conductor：Annealed Copper Wire
• Metal Screen：Copper Tape

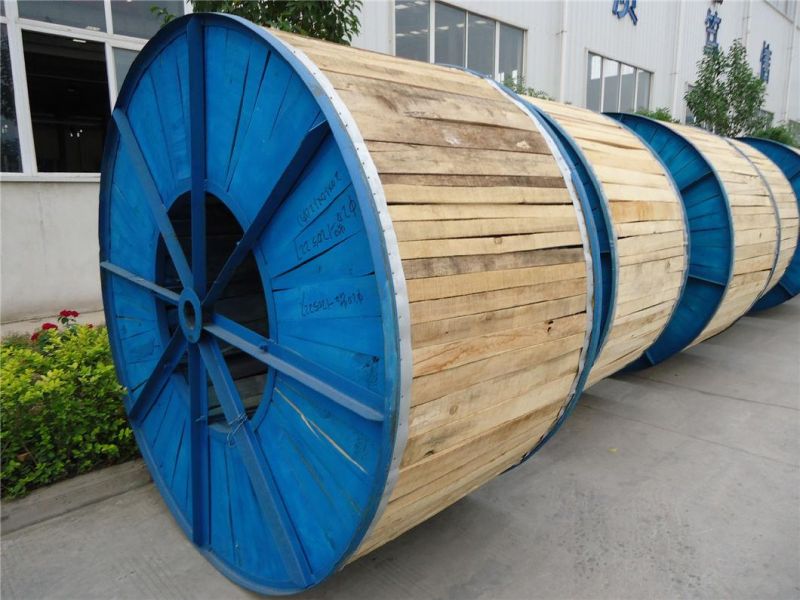

• Transport Package：Steel Drum
• Specification：1x630mm2
• Trademark：Yifang cable
• Origin：Zhengzhou, Henan, China
• HS Code：8544601200
• Production Capacity：3000km,Year

ModelNameApplicationCable CoresSection area (mm)Copper    CoreAluminum CoreYJVYJLVCU/AL Conductor, XLPE Insulated, PVC Sheathed Power CableXLPE insulation PVC/PE sheathed power cables are used for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces and pulling forces. Single core cable can't laying in magnetic ducts .1C
3C

25

 |

 400

YJYYJLYCU/AL Conductor, XLPE Insulated, PE Sheathed Power CableYJV22YJLV22CU/AL Conductor, XLPE Insulated,Steel-Tape Armored,PVC Sheathed Power CableXLPE insulation PVC/PE sheathed steel-tape armored power cables can be buried directly .Able to bear external mechanical forces but large pulling forces.YJV23YJLV23CU/AL Conductor, XLPE Insulated,Steel-Tape Armored,PVC Sheathed Power CableYJV32YJLV32CU/AL Conductor, XLPE Insulated,Thin Steel-Wire Armored,PVC Sheathed Power CableXLPE insulation armoured power cables can apply to shafts,water and soil. Able to bear moderate pulling forces.YJV33YJLV33CU/AL Conductor, XLPE Insulated,Thin Steel-Wire Armored,PE Sheathed Power CableYJV42YJLV42CU/AL Conductor, XLPE Insulated,Thick Steel-Wire Armored,PVC Sheathed Power CableSteel-wire armored,PVC/PE Sheathed Power Cables are apply to shafts,water and soil.Able to bear large pulling forces.YJV43YJLV43CU/AL Conductor, XLPE Insulated,Thick Steel-Wire Armored,PE Sheathed Power Cable
