Cat5e UTP LAN Cable with High Quality Black Jacket

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：UTP CAT5E
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, ETL SGS CPR
  • Brand：Risun or OEM
  • Jacket：PVC,PE,LSZH
  • Color：Multiple-Choice
  • Transport Package：305m,Carton, 45carton,Pallet
  • Specification：CE, RoHS, SGS, ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

ConstructionConductor24AWG(Solid or Strand) CU/CCA/CCSInsulationHDPE 0.90± 0.06mmCores/Pairs8/4Sheath5.20+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE
Mechanical Properties
ElongationMin. 300%
Temperature Range-20 up to +75° C
Tensile strengthMin. 1.68Kg/mm2
Electrical Properties (at 20°C)
Conductor ResistanceMax. 9.38 ohm/100m
Resistance UnbalanceMax. 2%
Insulation Resistance150 ohm/KM
Mutual CapacitanceMax. 5600pF/100m
Cpacitance UnbalanceMax. 330pF/100m
Impendance100+/-15 ohm
Spark Test2000V
Velocity Propagation67%
 AttenuationRLNextPS Next
(MHz)(db/100m)(db)(db)(db/100m)
1MHz2.02065.363.5
4MHz4.12356.354.2
8MHz5.824.552.450.5
10MHz6.62551.349.2
16MHz8.22549.347.4
20MHz9.32548.846.9
25MHz10.42445.343.4
31.25MHz11.72343.041.8
62.5MHz17.02139.237.2
100MHz22.02036.334.4
155MHz28.11935.533.6
200MHz32.41931.829.9
240MHz36.01830.628.7
300MHz41.01829.227
350MHz44.91728.025.6

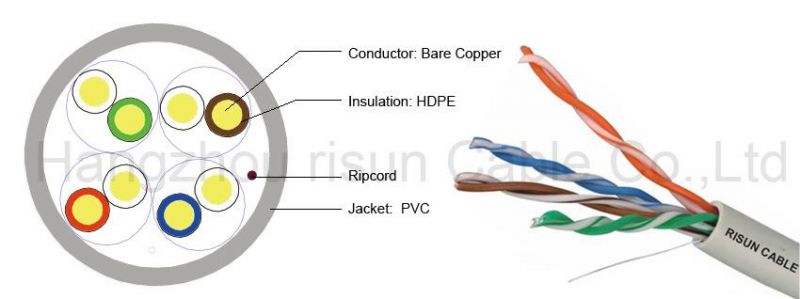

Construction
Cat5e UTP LAN Cable with High Quality Black Jacket

Cat5e UTP LAN Cable with High Quality Black Jacket

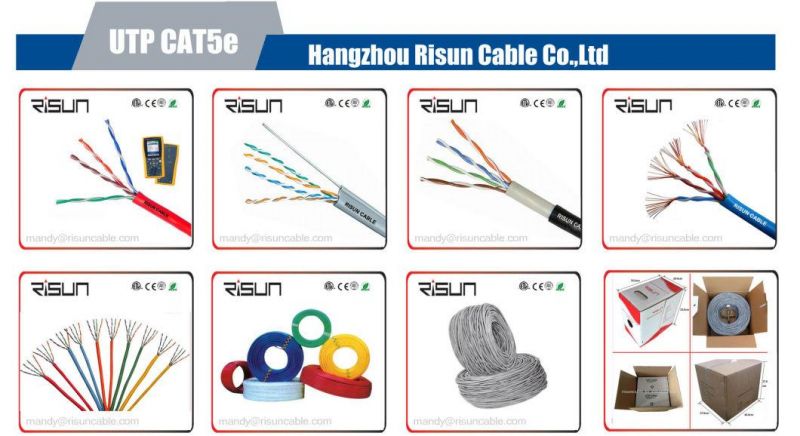

Product photos
Cat5e UTP LAN Cable with High Quality Black Jacket
Risun Introduction


Application & Certification
Cat5e UTP LAN Cable with High Quality Black Jacket
