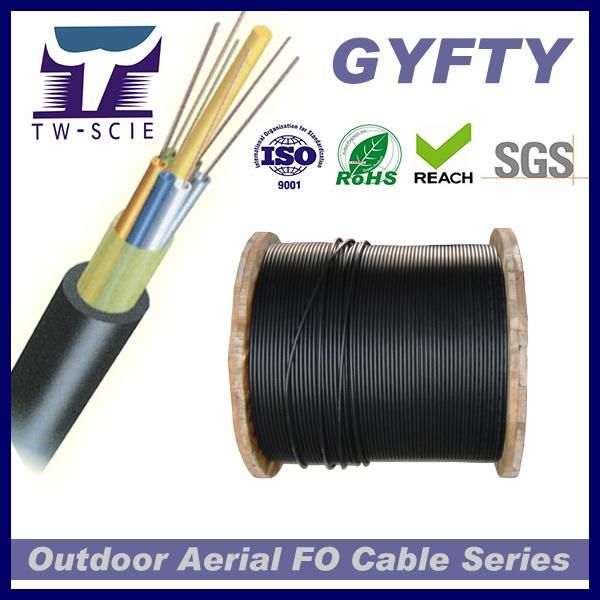

Aerial Non-Metallic Optical Fiber Cable GYFTY with Competitive Price
DONGGUAN TW-SCIE CO., LTD.- Application:Communication, Factory Price Fiber Optic Cable
- Type:Single-Mode or Multimode Fiber
- Connection Structure:Factory Price Fiber Optic Cable
- Material Shape:Round Wire
- Allowed Lateral Pressure:Short Term 1500n; Long Term 600n
- Allowed Tensile Strength:Short Term 1000n; Long Term 300n
Base Info
- Model NO.:GYFTY
- Core:2-288 Core
- Certification:RoHS, ISO9001, Reach,Tlc,etc
- Brand:Tw-Scie or OEM
- Sheath Material:MDPE , HDPE , LSZH PE
- Model No:GYFTY
- Fiber Count:12 Core
- Brand Name of Fiber:Ofs Fiber
- Loose Tube Material:PBT
- Color of Loose Tube:Orange,Green , Brown,Red
- Central Strength Member:Non-Metallic Material
- Strength Material:Glass Yarn
- Moisture Protection Methodology:Water Blocking Tape or Filling Compound
- Installation Style:Aerial

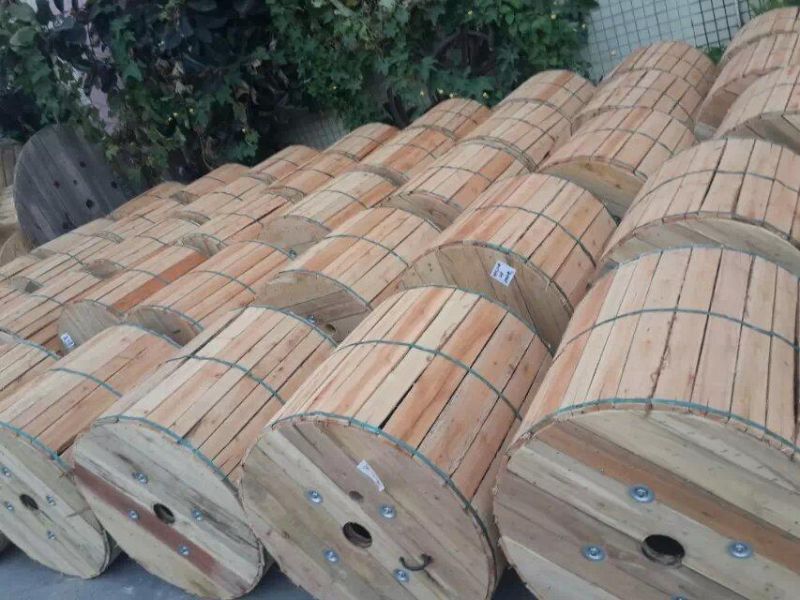

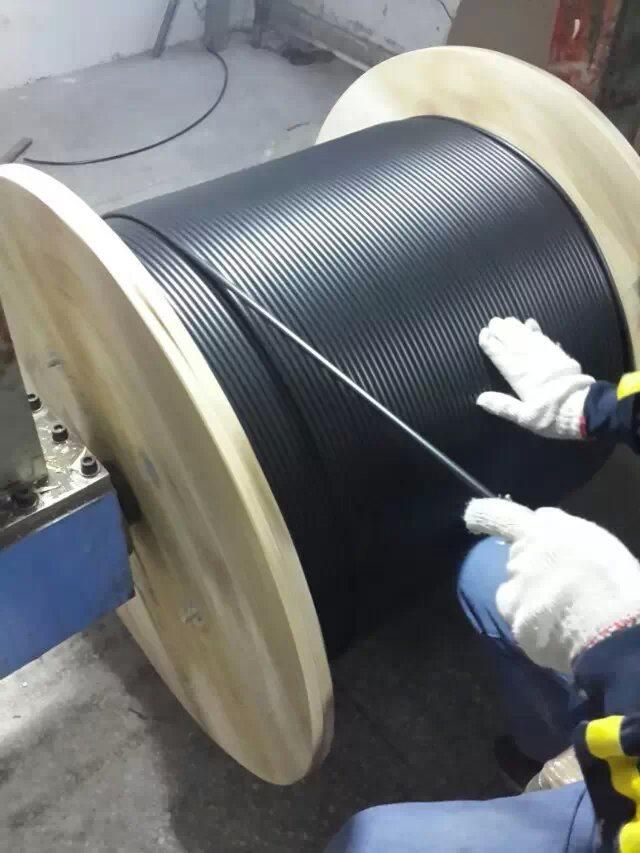

- Transport Package:Wooden Drum
- Specification:SGS ROHS REACH ISO
- Trademark:TW-SCIE or OEM
- Origin:Dongguan, Guangdong, China (Mainland)
- HS Code:854470000
- Production Capacity:200km,Day
Description
8.2Cable weight (kg/km) 77 Temperature rating -20 ~+60ºC Operation storage -20 ~+60ºC Technical Data-Mechanical:Fiber typeSingle-mode (1310/1550nm) Multi-mode (50/125um)
(850/1300nm) Multi-mode
(62.5/125um)
(850/1300nm) Attenuation Typical 0.36/0.22 3.0/1.0 3.0/1.0 Maximum 0.5/0.4 3.5/1.5 3.5/1.5 Zero dispersion slope <0.093ps/km•nm2 - - Dispersion (1285~1340nm) -3.5~ 3.5ps/ (nm•km) - - Mode field diameter 9.3+/-0.4um - - Cutoff wavelength cable <1270nm - - Bandwidth @850nm - ≥200MHz•km ≥160MHz•km @1300nm - ≥400MHz•km ≥200MHz•km Cladding diameter (um) 125+/-1.0 125+/-1.0 125+/-1.0
Fiber styleUnit SM G652D MM 50/125 MM 62.5/125 MM OM3-300 Condition nm 1310/1550 850/1300 850/1300 850/1300 Attenuation dB/km 0.36/0.23 3.0/1.0 3.0/1.0 3.0/1.0 Dispersion 1550nm Ps (nm ·km) ≤18 ----- ----- Dispersion 1625nm Ps (nm ·km) ≤22 ----- ----- Bandwidth 850nm MHZ ·.km ----- ≥400 ≥160 Bandwidth 1300nm MHZ. ·km ----- ≥800 ≥500 Zero dispersion wavelength nm ≥1302 ,≤1322 ------ ------ ≥1295 ,≤1320 Zero dispersion slope nm ≤0.091 ------ ------ ≤0.11 PMD Maximum Individual Fibre um ≤0.2 ------ ------ ------ PMD Design Link Value Ps/(nm2*km) ≤0.08 ------ ------ ------ Fibre cutoff wavelength λc nm ≥1180 ,≤1330 ------ ------ ------ Cable cutoff wavelengthλcc nm ≤1260 ------- ------- ------- Mode field diameter(MFD) 1310nm um 9.2±0.4 ------ ------- ------- 1550nm um 10.4±0.8 ------ ------- ------- Numerical Aperture(NA) ----- 0.200±0.015 0.275±0.015 0.200±0.015 Step(mean of bidirectional measurement) dB ≤0.05 ≤0. 10 ≤0. 10 ≤0. 10 Irregularities over fibre length and point discontinuity dB ≤0.05 ≤0. 10 ≤0. 10 ≤0. 10 Difference backscatter coefficient dB/km ≤0.03 ≤0. 08 ≤0. 10 ≤0. 08 Attenuation uniformity dB/km ≤0.01 ----- ------ ----- Core diameter um ----- 50±1.0 62.5±2.5 50±1.0 Cladding diameter um 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1 Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 Coating diameter um 242±7 242±7 242±7 242±7 Coating/cladding concentricity error um ≤12.0 ≤12.0 ≤12.0 ≤12.0 Coating non-circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 Core/cladding concentricity error um ≤0.6 ≤1.5 ≤1.5 ≤1.5 Curl(radius) um ≤4 ----- ----- ----- Technical Requirements:Fiber CountART.NO. AS-1 AS-2 AS-3 AS-4 AS-5 AS-6 MAX.SPAN 50-100 100-200 200-400 500-700 800-1000 1100-1300 RTS 5.0kN 12.0kN 25.0kN 45.0kN 77.5kN 125.0kN MAT 2.0kN 4.8kN 10.0kN 18.0kN 31.0kN 50.0kN 2-24B Diameter/mm 12.1 12.3 12.7 13.3 14.5 16.2 Weight kg/km 115 119 129 144 169 207 24-48B Diameter/mm 12.7 12.9 13.3 13.9 14.9 16.6 Weight kg/km 125 130 140 155 179 217 48-72B Diameter/mm 14 14.1 14.5 15 16 17.5 Weight kg/km 150 155 164 179 203 240
Technical Requirements:Fiber Count2-144 Max. Tension (N) Short-term 3000 Max. Tension (N) Long-term 1000 Max. Crushing Resistance (N/100mm2) 1000 Temperature range(ºC) -40ºC-- +70ºC Min. Bending Radius(mm) Install 20D Min. Bending Radius(mm) Static 10D
GYFTY Outdoor Optical Cable
Application:
l Laying method: Duct
l Suitable for long-distance trunk and LAN communication in high-voltage area or access to telecom network. Especially for power transmission system, excessive thunder areas and high electromagnetic interference.
l Fiber type: Single-mode/Multimode
Characteristics:
l Non-metallic structure providing excellent anti-electromagnetism,anti-thunder and anti-static performance.
l Accurate fiber excess length ensures good mechanical and temperature performance.
l Specially designed compact structure is good at preventing loose tubes from shrinking.
l High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.
Fiber characteristic:Fiber styleUnit SM G652D MM 50/125 MM 62.5/125 MM OM3-300 Condition nm 1310/1550 850/1300 850/1300 850/1300 Attenuation dB/km 0.36/0.23 3.0/1.0 3.0/1.0 3.0/1.0 Dispersion 1550nm Ps (nm ·km) ≤18 ----- ----- Dispersion 1625nm Ps (nm ·km) ≤22 ----- ----- Bandwidth 850nm MHZ ·.km ----- ≥400 ≥160 Bandwidth 1300nm MHZ. ·km ----- ≥800 ≥500 Zero dispersion wavelength nm ≥1302 ,≤1322 ------ ------ ≥1295 ,≤1320 Zero dispersion slope nm ≤0.091 ------ ------ ≤0.11 PMD Maximum Individual Fibre um ≤0.2 ------ ------ ------ PMD Design Link Value Ps/(nm2*km) ≤0.08 ------ ------ ------ Fibre cutoff wavelength λc nm ≥1180 ,≤1330 ------ ------ ------ Cable cutoff wavelengthλcc nm ≤1260 ------- ------- ------- Mode field diameter(MFD) 1310nm um 9.2±0.4 ------ ------- ------- 1550nm um 10.4±0.8 ------ ------- ------- Numerical Aperture(NA) ----- 0.200±0.015 0.275±0.015 0.200±0.015 Step(mean of bidirectional measurement) dB ≤0.05 ≤0. 10 ≤0. 10 ≤0. 10 Irregularities over fibre length and point discontinuity dB ≤0.05 ≤0. 10 ≤0. 10 ≤0. 10 Difference backscatter coefficient dB/km ≤0.03 ≤0. 08 ≤0. 10 ≤0. 08 Attenuation uniformity dB/km ≤0.01 ----- ------ ----- Core diameter um ----- 50±1.0 62.5±2.5 50±1.0 Cladding diameter um 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1 Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 Coating diameter um 242±7 242±7 242±7 242±7 Coating/cladding concentricity error um ≤12.0 ≤12.0 ≤12.0 ≤12.0 Coating non-circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 Core/cladding concentricity error um ≤0.6 ≤1.5 ≤1.5 ≤1.5 Curl(radius) um ≤4 ----- ----- ----- Technical Requirements:
Min.Bending Radius(mm)Max Tension(N) Crush Pressure (N/100mm) Dynamic Static Short Term Long Term Short Term Long Term 2-36 10.5 85 20×D 10×D 1000/3000 600/1000 1000 300 36-60 11.4 110 20×D 10×D 1000/3000 600/1000 1000 300 48-72 11.9 115 20×D 10×D 1000/3000 600/1000 1000 300 72-84 12.8 125 20×D 10×D 1000/3000 600/1000 1000 300 84-96 13.7 140 20×D 10×D 1000/3000 600/1000 1000 300 96-108 14.6 160 20×D 10×D 1000/3000 600/1000 1000 300 108-120 15.4 175 20×D 10×D 1000/3000 600/1000 1000 300 120-132 16.3 195 20×D 10×D 1000/3000 600/1000 1000 300 132-216 17.2 220 20×D 10×D 1000/3000 600/1000 1000 300
Other Product:
GYFTY53 Outdoor Optical CableG.652 G.655 50/125μm 62.5/125μm Attenuation
(+20ºC) @850nm ≤3.0 dB/km ≤3.0 dB/km @1300nm ≤1.0 dB/km ≤1.0 dB/km @1310nm ≤0.36 dB/km ≤0.40 dB/km @1550nm ≤0.22 dB/km ≤0.23dB/km Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km @1300nm ≥1000 MHz·km ≥600 MHz·km Numerical Aperture 0.200±0.015NA 0.275±0.015NA Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm Technical Parameters

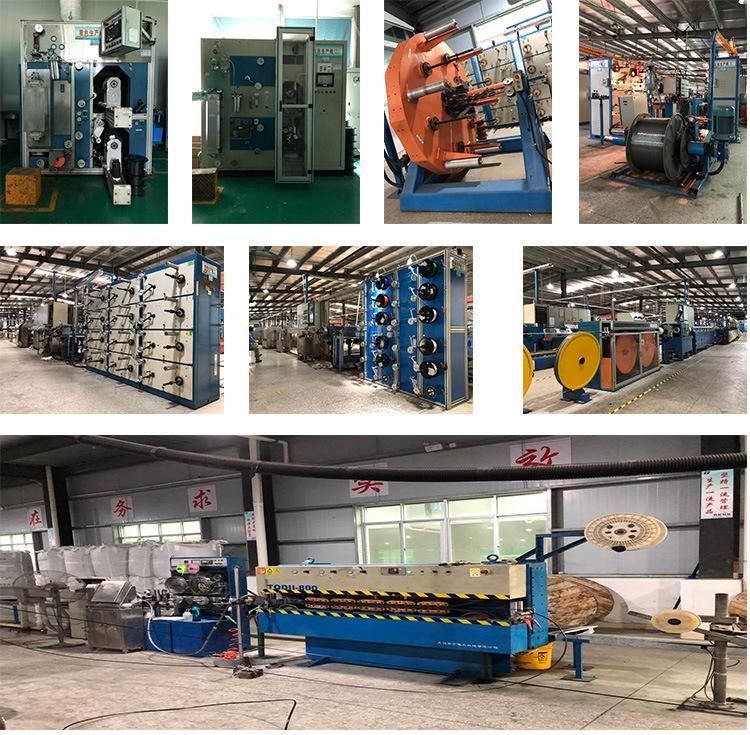

Storage/Operating Temperature : -40ºC to + 70ºC pruduction environment:
Transportation:
· All available shipping ways could be applied, by courier, air or sea.
· Appointed shipping company or our own forwarders all could be used in shipment.
· Full-way tracking the cargos for you before the goods arrive.
Q4: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,please give us letter of authorization.
Q5: Why Choose Our Fiber Optic Cable ?
A6:
1.Introduction of foreign advanced production equipment and technology, have 12 years production experience, 80% employees have more than 10 years experience, excellent enterprise culture and management team.
2.FAST SHIPPING from factory
3.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
4.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
5.We accept OEM. The cable size and material are customized. Your own logo and own design are welcome. We will produce according to ur requirement and description;
6.With more than 12 years experience in fiber optic cable,we already cooperated and established long-term business relationship with both domestic and overseas famous enterprise.
Contact us:
We highly appreciate your any enquiry by email, fax or instant message. We will reply your email or fax within 12 hours. Please fell free to call us at any time if there is any questions.
Certificates:

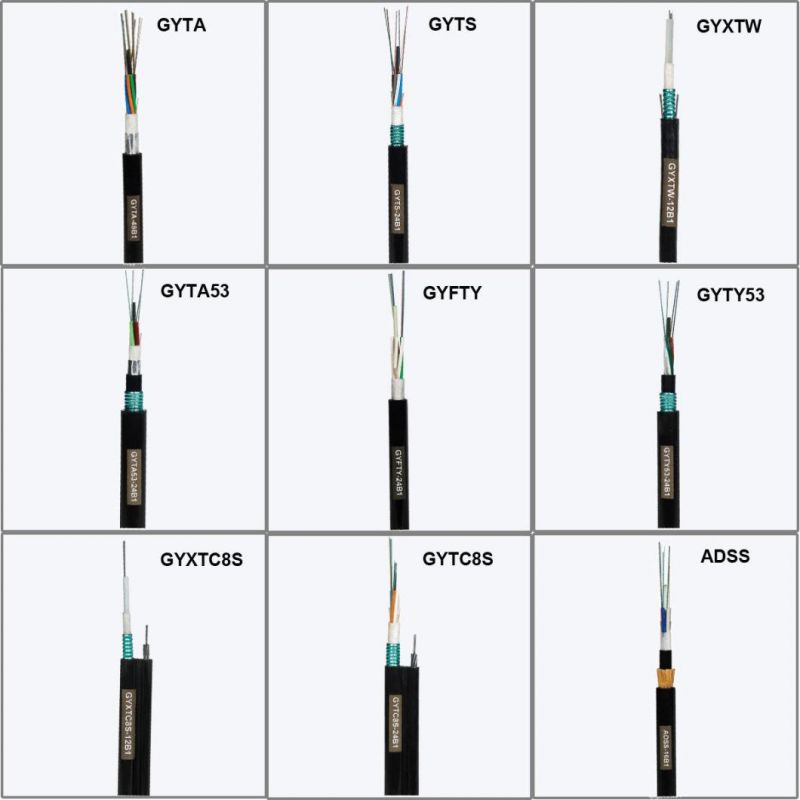

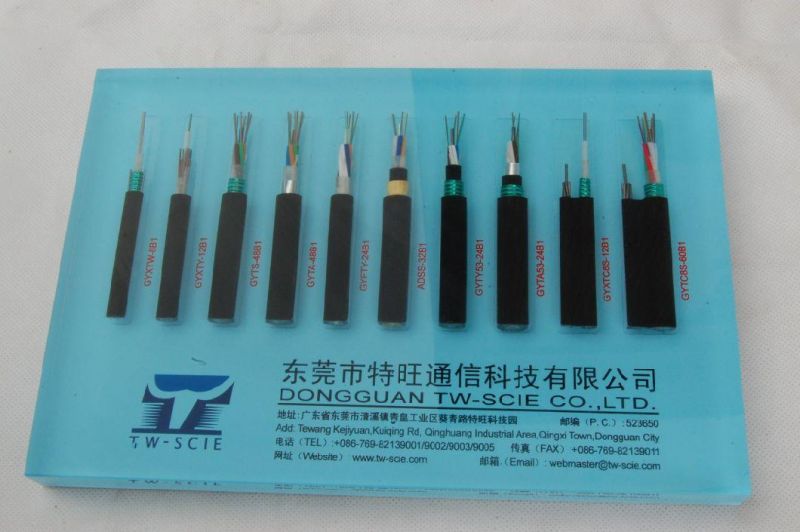

More Products:
(850/1300nm)
(62.5/125um)
(850/1300nm)
Fiber style
Technical Requirements:Fiber Count
GYFTY Outdoor Optical Cable
Application:
l Laying method: Duct
l Suitable for long-distance trunk and LAN communication in high-voltage area or access to telecom network. Especially for power transmission system, excessive thunder areas and high electromagnetic interference.
l Fiber type: Single-mode/Multimode
Characteristics:
l Non-metallic structure providing excellent anti-electromagnetism,anti-thunder and anti-static performance.
l Accurate fiber excess length ensures good mechanical and temperature performance.
l Specially designed compact structure is good at preventing loose tubes from shrinking.
l High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.
Fiber characteristic:Fiber style
Min.Bending Radius(mm)
Other Product:
GYFTY53 Outdoor Optical Cable
(+20ºC)
Cable Type | Fiber Count | Tubes | Fillers | Dia mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm | |
GYFTY53-2~6 | 2~6 | 1 | 7 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-8~12 | 8~12 | 2 | 6 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-14~18 | 14~18 | 3 | 5 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-20~24 | 20~24 | 4 | 4 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-26~30 | 26~30 | 5 | 3 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-32~36 | 32~36 | 6 | 2 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-38~42 | 38~42 | 7 | 1 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-44~48 | 44~48 | 8 | 0 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-50~60 | 50~60 | 5 | 3 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFT Y53-62~72 | 62~72 | 6 | 2 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-74~84 | 74~84 | 7 | 1 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-86~96 | 86~96 | 8 | 0 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-98~108 | 98~108 | 9 | 1 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-110~120 | 110~120 | 10 | 0 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-122~132 | 122~132 | 11 | 1 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D | |
GYFTY53-134~144 | 134~144 | 12 | 0 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D |
