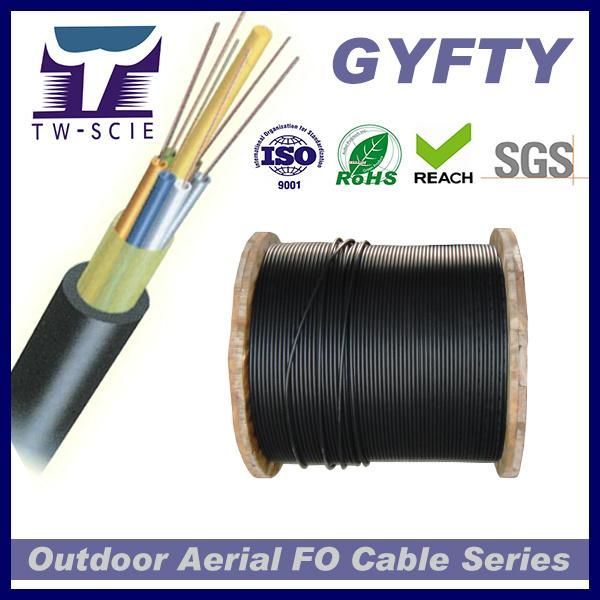

24 Core Non-Amored Outdoor Fiber Optic Cable GYFTY with FRP
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Factory Price Fiber Optic Cable
- Type：Single-Mode or Multimode Fiber
- Connection Structure：Factory Price Fiber Optic Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：Short Term 1500n; Long Term 600n
- Allowed Tensile Strength：Short Term 1000n; Long Term 300n
Base Info
- Model NO.：GYFTY
- Core：2-288 Core
- Certification：RoHS, ISO9001, Reach, Tlc, etc
- Brand：Tw-Scie or OEM
- Sheath Material：MDPE , HDPE , LSZH PE
- Model No：GYFTY
- Fiber Count：2-144 Core
- Brand Name of Fiber：Corning, Yofc...as Your Requirement
- Loose Tube Material：PBT
- Color of Loose Tube：Orange, Green, Brown, Red
- Central Strength Member：Non-Metallic
- Strength Material：Aramid Yarn
- Moisture Protection Methodology：Water Blocking Tape or Filling Compound
- Installation Style：Aerial
- Transport Package：Wooden Drum
- Specification：SGS ROHS REACH ISO
- Trademark：TW-SCIE or OEM
- Origin：Dongguan, Guangdong, China (Mainland)
- HS Code：854470000
- Production Capacity：200km,Day
Description
8.2Cable weight (kg/km) 77 Temperature rating -20 ~+60ºC Operation storage -20 ~+60ºC Single-mode (1310/1550nm) Multi-mode (50/125um)
(850/1300nm) Multi-mode
(62.5/125um)
(850/1300nm) Attenuation Typical 0.36/0.22 3.0/1.0 3.0/1.0 Maximum 0.5/0.4 3.5/1.5 3.5/1.5 Zero dispersion slope <0.093ps/km•nm2 - - Dispersion (1285~1340nm) -3.5~ 3.5ps/ (nm•km) - - Mode field diameter 9.3+/-0.4um - - Cutoff wavelength cable <1270nm - - Bandwidth @850nm - ≥200MHz•km ≥160MHz•km @1300nm - ≥400MHz•km ≥200MHz•km Cladding diameter (um) 125+/-1.0 125+/-1.0 125+/-1.0
Fiber styleUnit SM G652D MM 50/125 MM 62.5/125 MM OM3-300 Condition nm 1310/1550 850/1300 850/1300 850/1300 Attenuation dB/km 0.36/0.23 3.0/1.0 3.0/1.0 3.0/1.0 Dispersion 1550nm Ps (nm ·km) ≤18 ----- ----- Dispersion 1625nm Ps (nm ·km) ≤22 ----- ----- Bandwidth 850nm MHZ ·.km ----- ≥400 ≥160 Bandwidth 1300nm MHZ. ·km ----- ≥800 ≥500 Zero dispersion wavelength nm ≥1302 ,≤1322 ------ ------ ≥1295 ,≤1320 Zero dispersion slope nm ≤0.091 ------ ------ ≤0.11 PMD Maximum Individual Fibre um ≤0.2 ------ ------ ------ PMD Design Link Value Ps/(nm2*km) ≤0.08 ------ ------ ------ Fibre cutoff wavelength λc nm ≥1180 ,≤1330 ------ ------ ------ Cable cutoff wavelengthλcc nm ≤1260 ------- ------- ------- Mode field diameter(MFD) 1310nm um 9.2±0.4 ------ ------- ------- 1550nm um 10.4±0.8 ------ ------- ------- Numerical Aperture(NA) ----- 0.200±0.015 0.275±0.015 0.200±0.015 Step(mean of bidirectional measurement) dB ≤0.05 ≤0. 10 ≤0. 10 ≤0. 10 Irregularities over fibre length and point discontinuity dB ≤0.05 ≤0. 10 ≤0. 10 ≤0. 10 Difference backscatter coefficient dB/km ≤0.03 ≤0. 08 ≤0. 10 ≤0. 08 Attenuation uniformity dB/km ≤0.01 ----- ------ ----- Core diameter um ----- 50±1.0 62.5±2.5 50±1.0 Cladding diameter um 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1 Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 Coating diameter um 242±7 242±7 242±7 242±7 Coating/cladding concentricity error um ≤12.0 ≤12.0 ≤12.0 ≤12.0 Coating non-circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 Core/cladding concentricity error um ≤0.6 ≤1.5 ≤1.5 ≤1.5 Curl(radius) um ≤4 ----- ----- ----- ART.NO. AS-1 AS-2 AS-3 AS-4 AS-5 AS-6 MAX.SPAN 50-100 100-200 200-400 500-700 800-1000 1100-1300 RTS 5.0kN 12.0kN 25.0kN 45.0kN 77.5kN 125.0kN MAT 2.0kN 4.8kN 10.0kN 18.0kN 31.0kN 50.0kN 2-24B Diameter/mm 12.1 12.3 12.7 13.3 14.5 16.2 Weight kg/km 115 119 129 144 169 207 24-48B Diameter/mm 12.7 12.9 13.3 13.9 14.9 16.6 Weight kg/km 125 130 140 155 179 217 48-72B Diameter/mm 14 14.1 14.5 15 16 17.5 Weight kg/km 150 155 164 179 203 240
Technical Requirements:Fiber Count2-144 Max. Tension (N) Short-term 3000 Max. Tension (N) Long-term 1000 Max. Crushing Resistance (N/100mm2) 1000 Temperature range(ºC) -40ºC-- +70ºC Min. Bending Radius(mm) Install 20D Min. Bending Radius(mm) Static 10D
GYFTY Outdoor Optical Cable
Corss Section
Application:
l Laying method: Duct
l Suitable for long-distance trunk and LAN communication in high-voltage area or access to telecom network. Especially for power transmission system, excessive thunder areas and high electromagnetic interference.
l Fiber type: Single-mode/Multimode
Characteristics:
l Non-metallic structure providing excellent anti-electromagnetism,anti-thunder and anti-static performance.
l Accurate fiber excess length ensures good mechanical and temperature performance.
l Specially designed compact structure is good at preventing loose tubes from shrinking.
l High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.
Fiber characteristic:Fiber styleUnit SM G652D MM 50/125 MM 62.5/125 MM OM3-300 Condition nm 1310/1550 850/1300 850/1300 850/1300 Attenuation dB/km 0.36/0.23 3.0/1.0 3.0/1.0 3.0/1.0 Dispersion 1550nm Ps (nm ·km) ≤18 ----- ----- Dispersion 1625nm Ps (nm ·km) ≤22 ----- ----- Bandwidth 850nm MHZ ·.km ----- ≥400 ≥160 Bandwidth 1300nm MHZ. ·km ----- ≥800 ≥500 Zero dispersion wavelength nm ≥1302 ,≤1322 ------ ------ ≥1295 ,≤1320 Zero dispersion slope nm ≤0.091 ------ ------ ≤0.11 PMD Maximum Individual Fibre um ≤0.2 ------ ------ ------ PMD Design Link Value Ps/(nm2*km) ≤0.08 ------ ------ ------ Fibre cutoff wavelength λc nm ≥1180 ,≤1330 ------ ------ ------ Cable cutoff wavelengthλcc nm ≤1260 ------- ------- ------- Mode field diameter(MFD) 1310nm um 9.2±0.4 ------ ------- ------- 1550nm um 10.4±0.8 ------ ------- ------- Numerical Aperture(NA) ----- 0.200±0.015 0.275±0.015 0.200±0.015 Step(mean of bidirectional measurement) dB ≤0.05 ≤0. 10 ≤0. 10 ≤0. 10 Irregularities over fibre length and point discontinuity dB ≤0.05 ≤0. 10 ≤0. 10 ≤0. 10 Difference backscatter coefficient dB/km ≤0.03 ≤0. 08 ≤0. 10 ≤0. 08 Attenuation uniformity dB/km ≤0.01 ----- ------ ----- Core diameter um ----- 50±1.0 62.5±2.5 50±1.0 Cladding diameter um 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1 Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 Coating diameter um 242±7 242±7 242±7 242±7 Coating/cladding concentricity error um ≤12.0 ≤12.0 ≤12.0 ≤12.0 Coating non-circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 Core/cladding concentricity error um ≤0.6 ≤1.5 ≤1.5 ≤1.5 Curl(radius) um ≤4 ----- ----- -----
Min.Bending Radius(mm)Max Tension(N) Crush Pressure (N/100mm) Dynamic Static Short Term Long Term Short Term Long Term 2-36 10.5 85 20×D 10×D 1000/3000 600/1000 1000 300 36-60 11.4 110 20×D 10×D 1000/3000 600/1000 1000 300 48-72 11.9 115 20×D 10×D 1000/3000 600/1000 1000 300 72-84 12.8 125 20×D 10×D 1000/3000 600/1000 1000 300 84-96 13.7 140 20×D 10×D 1000/3000 600/1000 1000 300 96-108 14.6 160 20×D 10×D 1000/3000 600/1000 1000 300 108-120 15.4 175 20×D 10×D 1000/3000 600/1000 1000 300 120-132 16.3 195 20×D 10×D 1000/3000 600/1000 1000 300 132-216 17.2 220 20×D 10×D 1000/3000 600/1000 1000 300
GYFTY53 Outdoor Optical CableG.652 G.655 50/125μm 62.5/125μm Attenuation
(+20ºC) @850nm ≤3.0 dB/km ≤3.0 dB/km @1300nm ≤1.0 dB/km ≤1.0 dB/km @1310nm ≤0.36 dB/km ≤0.40 dB/km @1550nm ≤0.22 dB/km ≤0.23dB/km Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km @1300nm ≥1000 MHz·km ≥600 MHz·km Numerical Aperture 0.200±0.015NA 0.275±0.015NA Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm Technical Parameters
Storage/Operating Temperature : -40ºC to + 70ºC
Tag: Aerial Cable; Fiber Optical; Non-menta Cable.
(850/1300nm)
(62.5/125um)
(850/1300nm)
Fiber style
Technical Requirements:Fiber Count
GYFTY Outdoor Optical Cable
Corss Section
Application:
l Laying method: Duct
l Suitable for long-distance trunk and LAN communication in high-voltage area or access to telecom network. Especially for power transmission system, excessive thunder areas and high electromagnetic interference.
l Fiber type: Single-mode/Multimode
Characteristics:
l Non-metallic structure providing excellent anti-electromagnetism,anti-thunder and anti-static performance.
l Accurate fiber excess length ensures good mechanical and temperature performance.
l Specially designed compact structure is good at preventing loose tubes from shrinking.
l High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.
Fiber characteristic:Fiber style
Min.Bending Radius(mm)
GYFTY53 Outdoor Optical Cable
(+20ºC)
| Cable Type | Fiber Count | Tubes | Fillers | Dia mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm | |
| GYFTY53-2~6 | 2~6 | 1 | 7 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-8~12 | 8~12 | 2 | 6 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-14~18 | 14~18 | 3 | 5 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-20~24 | 20~24 | 4 | 4 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-26~30 | 26~30 | 5 | 3 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-32~36 | 32~36 | 6 | 2 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-38~42 | 38~42 | 7 | 1 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-44~48 | 44~48 | 8 | 0 | 15.8 | 230 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-50~60 | 50~60 | 5 | 3 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFT Y53-62~72 | 62~72 | 6 | 2 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-74~84 | 74~84 | 7 | 1 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-86~96 | 86~96 | 8 | 0 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-98~108 | 98~108 | 9 | 1 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-110~120 | 110~120 | 10 | 0 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-122~132 | 122~132 | 11 | 1 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYFTY53-134~144 | 134~144 | 12 | 0 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D | |
Tag: Aerial Cable; Fiber Optical; Non-menta Cable.
