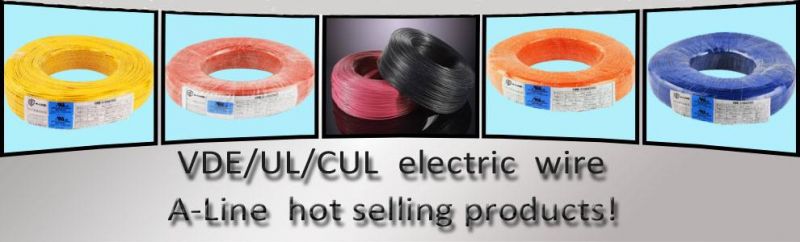

Flexible Stranded UL/cUL Hook-up Electrical Wire
Ningbo A-Line Cable & Wire Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：UL1007, 1015, 1569
- Material Shape：Round Wire
- Certification：ISO9001, CE, UL, RoHS
- Brand：A Line
- Conductor：Stranded or Solid Copper
- Insulation：PVC
- Colour：as Per Customer′s Requirement
- Length：as Per Customer′s Requirement
- Approval：UL,RoHS
- Transport Package：in Export Cartons
- Specification：38*38*22
- Trademark：A-Line cable
- Origin：China
- HS Code：3320962150
- Production Capacity：3000000 Meters,Per Month
Description
InsulationMaximum
Resistance
At 20ºC
Ω/km Packing Spec
AWG Conductor
construction
No./φmm Diameter
(mm) Nominal
thickness
(mm) Nominal outer
diameter
(mm) M/Coils 30 7/0.102 0.3 0.80 1.90 381 610 28 7/0.127 0.38 0.81 2.00 239 610 26 7/0.16 0.48 0.81 2.10 150 305 24 11/0.16 0.61 0.82 2.25 94.2 305 22 17/0.16 0.76 0.82 2.40 59.4 305 20 26/0.16 0.94 0.81 2.55 36.7 305 18 41/0.16 1.18 0.81 2.80 23.2 305 16 26/0.254 1.49 0.81 3.10 14.6 200 14 41/0.254 1.88 0.81 3.50 8.96 200 12 65/0.254 2.36 0.82 4.00 5.64 200 10 105/0.254 3.00 0.85 4.70 3.546 100
InsulationMaximum
Resistance
At 20ºC
Ω/km Packing Spec
AWG Conductor
construction
No./φmm Diameter
(mm) Nominal
thickness
(mm) Nominal outer
diameter
(mm) M/Coils 30 7/0.102 0.3 0.40 1.10 381 610 28 7/0.127 0.38 0.41 1.20 239 610 26 7/0.16 0.48 0.41 1.30 150 610 24 11/0.16 0.61 0.40 1.40 94.2 610 22 17/0.16 0.76 0.42 1.60 59.4 610 20 26/0.16 0.94 0.43 1.80 36.7 610 18 41/0.16 1.18 0.46 2.10 23.2 610 16 26/0.254 1.49 0.46 2.40 14.6 305 14 41/0.254 1.88 0.41 2.7 8.96 305 12 65/0.254 2.36 0.42 3.2 5.64 305 10 105/0.254 3.00 0.45 3.9 3.546 305
HOT PRODUCTS
CERTIFICATE

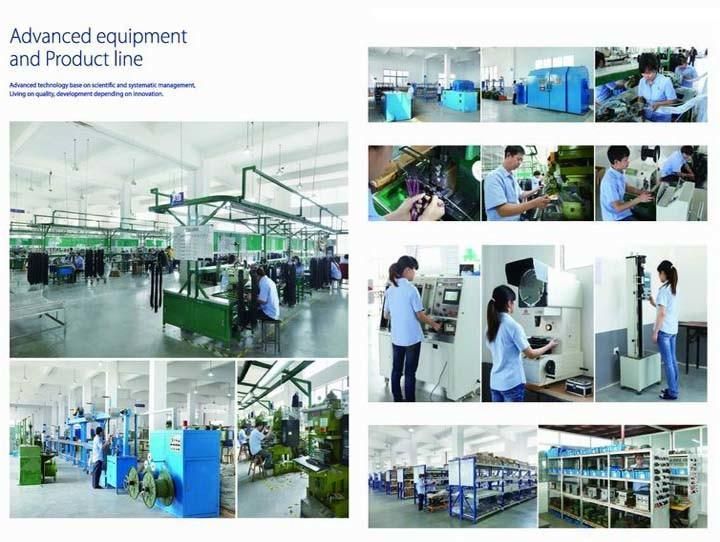

FACTORY INFORMATION
Ningbo A-Line Cable and Wire Co.ltd is a professional manufacture of high quality electrical wire ,power cord ,extension cord ,cable reel ,adaptor,wiring harness , or as a custom-made product with 18 years experience . The company's products have been certified by China 3C, us UL, German VDE, Australian SAA, EU CE and other quality and safety certificates. And Comply with RoHS and Reach environmental protection requirements; Meanwhile, the management system has passed ISO 9001:2015 certification.
Please attention
1. Factory direct price.
2. Small order welcome
3. Quality is the soul of an enterprise.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge
Q: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance before shipment.
Why choose us?
1. Advanced process equipment
2. Competitive price and high quality
3. Excellent after-sale service
4. Attractive design and various styles
5. Strict quality assurance system and perfect testing means
6. Advanced process equipment
7. Delivery on time
8. Have a good reputation in the domestic and overseas.
