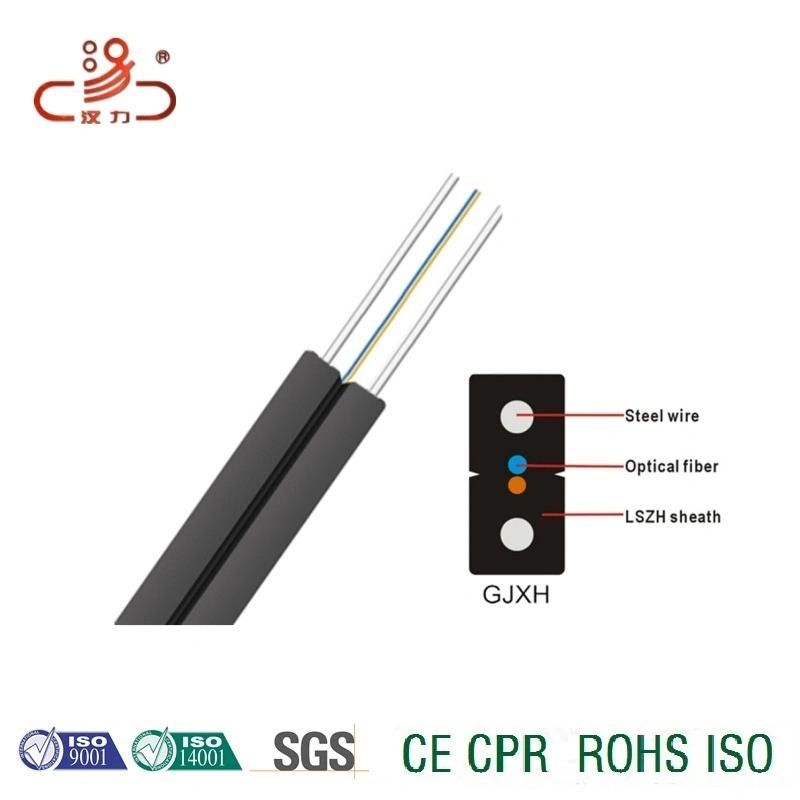

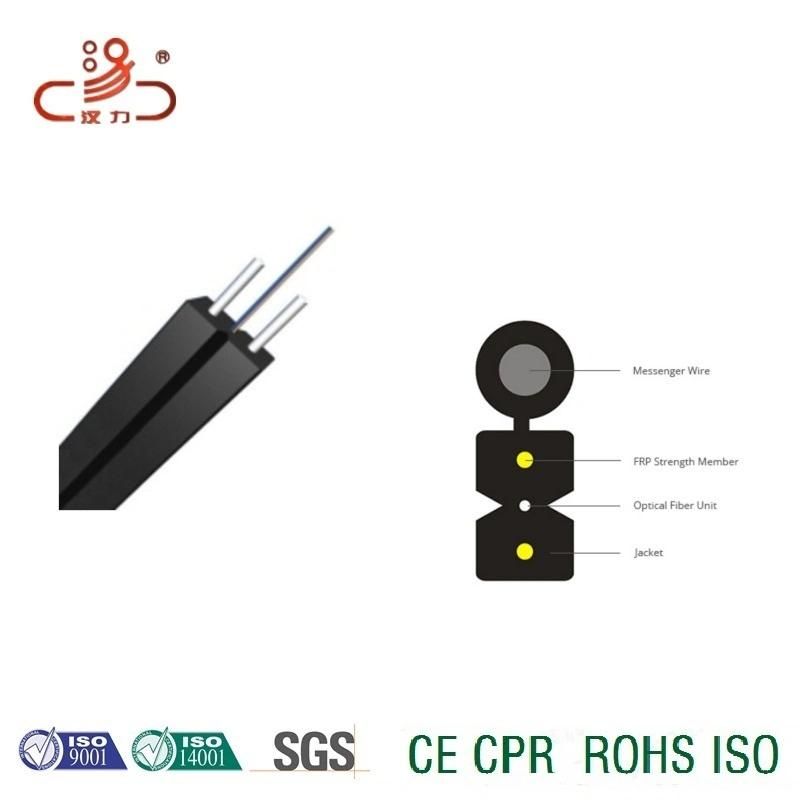

FTTH Communication Drop Optical Fiber Cable

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Communication, Sensor, Medicine
  • Type：Single-mode Fiber
  • Connection Structure：SC
  • Material Shape：Flat Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N

Base Info

  • Model NO.：FTTH Communication and Telecom Drop Optical Fiber
  • Core：Double Core
  • Certification：RoHS, CE, ISO9001
  • Brand：OEM
  • Sheath Material：PC
  • Transport Package：1000
  • Specification：80X80X50CM
  • Trademark：hanli
  • Origin：Zhejiang
  • Production Capacity：3000000m,Month

Description

Basic Info.

Model NO. FTTH Communication and Telecom Drop Optical Fiber Core Double Core Certification RoHS, CE, ISO9001 Brand OEM Sheath Material PC Transport Package 1000 Specification 80X80X50CM Trademark hanli Origin Zhejiang Production Capacity 3000000m/Month

Product Description

Optical Fiber Technical Date:


ITEMS		UNITSFiber SPECIFICATION
Fiber AttenuationdB/km≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersionps/nm.km≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelengthnm1300 ~ 1324
Zero Dispersion Slopeps/nm2.km≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber)nm≤1260
Mode Field Diameterum9.2±0.5
Mode Field Concentricityum≤0.8
Cladding Diameterum125±1.0
Cladding Non-circularity%≤1.0
Coating cladding concentricity errorum≤12.5
Coating Diameterum245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turndB≤0.5 at 1550nm
Proof Testkpsi≥100

FTTH Communication Drop Optical Fiber Cable
FTTH Communication Drop Optical Fiber Cable



FTTH Communication Drop Optical Fiber Cable

FTTH Communication Drop Optical Fiber Cable
FTTH Communication Drop Optical Fiber Cable



Q1. What kind of products can your company supply?
 A: We specialize in supplying network cable, coaxial cable, fiber optical cable, telephone cable, speaker cable and etc.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF term.

Q6. What's your conventional packing ?
A: 1000m/plastic or wooden drum, 2000m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
 A: Yes, we can.
