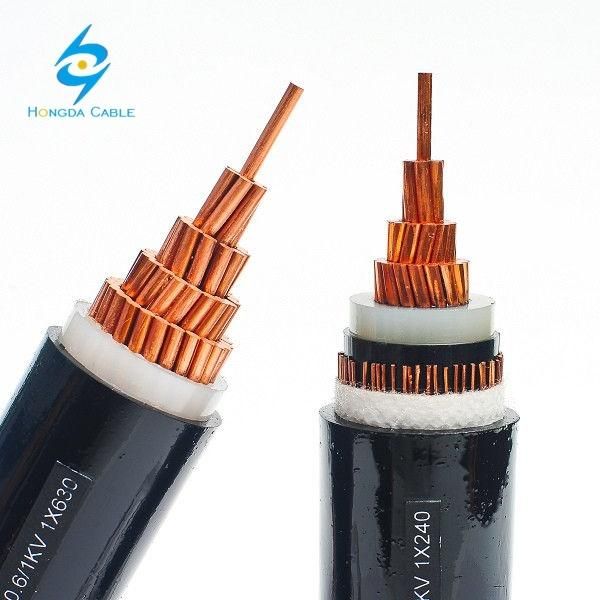

• Model NO.：1 core xlpe cable 300mm
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, SGS
• Model：Cu,Sc,XLPE,Sc,Cut,PVC,Swa,PVC
• Brand：Hongda
• Inner Semi-Conductive Layer：Semi-Conductive Material
• Insulation：XLPE (Cross-Linked Polyethylene)
• Outer Semi-Conductive Layer：Semi-Conductive Material
• Screen：Copper Wires
• Sheath：PVC (Polyvinyl Chloride)
• Transport Package：500m Per Drum
• Specification：25 - 400 sq. mm
• Trademark：Hongda
• Origin：China
• HS Code：8544601200
• Production Capacity：5 Kilometers Per Day

Nominal Area of ConductorMaximum Conductor Resistance  at 20°C  Thickness of XLPE InsulationThickness of Copper TapeThickness of Extruded BeddingDia of Armour WireThickness of Outer SheathApprox. Overall DiameterApprox. Cable WeightStandard Packing LengthDrum sizeApprox. Gross WeightSqmmOhm/KmmmmmmmmmmmmmKg/KmMetre ± 10% Kg350.5243.40.0751.21.61.827.31130500D-12675500.3873.40.0751.21.61.828.41290500D-12755700.2683.40.0751.21.61.930.21560500D-14930 950.1933.40.0751.21.61.932.11880500D-1611501200.1533.40.0751.21.62.033.82190500D-1613301500.1243.40.0751.22.02.136.22620500D-181550 1850.09913.40.0751.22.02.137.83000500D-1817402400.07543.40.0751.22.02.240.53640500D-1820603000.06013.40.0751.22.02.242.54290500D-182390 4000.04703.40.0751.22.02.445.85270500D-1929605000.03663.40.0751.32.52.550.26550500D-1936006300.02833.40.0751.42.52.654.48020500D-214430

All conductors circular compacted.
Equivalant voltage designation as per IEC: 60502 - 2 : 6/10 KV.
Cables conform to IEC 60502 - 2.

Note : Other conductor sizes & core confi gurations are available upon request.






Twisted three-core cable or triplex Armouring:for mechanical protection. Aluminium wire armoured for single-core cables, Galvanised steel wire armour, strip or tape.Tapes:Separator tapes to facilitate peeling, water-swellable tapes to prevent water ingress, Conductive tape for core binding.Outer Sheath:compounds with various properties, tailored to the specific application's requirements, including resistance to oils, greases, rodents, termites, UV and flame, as well as zero halogen emissions.

5. Related Products:

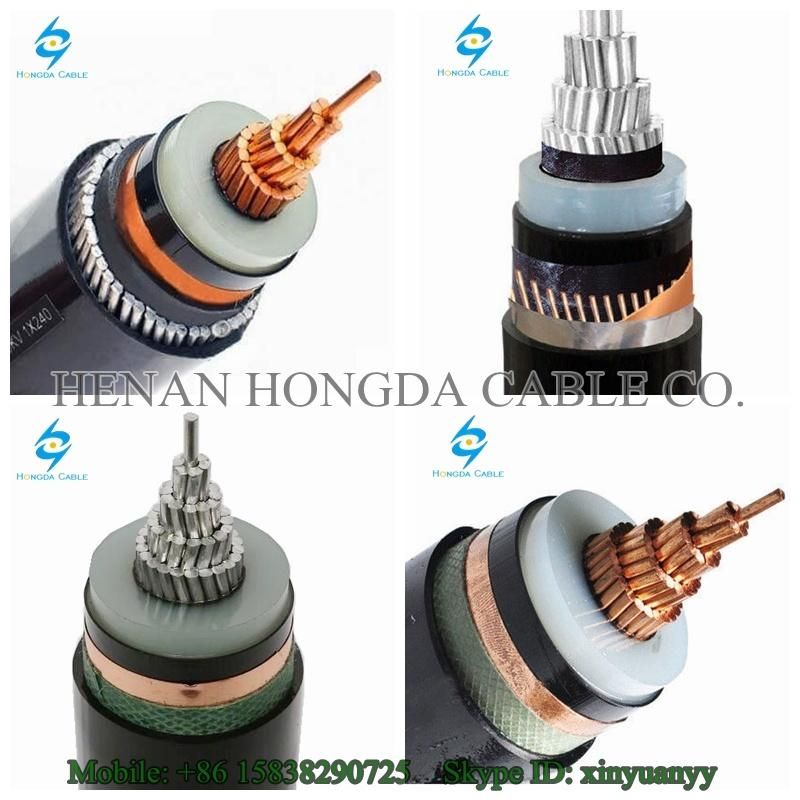

Medium Voltage Cables / XLPE Insulated Medium Voltage Cables

Single Core Cables 3.8/6.6 KV (Cu/SC/XLPE/SC/AWA/PVC)

Single Core Cables 3.8/6.6 KV (Cu/SC/XLPE/SC/CuT/PVC/AWA/PVC)

Three Core Cables 3.8/6.6 KV ( Cu/SC/XLPE/SC/SWA/PVC )

Three Core Cables 3.8/6.6 KV (Cu/SC/XLPE/SC/CuT/PVC/SWA/PVC)

Single Core Cables 6.35/11 KV (Cu/SC/XLPE/SC/AWA/PVC)

Single Core Cables 6.35/11 KV (Cu/SC/XLPE/SC/CuT/PVC/AWA/PVC)

Three Core Cables 6.35/11KV (Cu/SC/XLPE/SC/SWA/PVC)

Three Core Cables 6.35/11 KV (Cu/SC/XLPE/SC/CuT/PVC/SWA/PVC)

Three Core Cables 6.35/11 KV (AL/SC/XLPE/SC/SWA/PVC)

Three Core Cables 6.35/11 KV (AL/SC/XLPE/SC/CuT/PVC/SWA/PVC)

Single Core Cables 8.7/15 KV (Cu/SC/XLPE/SC/AWA/PVC)

Single Core Cables 8.7/15 KV (Cu/SC/XLPE/SC/CuT/PVC)

Single Core Cables 8.7/15 KV (Cu/SC/XLPE/SC/CuT/PVC/AWA/PVC)

Three Core Cables 8.7 / 15 KV (Cu/SC/XLPE/SC/CuT/PVC)

Three Core Cables 8.7 / 15 KV. (Cu/SC/XLPE/SC/CuT/PVC/SWA/PVC)

Three Core Cables 8.7/15 KV (AL/SC/XLPE/SC/CuT/PVC/SWA/PVC)

Single Core Cables 12.7/22 KV (Cu/SC/XLPE/SC/CuT/PVC)

Three Core Cables 12.7/22 KV (Cu/SC/XLPE/SC/CuT/PVC)

Three Core Cables 12.7/22 KV (Cu/SC/XLPE/SC/CuT/PVC/SWA/PVC)

Three Core Cables 12.7/22 KV (AL/SC/XLPE/SC/CuT/PVC/SWA/PVC)

Single Core Cables 19/33 KV (Cu/SC/XLPE/SC/CuT/PVC/AWA/PVC)

Three Core Cables 19/33 KV (Cu/SC/XLPE/SC/CuT/PVC/SWA/PVC)

Three Core Cables 19/33 KV (AL/SC/XLPE/SC/CuT/PVC/SWA/PVC)

6. Packing & Shipping:

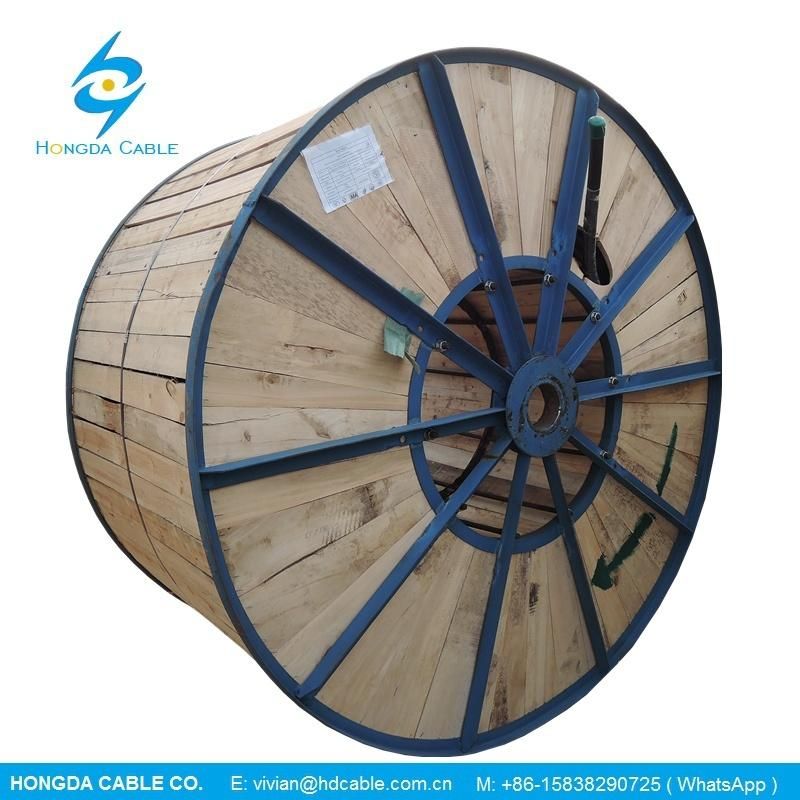

 Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.




7. Why Choose Us ?

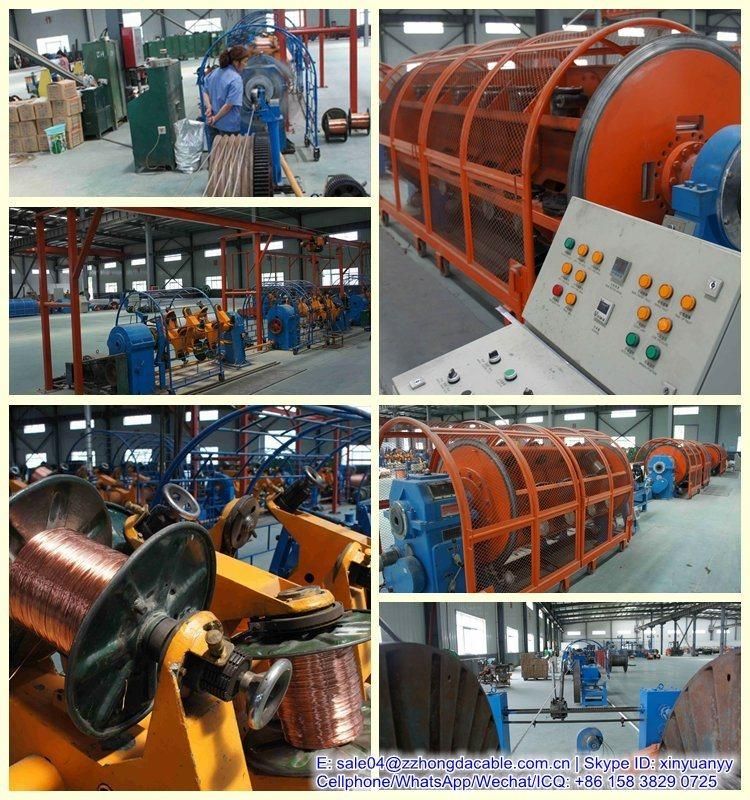

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas.


8. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment

Contact information:
Any needs or question ,please contact us ,we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperaton.
For more information, don't hesitate to call us on +86-15838290725
