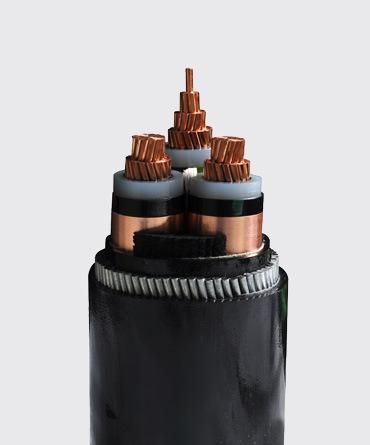

3 Core 8.7/15kv Al/Sc/XLPE/Sc/Cut/PVC Copper Tape Screened Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Al,SC,XLPE,SC,CuT,PVC
- Wire Core Material：Red Copper Wire
- Certification：ISO, CCC, SGS
- Model：Al,Sc,XLPE,Sc,Cut,PVC,Swa,PVC
- Brand：Hongda
- Inner Semi-Conductive Layer：Semi-Conductive Material
- Insulation：XLPE (Cross-Linked Polyethylene)
- Outer Semi-Conductive Layer：Semi-Conductive Material
- Screen：Copper Wires
- Sheath：PVC (Polyvinyl Chloride)
- Transport Package：500m Per Drum
- Specification：25 - 400 sq. mm
- Trademark：Hongda
- Origin：China
- HS Code：8544601200
- Production Capacity：5 Kilometers Per Day
Description
Nom. Cross-Section Area Unarmoured Cables Steel Wire Armoured Cables Nom. Insulation Thickness Copper Wire Screen Area Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight Copper Tape Screen Area Nom. Bedding Thickness Nom. Armour Wire Diameter Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight CU AL CU AL mm^2 mm mm2 mm mm kg/km mm2 mm mm mm mm kg/km 25 4.5 16 2.4 48.4 3000 2420 4.4 1.4 2.5 2.6 55.2 5600 5100 35 4.5 16 2.5 50.4 3450 2670 4.7 1.4 2.5 2.7 57.6 6130 5440 50 4.5 16 2.6 53.7 4140 3190 4.9 1.5 2.5 2.8 61.1 7010 6060 70 4.5 16 2.7 57.2 4980 3640 5.3 1.5 2.5 2.9 64.6 8030 6700 95 4.5 16 2.8 60.6 5900 4050 5.7 1.6 2.5 3.0 68.2 9160 7330 120 4.5 16 2.9 63.9 6870 4560 6.1 1.7 2.5 3.1 71.7 10340 8030 150 4.5 25 3.0 67.9 8030 5230 6.4 1.7 2.5 3.2 75.4 11730 8930 185 4.5 25 3.1 71.1 9310 5770 6.8 1.8 3.15 3.4 80.6 14170 10570 240 4.5 25 3.3 76.9 11390 6680 7.4 1.9 3.15 3.6 86.6 16670 11810 300 4.5 25 3.5 81.6 13510 7790 7.9 2.0 3.15 3.7 91.3 19140 13340 400 4.5 35 3.7 89.9 17130 9340 8.5 2.1 3.15 4.0 100.0 23360 15410 British Standard MV cables Voltage Rating BS6622 - standard British MV cable 6.35/11kV 19/33kV BS7835 - LSZH British MV cable 6.35/11kV 19/33kV European standard MV cables Voltage Rating N2XSY - single copper core XLPE insulated with PVC oversheath 6/10kV 12/20kV 18/30kV N2XS2Y - single copper core XLPE insulated with PE oversheath 6/10kV 12/20kV 18/30kV NA2XSY - single aluminium core XLPE insulated with PVC oversheath 6/10kV 12/20kV 18/30kV NA2XS2Y - single aluminium core XLPE insulated with PE oversheath 6/10kV 12/20kV 18/30kV N2XSEY - 3 copper core XLPE insulated with PVC oversheath 6/10kV N2XS(F)2Y - single copper core XLPE insulated with water blocking powder and PE oversheath 6/10kV 12/20kV 18/30kV N2XS(FL)2Y - single copper core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath 6/10kV 12/20kV NA2XS(F)2Y - single aluminium core XLPE insulated with water blocking powder and PE oversheath 6/10kV 12/20kV 18/30kV NA2XS(FL)2Y - single aluminium core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath 6/10kV 12/20kV 18/30kV Twisted three-core cable or triplex
Note : Other conductor sizes & core confi gurations are available upon request.
Medium Voltage cables, or MV cables, is a category defined by the International Electrotechnical Commission (IEC) as having a voltage rating of above 1kV up to 100kV. There does, however, remain some ambiguity over where the medium voltage cable band begins and ends, depending on the countries, the standard setting bodies, and the type of system used as historically engineers only referred to low voltage and high voltage. The concept of medium voltage was only introduced as the level of voltages increased and the need arose for a greater classification range, which now often includes extra low and extra high voltage.
Hongda Cable is a good supplier of medium voltage cables, which we consider to range between 3.3kV and 45kV. For higher voltages, please visit our high voltage cable specifications to find the right cable for your application. Our MV XLPE insulated cables are manufactured in accordance with various British and international Standards. These include armoured cable to British Standard BS6622 and BS7835; international Standards including IEC 60502-1 and IEC 60502-2; as well as a wide range of international construction specifications, including N2SXY, N2XS2Y, N2XSEY, NA2XSY and NA2XS2Y.
