• Model NO.：N2XCY Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, SGS
• Model：N2xcy, Yxc7V, Cu,XLPE,Cws,PVC
• Brand：Hongda
• Inner Semi-Conductive Layer：Semi-Conductive Material
• Insulation：XLPE (Cross-Linked Polyethylene)
• Screen：Copper Wires
• Sheath：PVC (Polyvinyl Chloride)
• Transport Package：500m Per Drum
• Specification：1.5 - 630 sq. mm
• Trademark：Hongda
• Origin：China
• HS Code：8544601200
• Production Capacity：5 Kilometers Per Day

Max. operating temperature: 90°CMax. short circuit temperature: 250°C (max. 5 sn.)Rated voltage: 0.6/1 kVMin. bending radius: 15 x DD     : Cable outer diameter

Application
In door installations, in cable ducts, outdoor and underground for power stations, industrial plants and switching stations as well as local supply system if increased protection is necessary.

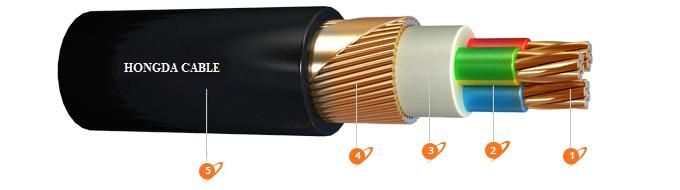

Construction

 1. Stranded copper conductor2. Inner semi-conductive layer3. XLPE insulation4. Copper wire screen   Polyester tape5.  PVC outer jacket

Medium Voltage cables, or MV cables, is a category defined by the International Electrotechnical Commission (IEC) as having a voltage rating of above 1kV up to 100kV. There does, however, remain some ambiguity over where the medium voltage cable band begins and ends, depending on the countries, the standard setting bodies, and the type of system used as historically engineers only referred to low voltage and high voltage. The concept of medium voltage was only introduced as the level of voltages increased and the need arose for a greater classification range, which now often includes extra low and extra high voltage.

Hongda Cable is a good supplier of medium voltage cables, which we consider to range between 3.3kV and 45kV. For higher voltages, please visit our high voltage cable specifications to find the right cable for your application.  Our MV XLPE insulated cables are manufactured in accordance with various British and international Standards. These include armoured cable to British Standard BS6622 and BS7835; international Standards including IEC 60502-1 and IEC 60502-2; as well as a wide range of international construction specifications, including N2SXY, N2XS2Y, N2XSEY, NA2XSY and NA2XS2Y.

Cable Specifications

Nominal
Cross SectionDiameter
(App.)Total Weight
(App)Delivery
LenghtResistance at 20°CCurrent Carying Capacitymm²mmkg/kmmohm/kmToprakta 20°C de AHavada 30°C de A3x1,5/1,512,8230100012,130243x2,5/2,513,728510007,4140323x4/414,736510004,6152423x6/615,847510003,0864533x10/1018,669010001,8386733x16/1620,695010001,15111963x25/1625128010000,7271431303x35/1626160010000,5241731603x50/2529,5216010000,3872051953x70/3534307010000,2682522473x95/5039408010000,1933033053x120/704452505000,1533463553x150/704962505000,1243904073x185/955579505000,09914414693x240/12062102505000,07545115513x300/15067130005000,06015806384x1,5/1,513,6260100012,130244x2,5/2,514,832510007,4140324x4/415,841510004,6152424x6/61754010003,0864534x10/102078510001,8386734x16/1622,4112010001,15111964x25/1626,2159510000,7271431304x35/1628,7203510000,5241731604x50/2533,5273010000,3872051954x70/3539389010000,2682522474x95/5043,551405000,1933033054x120/704966005000,1533463554x150/705379205000,1243904074x185/956099505000,09914414694x240/12067129505000,07545115514x300/15074160605000,0601580638



Twisted three-core cable or triplex Armouring:for mechanical protection. Aluminium wire armoured for single-core cables, Galvanised steel wire armour, strip or tape.Tapes:Separator tapes to facilitate peeling, water-swellable tapes to prevent water ingress, Conductive tape for core binding.Outer Sheath:compounds with various properties, tailored to the specific application's requirements, including resistance to oils, greases, rodents, termites, UV and flame, as well as zero halogen emissions.
5. Related Products:
NA2XS(FL)2Y Aluminium Conductor XLPE PE- 18/30 (36)kV Cable
NA2XS(FL)2Y Aluminium Conductor XLPE PE-12/20 (24)kV Cable
NA2XS(FL)2Y Aluminium conductor XLPE PE-6/10 (12)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 18/30k (36)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 12/20 (24)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 6/10 (12)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 18/30k (36)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 12/20 (24)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 6/10 (12)kV Cable
N2XS(FL)2Y - 12/20 (24)kV Cable
N2XS(FL)2Y - 6/10 (12)kV Cable
N2XS(F)2Y - 18/30 (36)kV Cable
N2XS(F)2Y XLPE PE - 12/20 (24)kV Cable
N2XS(F)2Y XLPE PE - 6/10 (12)kV Cable
N2XS2Y XLPE PE - 18/30 (36)kV Cable
N2XS2Y XLPE PE - 12/20 (24)kV Cable
N2XS2Y XLPE PE - 6/10 (12)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 18/30 (36)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 12/20 (24)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 6/10 (12)kV Cable
N2XSEY XLPE PVC - 6/10 (12)kV Cable
N2XSY XLPE PVC - 18/30 (36)kV Cable
N2XSY XLPE PVC - 12/20 (24)kV Cable
N2XSY XLPE PVC - 6/10 (12)kV Cable
BS 6622 XLPE MDPE 6.35/11 (12)kV Cable
BS 6622 XLPE PVC 6.35/11 (12)kV Cable
BS 7835 XLPE LSZH 6.35/11 (12)kV
BS 7835 XLPE LSZH 19/33 (36)kV
BS 6622 XLPE PVC 19/33 (36)kV

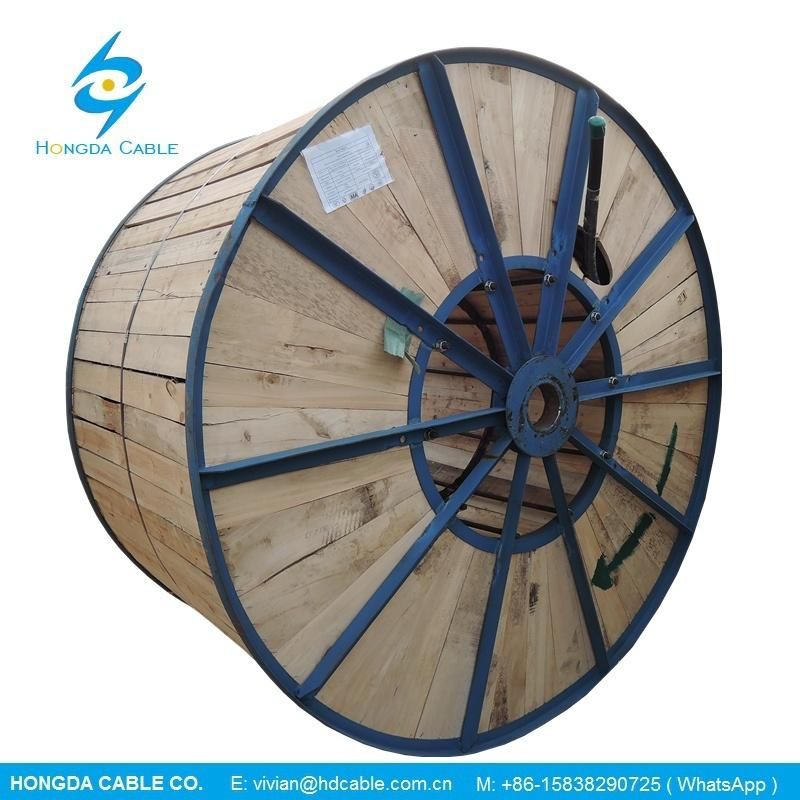

6. Packing & Shipping:




7. Why Choose Us ?

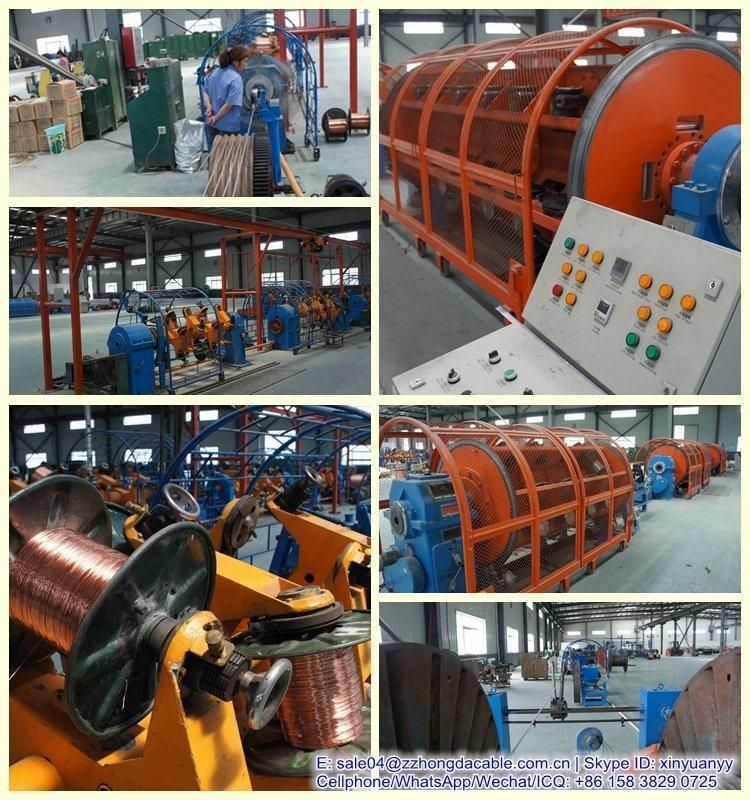

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas.


8. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
