• Model NO.：Telephone Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO
• Model：MHYV-xx
• Shape：Two Pair Twisted Wire
• Transport Package：Carton in Sack Bag
• Origin：China
• Production Capacity：100000000,Year

ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²
 Electrical Properties:

Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67%
 Technical Performance:

	Attenuation	RL	Next	PS Next
(MHZ)	(dB/100m)	(dB)	(dB)	(dB)
1MHZ	2.6	12	41.3	41.3
4MHZ	5.6	12	32.3	32.3
8MHZ	8.5	12	27.8	27.8
10MHZ	9.7	12	26.3	26.3
16MHZ	13.1	12	23.3	23.3

Packing

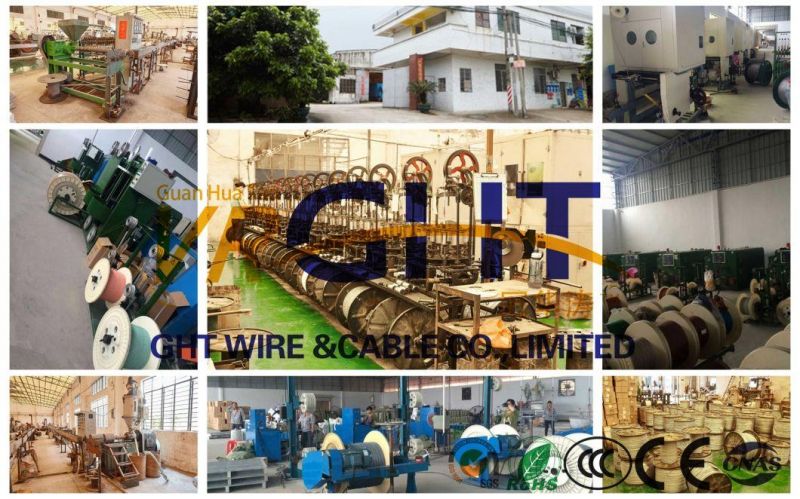

FACTORY PRESENTATION & CERTIFICATE
