• Model NO.：AL,XLPE,SWA,PVC
• Wire Core Material：Aluminum
• Certification：ISO, CCC, SGS
• Model：XLPE Swa,Awa PVC Power Cable
• Brand：Hongda
• Standard：IEC 60332, 1, IEC 60502-1, Ce, RoHS
• Rated Voltage：0.6,1 Kv
• Transport Package：Drum or as Customer Require
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：10km,Day

Basic Info.

Model NO. AL/XLPE/SWA/PVC Wire Core Material Aluminum Certification ISO, CCC, SGS Model XLPE Swa/Awa PVC Power Cable Brand Hongda Standard IEC 60332, 1, IEC 60502-1, Ce, RoHS Rated Voltage 0.6/1 Kv Transport Package Drum or as Customer Require Specification 1.5mm2 to 400mm2 Trademark Hongda Origin China HS Code 8544492100 Production Capacity 10km/Day

Product Description

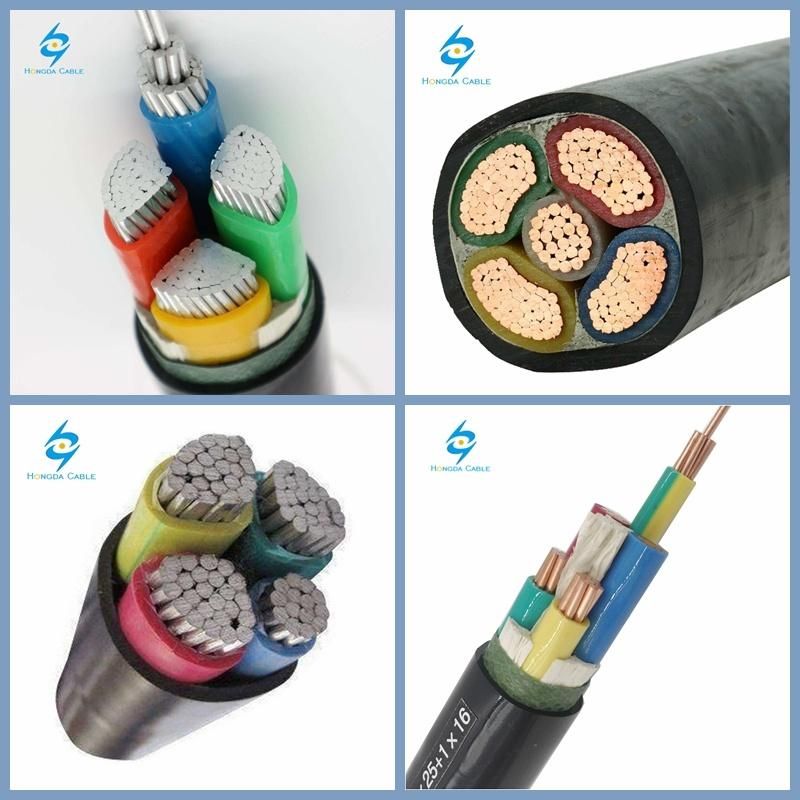

flexible aluminum xlpe swa/awa pvc power cable 240 sq mm

pvc power cable STRUCTURE

pvc power cable Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

pvc power cable Standard

IEC 60502-1

pvc power cable Construction



Conductors	The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.
Insulation	PVC Insulation material and thickness shall be as per IEC 60502-1
Assembly / Inner Covering	The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.
Armour	Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.
Outer Sheath	Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.
Fire Performance of Cable Sheaths	Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.

pvc power cable Dimensions

Single core ( aluminum wire armoured)	Two cores (Galvanized steel wire armoured)	Three cores (Galvanized steel wire armoured)	Three cores+1 (Galvanized steel wire armoured)	Four cores (Galvanized steel wire armoured)
Nominal Cross Section (mm2)
	2x2.5	3x2.5
1x4	2x4	3x4		4x4
1x6	2x6	3x6		4x6
1x10	2x10	3x10	3x10+1x6	4x10
1x16	2x16	3x16	3x16+1x10	4x16
1x25	2x25	3x25	3x25+1x16	4x25
1x35	2x35	3x35	3x35+1x16	4x35
1x50	2x50	3x50	3x50+1x25	4x50
1x70	2x70	3x75	3x70+1x35	4x75
1x95	2x95	3x95	3x95+1x50	4x95
1x120	2x120	3x120	3x120+1x70	4x120
1x150	2x150	3x150	3x150+1x70	4x150
1x185	2x185	3x185	3x185+1x95	4x185
1x240	2x240	3x240	3x240+1x120	4x240
1x300	2x300	3x300	3x300+1x150	4x300
1x400	2x400	3x400	3x400+1x185	4x400
1x500		3x500	3x500+1x240	4x500
1x630

Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.

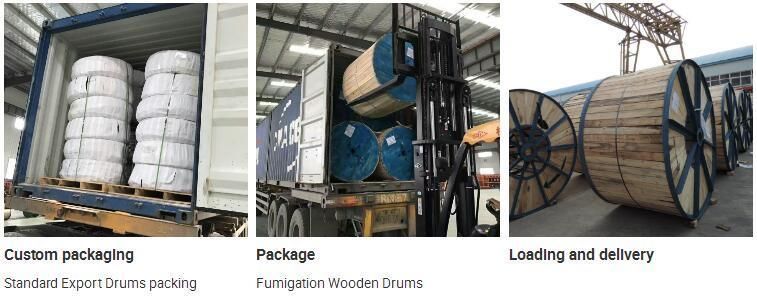

Packing & Shipping:

Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.


Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas


FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

We are looking forward to your inquiry and nice cooperation.
