1*185mm2 Single Core Copper XLPE/PE Sheath Power Cable 600/1000V

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station
  • Voltage：0.6,1kv, Low Voltage
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC,PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：1*185mm2
  • Wire Core Material：Copper
  • Certification：ISO, CCC, CE, RoHS
  • Model：Yjy
  • Brand：Hongda
  • Armour：Unarmour
  • Conductor Material：Copper
  • Standard：IEC60502-1
  • Quality Guarantee：Ten Years
  • Core：1cores
  • Insulated Color：Red
  • Sheath Color：Black
  • Sample：Yes
  • Manufacture：Yes
  • Transport Package：Wooden Drum
  • Specification：1*185mm2 Cable
  • Trademark：Hongda
  • Origin：China, Henan
  • HS Code：8544492100
  • Production Capacity：3000km,Per Months

Description

8Permitted temperature on core:  a) Long-term working temperatureºC-15~90b) Max. temperature in short circuit   ºC2509Max. DC. Conductor resistance at 20ºCohm/km0.0991

5. Construction.

Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Colour identification
1 Core : Red or Black
2 Cores : Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
The above identifying can be changed as order
Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour:Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.
1*185mm2 Single Core Copper XLPE/PE Sheath Power Cable 600/1000V

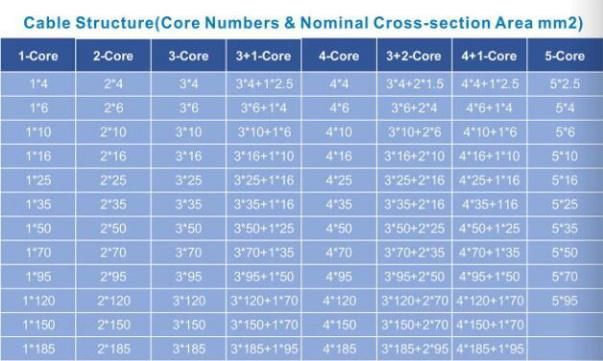

1. 1 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.

2. 2 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

3. 3 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

4. 4 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

5. 5 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

6. 3+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

7. 3+2 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

8. 4+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

6. Packaging&Delivery.

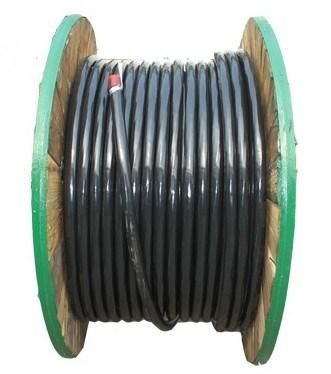

1*185mm2 Single Core Copper XLPE/PE Sheath Power Cable 600/1000V   1*185mm2 Single Core Copper XLPE/PE Sheath Power Cable 600/1000V
Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 7 days(detailly depend on the order quantity)
