• Model NO.：19,33kV Cables
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, SGS
• Model：N2sxy, N2xs2y, N2xsey, Na2xsy and Na2xs2y.
• Brand：Hongda
• Inner Semi-Conductive Layer：Semi-Conductive Material
• Insulation：XLPE (Cross-Linked Polyethylene)
• Outer Semi-Conductive Layer：Semi-Conductive Material
• Screen：Copper Wires
• Sheath：PVC (Polyvinyl Chloride)
• Transport Package：500m Per Drum
• Specification：1.5 - 630 sq. mm
• Trademark：Hongda
• Origin：China
• HS Code：8544601200
• Production Capacity：5 Kilometers Per Day

British Standard MV cablesVoltage RatingBS6622 - standard British MV cable6.35/11kV19/33kV BS7835 - LSZH British MV cable6.35/11kV19/33kV European standard MV cablesVoltage RatingN2XSY - single copper core XLPE insulated with PVC oversheath6/10kV12/20kV18/30kVN2XS2Y - single copper core XLPE insulated with PE oversheath6/10kV12/20kV18/30kVNA2XSY - single aluminium core XLPE insulated with PVC oversheath6/10kV12/20kV18/30kVNA2XS2Y - single aluminium core XLPE insulated with PE oversheath6/10kV12/20kV18/30kVN2XSEY - 3 copper core XLPE insulated with PVC oversheath6/10kV  N2XS(F)2Y - single copper core XLPE insulated with water blocking powder and PE oversheath6/10kV12/20kV18/30kVN2XS(FL)2Y  - single copper core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath6/10kV12/20kV NA2XS(F)2Y - single aluminium core XLPE insulated with water blocking powder and PE oversheath6/10kV12/20kV18/30kVNA2XS(FL)2Y - single aluminium core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath6/10kV12/20kV18/30kV

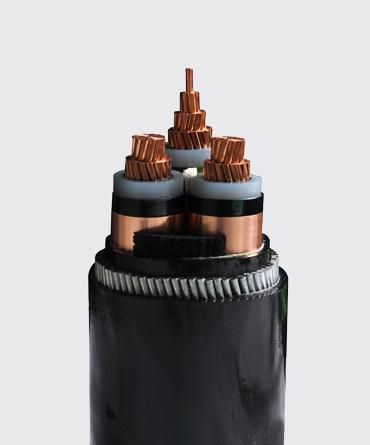

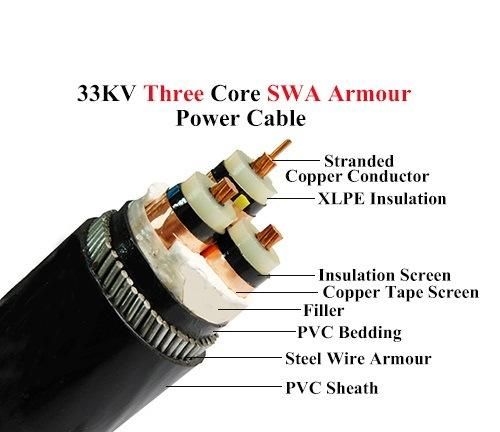

Twisted three-core cable or triplex Armouring:for mechanical protection. Aluminium wire armoured for single-core cables, Galvanised steel wire armour, strip or tape.Tapes:Separator tapes to facilitate peeling, water-swellable tapes to prevent water ingress, Conductive tape for core binding.Outer Sheath:compounds with various properties, tailored to the specific application's requirements, including resistance to oils, greases, rodents, termites, UV and flame, as well as zero halogen emissions.

5. Related Products:
NA2XS(FL)2Y Aluminium Conductor XLPE PE- 18/30 (36)kV Cable
NA2XS(FL)2Y Aluminium Conductor XLPE PE-12/20 (24)kV Cable
NA2XS(FL)2Y Aluminium conductor XLPE PE-6/10 (12)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 18/30k (36)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 12/20 (24)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 6/10 (12)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 18/30k (36)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 12/20 (24)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 6/10 (12)kV Cable
N2XS(FL)2Y - 12/20 (24)kV Cable
N2XS(FL)2Y - 6/10 (12)kV Cable
N2XS(F)2Y - 18/30 (36)kV Cable
N2XS(F)2Y XLPE PE - 12/20 (24)kV Cable
N2XS(F)2Y XLPE PE - 6/10 (12)kV Cable
N2XS2Y XLPE PE - 18/30 (36)kV Cable
N2XS2Y XLPE PE - 12/20 (24)kV Cable
N2XS2Y XLPE PE - 6/10 (12)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 18/30 (36)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 12/20 (24)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 6/10 (12)kV Cable
N2XSEY XLPE PVC - 6/10 (12)kV Cable
N2XSY XLPE PVC - 18/30 (36)kV Cable
N2XSY XLPE PVC - 12/20 (24)kV Cable
N2XSY XLPE PVC - 6/10 (12)kV Cable
BS 6622 XLPE MDPE 6.35/11 (12)kV Cable
BS 6622 XLPE PVC 6.35/11 (12)kV Cable
BS 7835 XLPE LSZH 6.35/11 (12)kV
BS 7835 XLPE LSZH 19/33 (36)kV
BS 6622 XLPE PVC 19/33 (36)kV

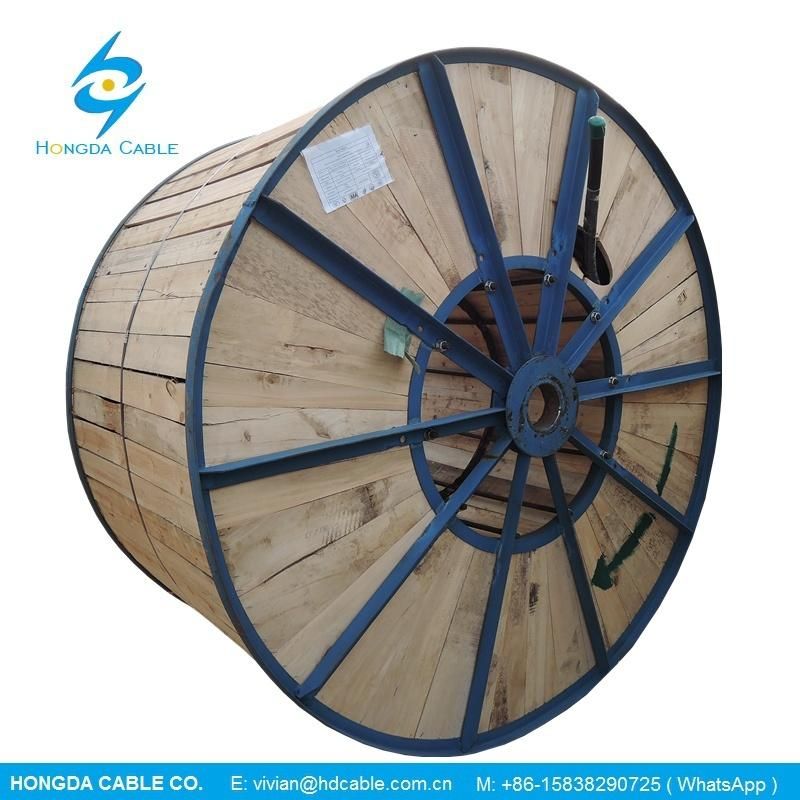

6. Packing & Shipping:




7. Why Choose Us ?

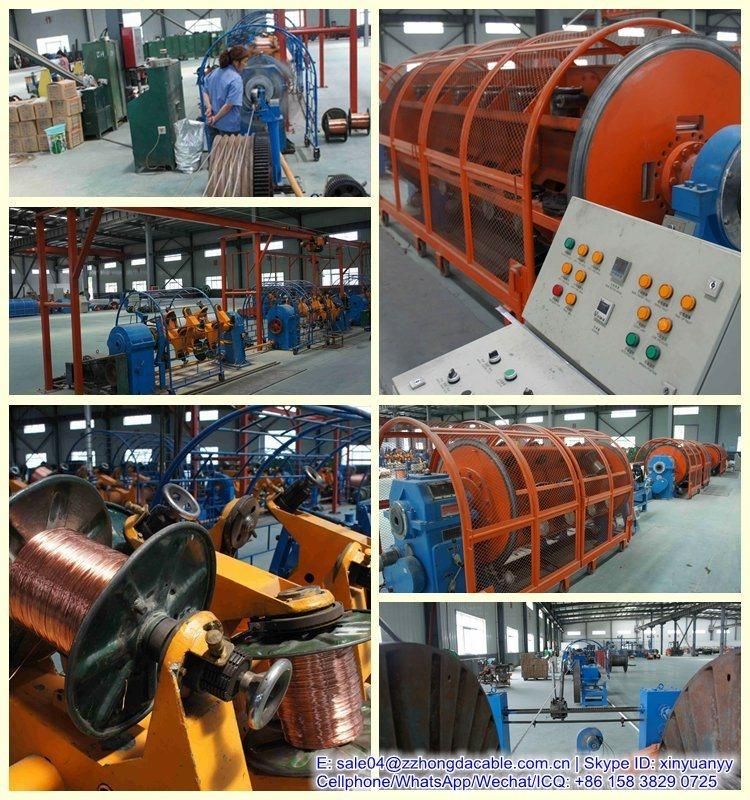

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas.


8. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
