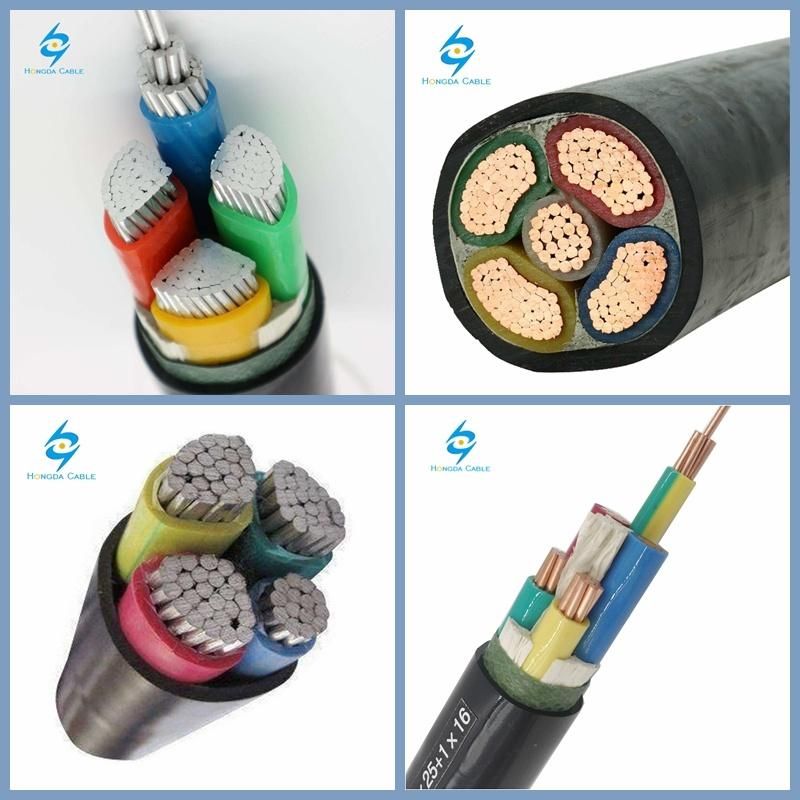

Nyy Nayy-J -O PVC PVC 0.6/1kv Direct Burial Underground Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：NYY , NAYY
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, SGS
- Model：Nyy , Nayy-J -O
- Brand：Hongda
- Working Voltage：600,1000 Volts
- Test Voltage：4000 Volts
- Flexing Bending Radius：15 X D
- Static Bending Radius：12 X D
- Flame Retardant：IEC 60332.1

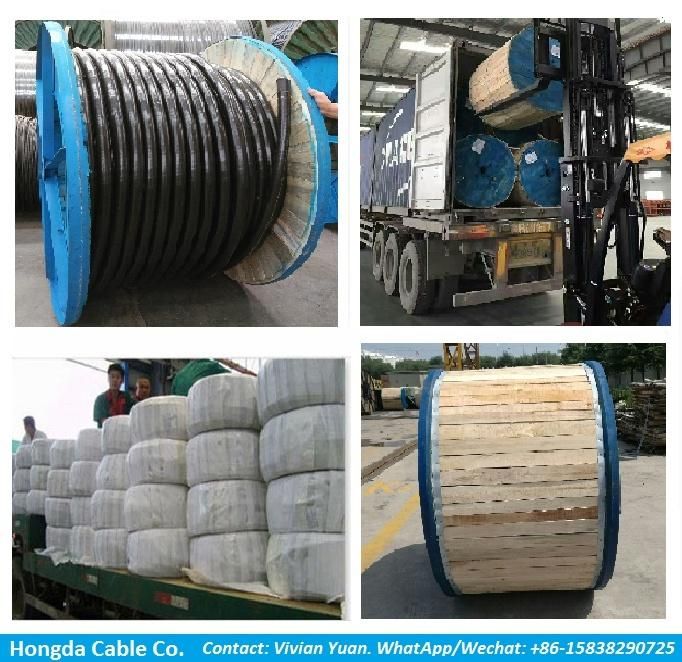

- Transport Package：500m or 1000m Per Drum, Special Customized
- Specification：10mm2 to 300mm2
- Trademark：Hongda
- Origin：China
- HS Code：8544492100
- Production Capacity：600km Per Month
Description
ConductorInductance Current - Carrying Short circuit Nom. Cross DC Resistance AC Resistance in air in ground (mm²) Max. (Ω/km) Max. (Ω/km) (mH/km) Max. (A) Max. (A) Max. (kA) 10 3.08 3.701 0.269 53 59 0.76 16 1.91 2.295 0.253 71 77 1.22 25 1.20 1.442 0.257 93 99 1.90 35 0.868 1.043 0.247 115 119 2.66 50 0.641 0.770 0.247 134 135 3.80 70 0.443 0.533 0.238 167 165 5.32 95 0.320 0.385 0.238 207 198 7.22 120 0.253 0.305 0.233 240 225 9.12 150 0.206 0.248 0.235 277 254 11.40 185 0.164 0.198 0.233 316 286 14.06 240 0.125 0.152 0.232 377 332 18.24 300 0.100 0.122 0.231 433 376 22.80
Construction Nominal Overall Diameter Nominal Weight No. of cores×mm² mm kg/km 1×25 re 13.0 200 1×50 rm 16.5 310 1×70 rm 18.5 400 1×95 rm 21.0 520 1×120 rm 22.5 600 1×150 rm 23.5 700 1×185 rm 25.5 870 1×240 rm 28.5 1090 1×300 rm 31.5 1335 1×400 rm 35.5 1685 1×500 rm 39.0 2075 1×630 rm 43.0 2540 4×25 re 27.0 1000 4×35 re 29.0 1200 4×50 se 30.5 1350 4×70 se 34.5 1750 4×120 se 42.5 2630 4×150 se 45.5 3000 4×185 se 50.5 3780 4×240 se 54.0 4740 4G25 re 27.0 1000 4G35 re 29.0 1200 4G50 se 30.5 1350 4G70 se 34.5 1750 4G95 se 38.5 2250 4G120 se 42.5 2750 4G150 se 45.5 3200 4G185 se 50.5 3950 4G240 se 54.0 4700 4G240 sm 55.5 4960 4G150 se+1×1.5 re 45.5 3010 4G150 se+2×1.5 re 45.5 3020 1x25rm 13 240 380 1x35rm 14 336 447 1x50rm 15 480 650 1x70rm 17 672 864 1x185rm 25 1776 2080 3×1,5re 12 43 223 4×1,5re 13 58 256 5×1,5re 14 72 293 7×1,5re 15 101 360 10×1,5re 18 144 520 12×1,5re 19 173 560 14×1,5re 20 202 620 16×1,5re 21 230 680 19×1,5re 22 274 760 24×1,5re 24 346 900 30×1,5re 26 432 1100 3×2,5re 13 72 272 4×2,5re 14 96 316 5×2,5re 15 120 323 7×2,5re 16 168 450 10×2,5re 20 240 630 12×2,5re 20 288 680 14×2,5re 21 336 790 19×2,5re 23 456 990 24×2,5re 26 576 1300 30×2,5re 28 720 1400 3x4re 15 115 373 4x4re 16 154 439 5x4re 17 192 510 3x6re 16 173 466 4x6re 17 230 547 5x6re 19 288 640 3x10re 18 288 629 4x10re 19 384 743 5x10re 21 480 899 3x16re 20 461 850 4x16re 22 614 1039 5x16re 23 768 1240 3x25rm/16re 25 874 1595 4x25rm 27 960 1620 3x35sm/16re 27 1162 1718 4x35sm 27 1344 1916 3x50sm/25rm 31 1680 2383 4x50sm 31 1920 2639 3x70sm/35sm 33 2352 3196 4x70sm 35 2688 3576 3x95sm/50sm 38 3216 4271 4x95sm 40 3648 4746 3x120sm/70sm 41 4128 5281 4x120sm 43 4608 5813 3x150sm/70sm 46 4992 6408 4x150sm 48 5760 7263 3x185sm/95sm 50 6240 7909 4x185sm 53 7104 8905 3x240sm/120sm 57 8064 10162 4x240sm 60 9216 11430 NYY-O 1x10re 10 96 176 1x16re 11 154 239 1x25rm 13 240 380 1x35rm 14 336 447 1x50rm 15 480 650 1x70rm 17 672 864 1x95rm 19 912 1132 1x120rm 21 1152 1405 1x150rm 22 1440 1710 1x185rm 25 1776 2080 1x240rm 27 2304 2669 1x300rm 30 2880 3305 1x500rm 39 4800 5400 2×1,5re 11 29 210 2×2,5re 12 48 250 2x4re 14 77 360 2x6re 15 115 400 2x10re 17 192 500 4x16re 22 614 1039 4x25rm 27 960 1620 4x50sm 31 1920 2639 4x70sm 35 2688 3576 4x95sm 40 3648 4746
Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
If you have another question, pls feel free to contact us below
Capacity at 30° C *
current at 1 sec
Section Area
at 20°C
at 70°C
NAYY -J -O AL PVC PVC 0.6/1KV POWER CABLE Specification
NYY -J -O PVC PVC 0.6/1KV POWER CABLE Specification
