• Model NO.：IEC 60502 power Cable
• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC, CE, RoHS
• Model：IEC 60502
• Brand：Hongda
• Manufacture：Yes
• Sample：Yes
• Core：Multicores
• Conductor Material：Copper,Aluminum
• Insulated Color：as Your Requirement
• Sheath Color：Black
• Standard：IEC 60502
• Guarantee：10 Years
• Armor：Swa,Awa
• Transport Package：Wooden Drum
• Specification：35-1000mm2
• Trademark：Hongda
• Origin：China, Henan
• HS Code：8544492100
• Production Capacity：300km,Per Months

Code-Designation for Power Cables with PVC or XLPE Insulation

Design	Identification of Design	Explanations
Conductor	N	According to VDE Standard (No abbreviation for copper conductor)
	A	Aluminum conductors
	Y	Insulation of thermoplastic Polyvinyl chloride (PVC)
	2X	Insulation cross-linked Polyethylene (XLPE)
Concentric Conductor, Shielding	C	Concentric conductors of copper wires and copper tape, helically wounded
	CW	Concentric conductors of copper wires in wave conal formation and and copper tape, helically wounded
	CE	Concentric conductors of copper wires and copper tape over each individual conductor, helically wounded
Shielding	S	Shielding of copper wires and copper tape, helically wounded
	SE	Shielding of copper wires and copper tape over each individual conductor, helically wounded
	(F)	Longitudinally water-proof shielding
Armor	B	Armor of steel tape
	F	Armor of galvanized flat steel wires
	G	Counter helix of galvanized steel tape
Jacket	K	Lead jacket
Outer Jacket	Y	PVC jacket
	2Y	PE jacket
Cable for U0/U 0.6/1 kV are additionally designated with
	-J	Cables with green-yellow (green-natural) conductor are marked with protective conductor
	-O	Cables without green-yellow (green-natural) conductor are marked without protective conductor



N	MV cable according to DIN VDE 0276
A	Aluminium (Al) conductor
[blank]	Copper (Cu) conductor
2X	Cross-linked polyethylene (XLPE) insulation
S	Screen of copper wires and copper tape, helically wound
SE	Screen of copper wires and copper tape over each individual core, helically wound
Y	Polyvinyl Chloride (PVC) sheath
2Y	Polyethylene (PE) sheath
(F)2Y	Longitudinal water tightness with PE sheath
(FL)2Y	Longitudinal and transversal water tightness with Al/PE sheath


Packaging&Delivery.

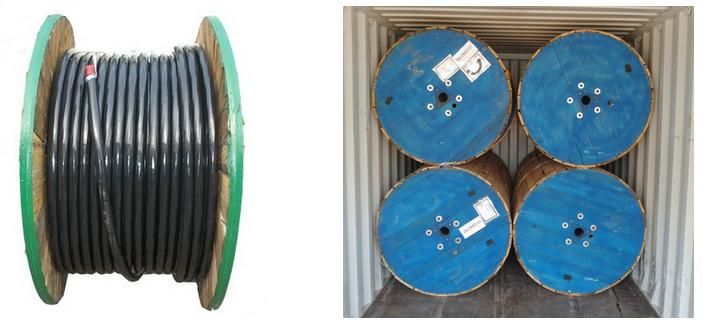

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 7 days(detailly depend on the order quantity)
