• Model NO.：U-1000 Cable Rvfv Arvfv Cable
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, SGS
• Model：U-1000 RO2V, Ar2V
• Brand：Hongda
• Standard：NF C 32-322
• Rated Voltage：600,1000 Volts
• Armored：Steel Tape Armor
• Suitable for：Direct Burial Without Extra Mechanical Protection
• Flame Retardant：NF C 32-070 C2
• Transport Package：Drum or as Customer Require
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：5km,Day

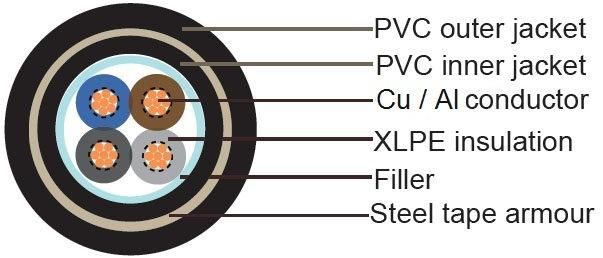

Conductor:: rigid red copper / Aluminum wire, class  1 (Φ ≤ 4 mm²)
  stranded circular compacted copper / Aluminum class 2 (Φ>4mm²)Insulation: XLPE crosslinked polyethylene (no dry cool)Outer sheath: PVCScreen: noDrain wire: noLead sheath: noConcentric cond.: noneInsulation integrity: noCircuit integrity: noArmouring: Steel Tape Armoured U-1000 Rvfv Arvfv Cable - Technical data and testsStandards: NF C 32-322Nominal voltage U0/U: 0,6/1 kVTest voltage (50 Hz): 4 kVMaximun voltage Um: 1,2 kVMaximun operating temperature: +90° CMaximun short circuit temperature: +250° CMin. operating temperature
(without mechanical shocks): -25° CMinimum installation and use temp.: -10° CMinimum bending radius per
D cable diameter (in mm): 6 x DCore colourssingle core : black
two cores : blue-brown
three  cores : brown-black-blue  (1,5/2,5 mmq); brown-black-gray (4 mmq)  or Y/G-blue-brown)
four cores : blue-brown-black-gray (or Y/G instead blue)
five cores : blue-brown-black-gray-Y/G (or black instead Y/G)Sheath colour: black
U-1000 RVFV
Low Voltage Power Cable (0.6/1 kV)

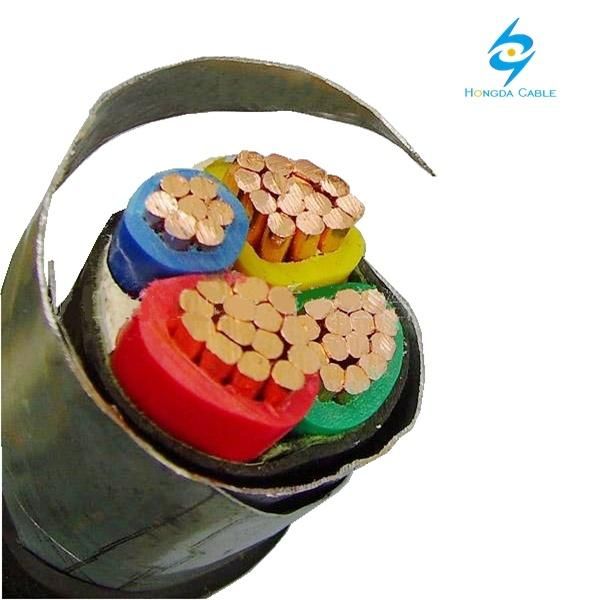

XLPE insulated, copper conductor, Steel tape armor, PVC outer sheath cable

Application and Description

With a sheath and armor, U-1000 RVFV is an enhanced version of the cables and U-1000 R2V They are suitable for direct burial without extra mechanical protection, fixed to the walls, laid on cable trays or raceways. May also be suitable for use in premises which poses a risk of explosion (rank BE3 NF C 15-100) with mechanical protection is necessary and in this case the intensity must be reduced by 15%.

Cable Parameter

AWG	Cross Section	Insulation thickness	Amour thickness	Minimum Sheath thickness	Maximum Overall diameter	Approx Cable weight
	mm^2	mm	mm	mm	mm	kg/km
16	2x1.5	0.7	0.2	1.3	11.5	230
14	2x2.5	0.7	0.2	1.3	12.5	275
12	2x4	0.7	0.2	1.4	13.5	330
10	2x6	0.7	0.2	1.4	15.5	430
8	2x10	0.7	0.2	1.4	16.5	555
6	2x16	0.7	0.2	1.5	19	770
4	2x25	0.9	0.2	1.6	22.5	1080
2	2x35	0.9	0.2	1.7	25	1390
16	3x1.5	0.7	0.2	1.3	12	255
14	3x2.5	0.7	0.2	1.3	13	305
12	3x4	0.7	0.2	1.4	14	380
10	3x6	0.7	0.2	1.4	16	500
8	3x10	0.7	0.2	1.5	17.5	665
6	3x16	0.7	0.2	1.5	20	930
4	3x25	0.9	0.2	1.6	24	1325
2	3x35	0.9	0.2	1.7	26.5	1720
1	3x50	0.9	0.2	1.8	29	2125
2/0	3x70	1.1	0.2	2	34.5	3080
3/0	3x95	1.1	0.5	2.1	40	4505
4/0	3x120	1.2	0.5	2.3	44.5	5540
300MCM	3x150	1.4	0.5	2.4	48.5	6655
500MCM	3x185	1.6	0.5	2.5	53.5	8150
750MCM	3x240	1.7	0.5	2.7	61	10575
-	3x300	1.8	0.5	2.9	66.5	13055
1	3x50+35	1.0/09	0.2	1.9	33	2730
2/0	3x70+50	1.1/0.9	0.2	2	36	3440
3/0	3x95+50	1.1/1.0	0.5	2.2	42.5	5080
4/0	3x120+70	1.2/1.1	0.5	2.3	46.5	6275
300MCM	3x150+70	1.4/1.1	0.5	2.5	50	7340
500MCM	3x185+70	1.6/1.1	0.5	2.6	56	8975
750MCM	3x240+95	1.7/1.1	0.5	2.8	62.5	11435
16	4x1.5	0.7	0.2	1.3	13	290
14	4x2.5	0.7	0.2	1.4	14	355
12	4x4	0.7	0.2	1.4	15	440
10	4x6	0.7	0.2	1.4	17	585
8	4x10	0.7	0.2	1.5	19	800
6	4x16	0.7	0.2	1.6	22	1120
4	4x25	0.9	0.2	1.7	26	1650
2	4x35	0.9	0.2	1.8	29	2135
1	4x50	1	0.2	1.9	32.5	2745
2/0	4x70	1.1	0.5	2.1	39	4295
3/0	4x95	1.1	0.5	2.3	44.5	5660
4/0	4x120	1.2	0.5	2.4	48.5	6880
300MCM	4x150	1.4	0.5	2.6	53	8315
500MCM	4x185	1.6	0.5	2.7	60.5	10510
750MCM	4x240	1.7	0.5	2.9	67	13370
-	4x300	1.8	0.5	3.1	73	16360
16	5x1.5	0.7	0.2	1.4	14	335
14	5x2.5	0.7	0.2	1.4	15	415
12	5x4	0.7	0.2	1.4	16	515
10	5x6	0.7	0.2	1.5	18.5	705
8	5x10	0.7	0.2	1.6	21	955
6	5x16	0.7	0.2	1.8	23.5	1340
4	5x25	0.9	0.2	1.8	29.5	2085
16	7x1.5	0.7	0.2	1.4	15	395
14	7x2.5	0.7	0.2	1.4	16	495
16	12x1.5	0.7	0.2	1.5	19	605
14	12x2.5	0.7	0.2	1.5	20.5	750
16	19x1.5	0.7	0.2	1.5	21.5	775
14	19x2.5	0.7	0.2	1.6	24	1045
16	24x1.5	0.7	0.2	1.6	24.5	980
14	24x2.5	0.7	0.5	1.7	29	1570
16	27x1.5	0.7	0.2	1.7	25	1050
14	27x2.5	0.7	0.2	1.8	28.5	1410
16	37x1.5	0.7	0.2	1.7	28	1320
14	37x2.5	0.7	0.2	1.8	31.5	1790



U-1000 ARVFV
Low Voltage Power Cable (0.6/1 kV)
XLPE insulated, aluminum conductor, Steel tape armor, PVC outer sheath cable

Application and Description

With a sheath and armor, U-1000 ARVFV is an enhanced version of the cables and U-1000 AR2V. They can be used in all industrial installations requiring mechanical protection.
These cables can be provided in hard and SH C1 (NF C 32-323) and HR (resistant to aliphatic hydrocarbons). The design and characteristics of the materials comply with IEC 60502-1.

Cable Parameter

AWG	Cross Section	Insulation thickness	Amour thickness	Minimum Sheath thickness	Maximum Overall diameter	Approx Cable weight
	mm^2	mm	mm	mm	mm	kg/km
8	2x10	0.7	0.2	1.4	18.5	420
6	2x16	0.7	0.2	1.5	20.5	540
4	2x25	0.9	0.2	1.6	24.5	760
2	2x35	0.9	0.2	1.7	27	930
8	3x10	0.7	0.2	1.5	19	470
6	3x16	0.7	0.2	1.5	22	590
4	3x25	0.9	0.2	1.6	26	830
2	3x35	0.9	0.2	1.7	29	1030
1	3x50	0.9	0.2	1.8	32.5	1290
2/0	3x70	1.1	0.2	2	37.5	1710
3/0	3x95	1.1	0.5	2.1	43.5	2610
4/0	3x120	1.2	0.5	2.3	47.5	3110
300MCM	3x150	1.4	0.5	2.4	53	3770
500MCM	3x185	1.6	0.5	2.5	58	4540
750MCM	3x240	1.7	0.5	2.7	65.5	5620
-	3x300	1.8	0.5	2.9	72	6830
1	3x50+35	1.0/09	0.2	1.9	34.5	1500
2/0	3x70+50	1.1/0.9	0.2	2	40	2000
3/0	3x95+50	1.1/1.0	0.5	2.2	45	2870
4/0	3x120+70	1.2/1.1	0.5	2.3	50	3460
300MCM	3x150+70	1.4/1.1	0.5	2.5	54	4090
500MCM	3x185+70	1.6/1.1	0.5	2.6	59	4980
750MCM	3x240+95	1.7/1.1	0.5	2.8	66	6210
8	4x10	0.7	0.2	1.5	20.5	540
6	4x16	0.7	0.2	1.6	23.5	700
4	4x25	0.9	0.2	1.7	28	1000
2	4x35	0.9	0.2	1.8	31.5	1230
1	4x50	1	0.2	1.9	35.5	1550
2/0	4x70	1.1	0.5	2.1	42.5	2490
3/0	4x95	1.1	0.5	2.3	47.5	3120
4/0	4x120	1.2	0.5	2.4	53	3780
300MCM	4x150	1.4	0.5	2.6	58.5	4550
500MCM	4x185	1.6	0.5	2.7	64.5	5490
750MCM	4x240	1.7	0.5	2.9	72.5	6860
-	4x300	1.8	0.5	3.1	79.5	8250
8	5x10	0.7	0.2	1.6	22.5	640
6	5x16	0.7	0.2	1.8	26	820
4	5x25	0.9	0.2	1.8	31	1190

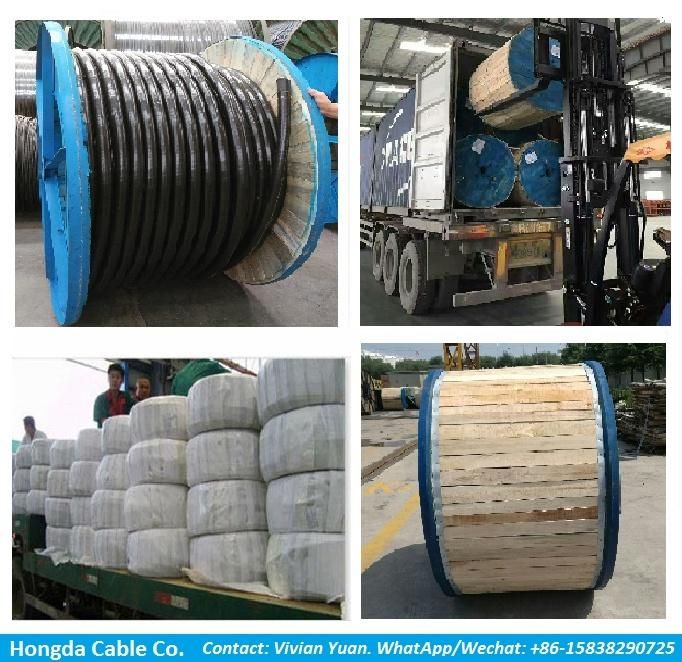

Packing & Shipping:
