• Model NO.：CCX WK overhead line
• Wire Core Material：Aluminum
• Certification：ISO, CCC, SGS
• Model：Ccx Wk 20 Kv
• Brand：Hongda
• Rated Voltage：20kv
• Test Voltage：20 Kv,50 Hz
• Standard：En 50397-1
• Bending Radius (Min.)：18 X D of Cable
• Transport Package：Steel & Wooden Drum
• Specification：25sqmm to 240sqmm
• Trademark：Hongda Cable
• Origin：Made in China
• HS Code：8544601200
• Production Capacity：600km,Month

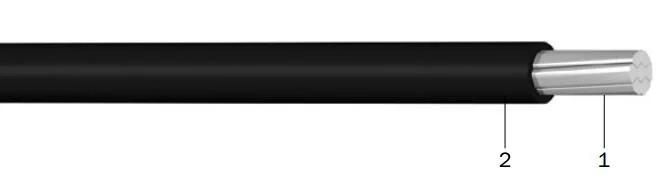

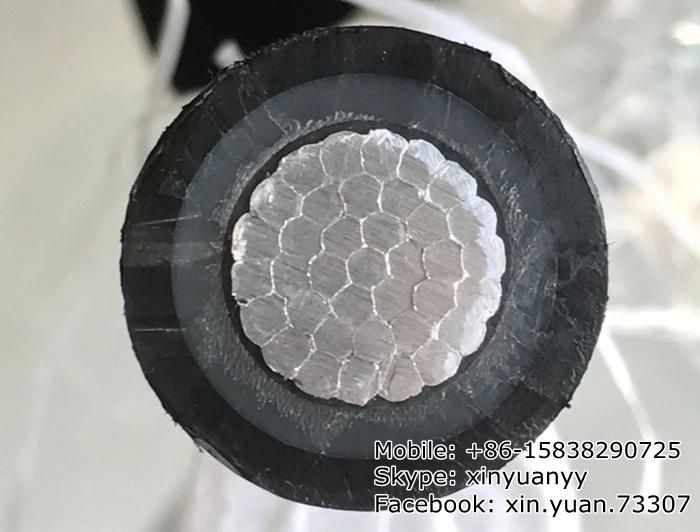

1. CONDUCTORBare alloy aluminium conductor (AlMgSi), round stranded compressed (RM). Longitudinally watertight by dry filling.2. INSULATIONCore insulation (XLPE, black, UV resistant)
Application:

Suitable for AC high-voltage overhead power lines. Provide protection against accidental contact with other life covered overhead conductors and with grounded parts. Since these cables are unscreened they are not touch proof and shall be treated as bare conductors in respect to electric shock.

TECHNICAL DATAStandard:EN 50397-1Rated voltage:20 kVTest voltage:20 kV/50 HzTemperature range:laying temperature: min. -20 °C
operating temperature: -40 °C to +80 °C
conductor temperature: max. +80 °C
short-circuit temperature: max. +130 °C/5 sBending radius (min.):18 x ∅ of cable
medium voltage overhead line Cable Specifications:CCX WK 20 kV34-AL31 x 35 RM1.0479.6416911.91751000/D49-AL31 x 50 RM0.70013.8721013.32251000/D66-AL31 x 70 RM0.52818.4425514.72801000/D93-AL31 x 95 RM0.37226.1432016.73751000/D117-AL31 x 120 RM0.29732.7936518.14501000/D147-AL31 x 150 RM0.23741.2342519.85601000/D
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.





Packing shipping



Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment


Any problem and inquiry pls contact with Vivian Yuan.
Phone number: +86-15838290725
