• Model NO.：FTTH Drop wire Fiber Optic
• Brand：Hanxin
• Connection Structure：Sz
• Allowed Lateral Pressure：1000n,100mm
• Core：Double Core
• Transport Package：Wooden Drum
• Specification：1-4c
• Trademark：Hanxin
• Origin：Zhejiang
• HS Code：854470000
• Production Capacity：2000000m,Month

Fiber CountCable TypeNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)1Simplex 2.0mm7.65.102.00.079490/110290/651Simplex 2.5mm7.85.232.50.098490/110290/651Simplex 2.8mm8.05.372.80.110490/110290/651Simplex 3.0mm8.25.503.00.118490/110290/652Duplex Flat28.018.794.0X6.80.157X0.267980/220580/1302Duplex Round18.412.354.20.165980/220580/1302Duplex Zip15.010.072.4X4.80.094X0.188980/220580/130
 Mechanical PropertiesMinimum Bending Radius:
Under installation:20hOD
During operation:10hOD
Temperature Range:
Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF)

Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)
 Maximum Compressive Load:2000N
Repeated Impact: 2.9 N.m (J)3h2 impacts
Twist (Torsion):180h10 times, 125hOD
Cyclic Flexing:25 cycles for armoured cables.;
                      100 cycles for unarmoured cables.
Crush Resistance:875N/cm (500lb/in)
    Fiber ComplianceTemperature CyclingIEC60794-1-2-F2Repeated BendingIEC60794-1-2-E6Tensile StrengthIEC60794-1-2-E17ATorsionIEC60794-1-2-ECrushIEC60794-1-2-E3KinkIEC60794-1-2-E10ImpactIEC60794-1-2-E4Cable BendIEC60794-1-2-E11    Cool BendIEC60794-1-2-E11
     Safety ComplianceGeneral Purpose GradeFlammability Test: OFN (UL1581)Riser Grade
Plenum Grade
FRPVC Grade
LSZH Grade

LSFROH Grade


FR GradeFlammability Test: OFNR/FT4 (UL1666)
Flammability Test: OFNP/FT6 (UL 910)
Flammability Test: IEC60332-1
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A
Fire Resistance Test: IEC 60331 / BS 6387 CWZ
    Standard Compliance
GR409-CORE                                       TIA/EIA 568B.3                                ICEA-S-83-596

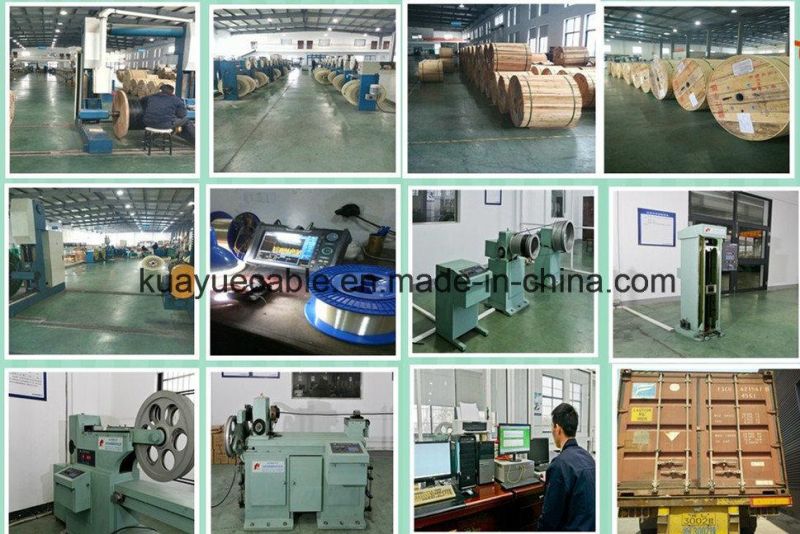

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25
