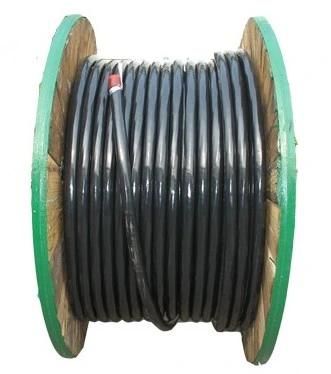

70sqmm95sqmm 120mm2 240mm2 300mm2 630mm2 XLPE Single Core Power Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station
  • Voltage：0.6,1kv, Low Voltage
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：70sqmm 95sqmm 120mm2 240mm2 300mm2 400mm2 Cable
  • Wire Core Material：Copper
  • Certification：ISO, CCC, CE, RoHS
  • Model：YJV
  • Brand：Hongda
  • Armour：Unarmour
  • Conductor Material：Copper
  • Standard：IEC
  • Quality Guarantee：Ten Years
  • Core：1 Core
  • Insulated Color：Red
  • Sheath Color：Black
  • Sample：Yes
  • Manufacture：Yes
  • Transport Package：Wooden Drum
  • Specification：0.6,1KV Copper power cable
  • Trademark：Hongda
  • Origin：China, Henan
  • HS Code：8544492100
  • Production Capacity：3000km,Per Months

Description

Rated voltage (kv)
Sectional area (mm2)
No. of core1st class0.6/11.8/33.6/66/108.7/1512/2018/3021/352nd class1/13/36/68.7/1012/1518/20-26/351 Core 1.5-80025-80025-120025-120035-120050-120050-120050-12002 Core 1.5-18525-185      3 Core 1.5-40025-40025-40025-40035-40050-40050-40050-4004 Core 2.5-40025-400      5 Core 2.5-40025-400
 2). DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.Nominal section area (mm2)1.52.54610162535507095120150185240300400500630800Copper core12.17.414.613.081.831.150.7270.5240.3870.2680.1930.1530.1240.0990.07540.06010.0470.03660.02830.0221Aluminum core18.112.17.414.613.081.911.20.8680.6410.4430.320.2530.2060.1640.1250.10.7780.06050.04690.0367
 3). Voltage Test and Partial Discharge TestRate voltage Uo (kv)
Item0.6/11.8/33.6/66/6 6/108.7/10 8.7/1512/2018/20 18/3021/3526/35VoltageTest voltage3.56.512.52130.5426373.591Test time555555555Partial discharge testTest voltage--6.210.415.120.831.136.345Discharge capacity--10101010101010 8Permitted temperature on core:  a) Long-term working temperatureºC-15~90b) Max. temperature in short circuit   ºC2509Max. DC. Conductor resistance at 20ºCohm/km0.153



1. 1 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.

2. 2 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

3. 3 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

4. 4 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

5. 5 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

6. 3+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

7. 3+2 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

8. 4+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

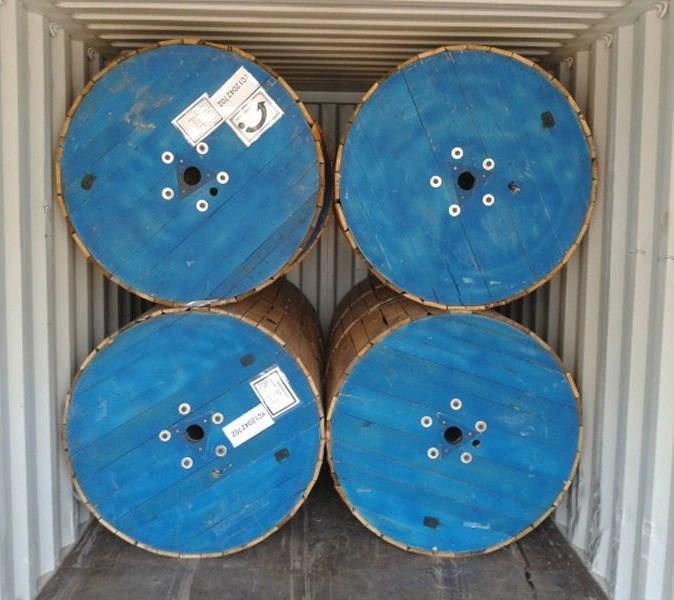

6. Packaging&Delivery.
70sqmm95sqmm 120mm2 240mm2 300mm2 630mm2 XLPE Single Core Power Cable   70sqmm95sqmm 120mm2 240mm2 300mm2 630mm2 XLPE Single Core Power Cable
Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 7 days(detailly depend on the order quantity)
