• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：Low Voltage Cable
• Brand：Hongda
• Standard：IEC, BS, AS,NZS, SABS
• Color：as Your Require
• Core Number：as Your Require
• Rated Voltage：1kv-35kv
• Rated Temperature：90c
• Armour：Steel Wire or Steel Tape
• Strand Number：7, 19, 37, 54, 61, 91
• Purity of Copper Conductor：99.99%
• Transport Package：Wooden Drum, Steel & Wooden Drum
• Specification：1mm2-400mm2
• Trademark：Hongda
• Origin：Henan China
• HS Code：8544492100
• Production Capacity：3000km,Month

Basic Info.

Wire Core Material Bare Copper Wire Certification ISO, CCC Model Low Voltage Cable Brand Hongda Standard IEC, BS, AS/NZS, SABS Color as Your Require Core Number as Your Require Rated Voltage 1kv-35kv Rated Temperature 90c Armour Steel Wire or Steel Tape Strand Number 7, 19, 37, 54, 61, 91 Purity of Copper Conductor 99.99% Transport Package Wooden Drum/ Steel & Wooden Drum Specification 1mm2-400mm2 Trademark Hongda Origin Henan China HS Code 8544492100 Production Capacity 3000km/Month

Product Description

Power transmission used industrial flexible copper PVC sheathed RV-K cable

1.  Main Application

RV-K cable is suitable for all types of low voltage industrial-type connections, in urban grids, building installations, etc. Its high flexibility makes the installation process substantially easier and, as a result, is particularly suitable for use in difficult layouts. It can be buried or installed in a tube as well as outdoors without requiring additional protection. This cable can withstand damp conditionsincluding total immersion in water (AD7).

Electrical performance

LOW VOLTAGE 0,6/1kV

Standard

IEC 60502-1 - UNE 21123-2

Approvals

CE

SEC

BUREAU VERITAS

AENOR

SASO

RoHS

KEMA KEUR

Construction Product Regulation

E_ca

Thermal performance

Maximum service temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Fire performance

Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

Reduced emission of halogens. Chlorine <15%.

Mechanical performance

Minimum bending radius: x5 cable diameter.

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Good.

UV Resistant: UNE 211605.

Water performance

Water resistance: AD7 Immersion

Other

Meter by meter marking.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Industrial use.

Urban grids.

Packaging

Available in rolls (lengths of  100 m) and drums.

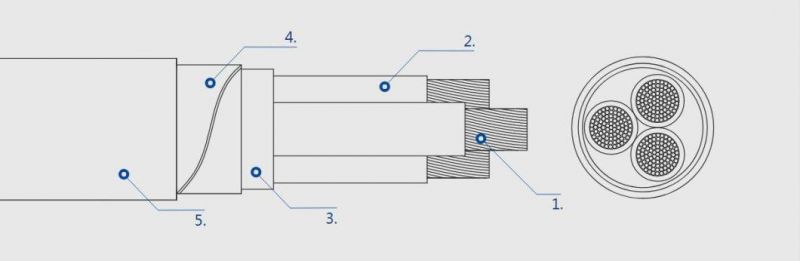

POWERFLEX RV-K cable design

Conductor

Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

Cross-linked polyethylene (XLPE)

The standard identification of insulated conductors is the following:

1 x  Natural

2 x Blue + Brown

3 G Blue + Brown + Green/yellow

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 G  Brown + Black + Grey + Green/yellow

4 x  Brown + Black + Grey + Blue

5 G  Brown + Black + Grey + Blue + Green/yellow

Outer sheath

Flexible PVC, black colour.

2.  Standards
IEC 60502-1 - UNE 21123-2
*KAIQI POWER can also design and produce for special application requirement.
3.  Products Technology

• Conductor
  • Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
• Insulation
  • Cross-linked polyethylene (XLPE)
  • The standard identification of insulated conductors is the following:
  • 1 x Natural
  • 2 x Blue + Brown
  • 3 G Blue + Brown + Yellow/green
  • 3 x Brown + Black + Grey
  • 3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)
  • 4 G Brown + Black + Grey + Yellow/green
  • 4 x Brown + Black + Grey + Blue
  • 5 G Brown + Black + Grey + Blue + Yellow/green
• Outer sheath
  • Flexible PVC, black colour.

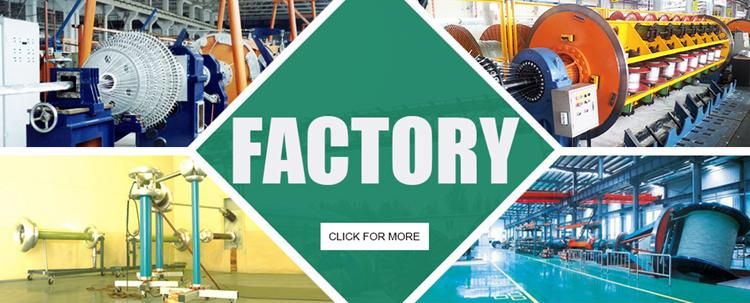

4. Factory

     Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Hongda Cable
covers an area of 100,000 square meters, including 50,000 square meters of building area. We have more than 120 staff members and professional workers. our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
     Henan Hongda Cable Co. Ltd. is the original Zhengzhou Hongda Cable Co. Ltd. established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products,We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 300 (sets) domestic and oversea-leading production and testing equipment
5. Packing and Transportation
  We provide you with the best product packaging design services, thereby allowing you to save more shipping charges

6. Certificate


7. FAQ
   Q: Are you the factory or the trading company?

    A: We are the factory.

   Q: How long is your guarantee Period?

    A: We uaually offer 1 year guarantee for our general products.

   Q: How can I get the samples?

    A: We can make the sample order. And usually we will charge for it.

        But the samples fee will be return to you when you make the bulk order.

   Q: Where is your factory? How can we visit your factory?

    A: Our factory located in Zhengzhou city, Henan Province. You could reach here by train and by air.

        We can pick you up in the airport and the railway station.

   Q; What is your MOQ?

    A: It`s base on the cable type or wire type.
