• Model NO.：rubber cable
• Material Shape：Round Wire
• Range of Application：Mine
• Certification：ISO9001, CCC, SGS
• Brand：Hongda
• Rated Voltage：600,1000V
• Test Voltage：3500V
• Temperature Range, Flexible Application：-30c to +80c
• Temperature Range, Fixed Installation：-40c to +80c
• Minimum Bending Radius, Flexible Applica：8 X Cable Diameter
• Screen：No Screen
• Transport Package：500m Per Drum, 1000m Per Drum
• Specification：1.5sqmm to 400sqmm
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：700km,Month

Basic Info.

Model NO. rubber cable Material Shape Round Wire Range of Application Mine Certification ISO9001, CCC, SGS Brand Hongda Rated Voltage 600/1000V Test Voltage 3500V Temperature Range, Flexible Application -30c to +80c Temperature Range, Fixed Installation -40c to +80c Minimum Bending Radius, Flexible Applica 8 X Cable Diameter Screen No Screen Transport Package 500m Per Drum, 1000m Per Drum Specification 1.5sqmm to 400sqmm Trademark Hongda Origin China HS Code 8544492100 Production Capacity 700km/Month

Product Description

PUR Mining HF/FR 3x185+3G35+2x1,5 Water Proof SOOW Rubber Cable

PUR Mining HF/FR

High quality cable for mining environment.
Used in similar applications as Buflex-M.

Category: Mining and Reeling Cables Tags: Buflex vastaava, PUR Mining, PUR rumpukaapeli, Reeling cable


Rubber Cable Description:

Technical data
Conductor	Flexible plain annealed copper conductor, class5
Conductor insulation	XLPE (Cross Linked Polyethylene)
Core color	Color coded
Screen	No screen
Outer sheath	PUR, yellow
Chemical resistance	Good oil resistance Good chemical resistance Good UV and ozone resistance Good water resistance Flame retardant Halogen free
Temperature range, flexible application	-30°C….+80°C
Temperature range, fixed installation	-40°C….+80°C
Nominal voltage Uo/U	600/1000V
Test voltage	3500V
Minimum bending radius, flexible application	8 x cable diameter
Max. tensile load	20 N/mm2 of phases copper cross section
Standards	According to: ROHS, IEC 60332-1


Rubber Cable Specification:


No. cores x cross section mm²	Outer Ø app. mm	Cable weight app. kg/km	Current Rating [A]	Tensile strength N
4G16	20 ±1,5	860	95	1280
3x25+3G6+2x1,5	25 ±1,5	1250	121	1500
3x35+3G6+2x1,5	27,3 ±1,5	1550	150	2100
3x50+3G10+2x1,5	31,5 ±2,0	2200	182	3000
3x70+3G16+2x1,5	36,5 ±2,0	3000	234	4200
3x95+3G16+2x1,5	40,5 ±2,5	3750	283	5700
3x120+3G25+2x1,5	44,5 ±2,5	4800	329	7200
3x150+3G25+2x1,5	51,5 ±2,5	5750	375	9000
3x185+3G35+2x1,5	56,5 ±2,5	7300	428	11100
3x240+3G50+2x1,5	61,5 ±2,5	8950	511	14400

Showing 1 to 10 of 10 entries

Other dimensions and colors available on request.

All rights for changes reserved.

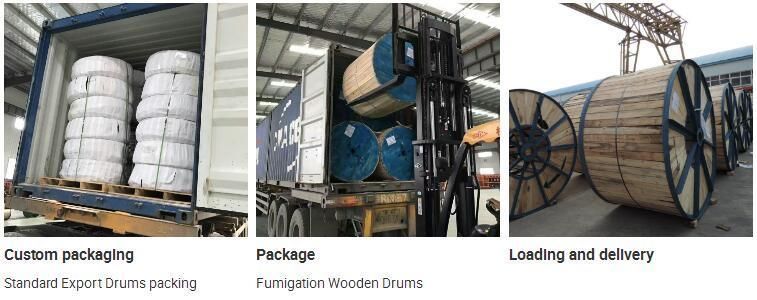

Rubber Cable PACKAGE:

A: Roll of 100 m.
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
