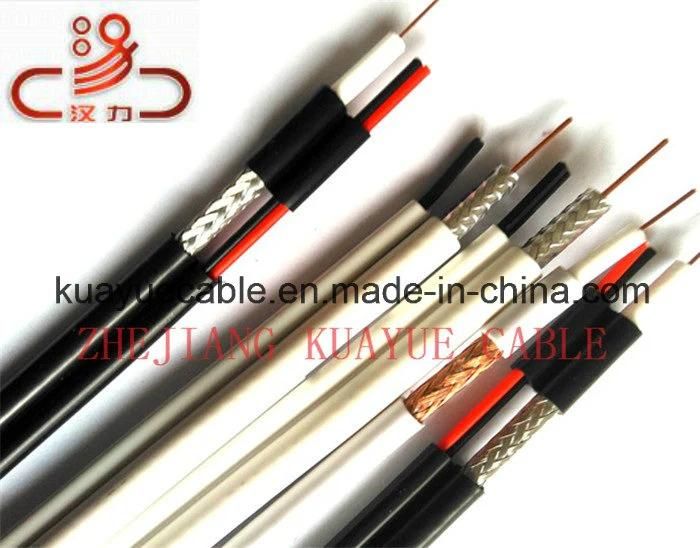

Coax Cable CCS Copper CCA CATV RG6 Rg58 Rg59 Rg11 Coaxial TV Signal Cable with RF Compression Connector

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable, DVD Player, Telephone, Game Player, Coaxial Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Coaxial
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：75ohm Twin RG 59 Coaxial Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Brand：Hanxin or OEM
  • Color：Black
  • Connector：RCA

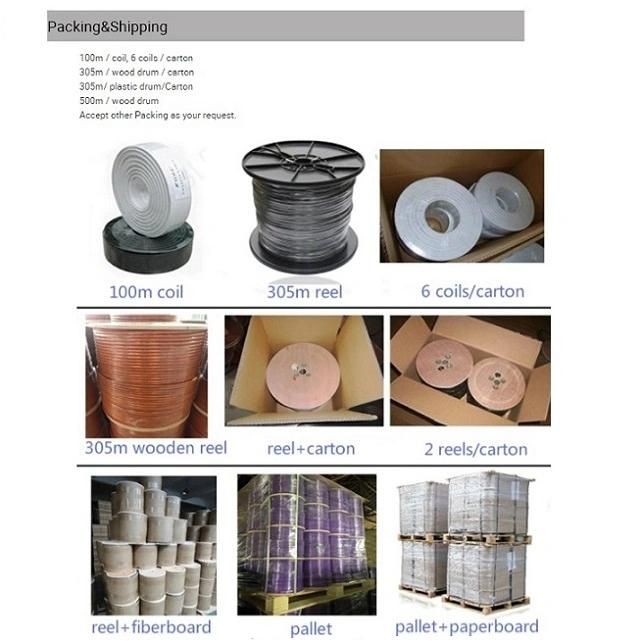

  • Transport Package：200m,305m
  • Specification：1,0.8CU+PE+B+PVC
  • Trademark：Hanli
  • Origin：Zhejiang
  • HS Code：8544200000
  • Production Capacity：10000000m,Year

Description

Inner conductorPlain copperΦ0.81±0.025mmDielectricF. PEΦ3.6 ±0.10mmOuter conductorTinned copper64x0.12mmShield coverage 65%SheathPVC o rLSZHΦ6.00*12.3±0.10mm

Electrical & Mechanical CharacteristicsImpedance53±3 Ohm0Nominal capacitance94pF/mVelocity of propagation66%Insulation resistance>2000 Mohm.KmInner conductor resistance35.0 Ohm/KmOuter conductorresistance16.5Ohm/KmTest/Operatig Voltage(max)5KV/2KVOperating temperaturerange-30°C-+70°CCopper Weight18.7Kg/KmCable weight(approx.)39.9Kg/KmScreening effectiveness100-900MHz>55dB

AttenuationFrequency(MHz)Attenuation(dB/100m)Attenuation(dB/100ft)509.12.7710013.13.9920019.45.9140028.48.6650032.29.8260035.710.8886044.813.66100049.014.94

Return Loss30-300MHz>26dB300-600MHz>25dB600-900MHz>24dB
Coax Cable CCS Copper CCA CATV RG6 Rg58 Rg59 Rg11 Coaxial TV Signal Cable with RF Compression ConnectorCoax Cable CCS Copper CCA CATV RG6 Rg58 Rg59 Rg11 Coaxial TV Signal Cable with RF Compression ConnectorCoax Cable CCS Copper CCA CATV RG6 Rg58 Rg59 Rg11 Coaxial TV Signal Cable with RF Compression ConnectorCoax Cable CCS Copper CCA CATV RG6 Rg58 Rg59 Rg11 Coaxial TV Signal Cable with RF Compression ConnectorCoax Cable CCS Copper CCA CATV RG6 Rg58 Rg59 Rg11 Coaxial TV Signal Cable with RF Compression ConnectorCoax Cable CCS Copper CCA CATV RG6 Rg58 Rg59 Rg11 Coaxial TV Signal Cable with RF Compression Connector

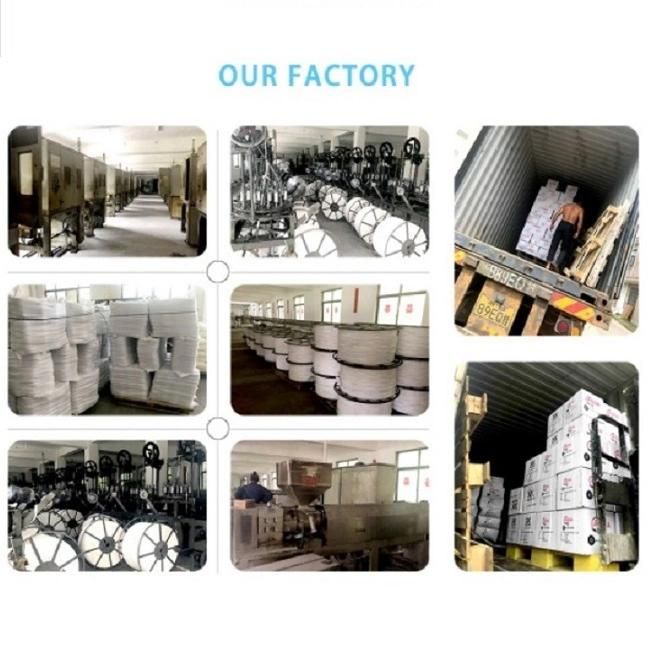

elcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
