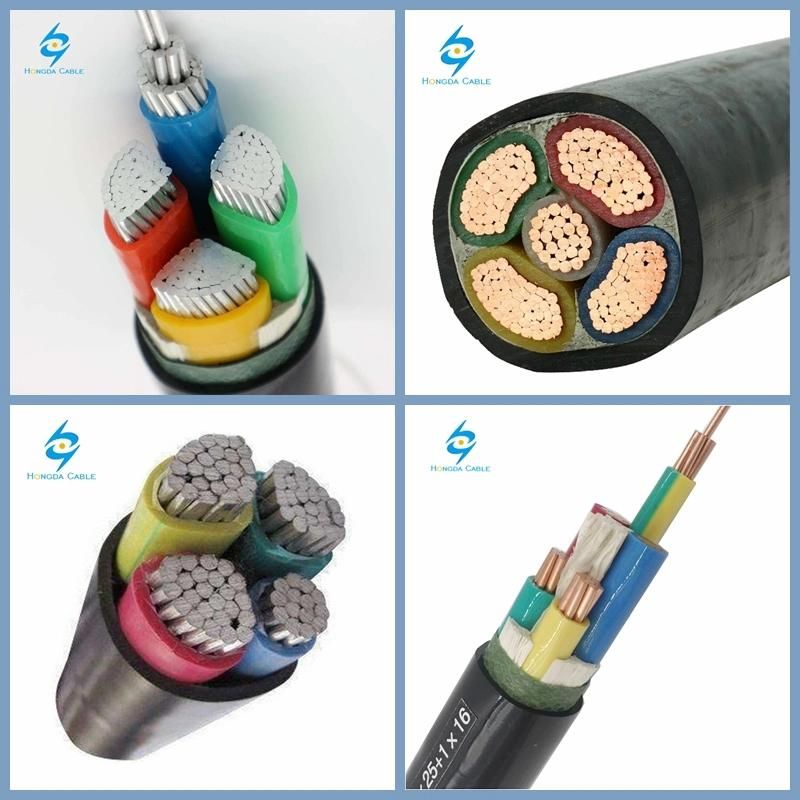

Alu Erdleitung Starkstrom Kabel Nayy-J 5X70 RM Ground Wire Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：ground wire Cable
- Wire Core Material：Aluminum , AAC
- Certification：ISO, CCC, SGS
- Model：Nayy-J , Ayy , A2xy
- Brand：Hongda
- Working Voltage：600,1000 Volts
- Test Voltage：4000 Volts
- Flexing Bending Radius：15 X D
- Static Bending Radius：12 X D
- Standard：IEC 60502
- Transport Package：500m or 1000m Per Drum, Special Customized
- Specification：10mm2 to 400mm2
- Trademark：Hongda
- Origin：China
- HS Code：8544492100
- Production Capacity：800km Per Month
Description
ConductorInductance Current - Carrying Short circuit Nom. Cross DC Resistance AC Resistance in air in ground (mm²) Max. (Ω/km) Max. (Ω/km) (mH/km) Max. (A) Max. (A) Max. (kA) 10 3.08 3.701 0.269 53 59 0.76 16 1.91 2.295 0.253 71 77 1.22 25 1.20 1.442 0.257 93 99 1.90 35 0.868 1.043 0.247 115 119 2.66 50 0.641 0.770 0.247 134 135 3.80 70 0.443 0.533 0.238 167 165 5.32 95 0.320 0.385 0.238 207 198 7.22 120 0.253 0.305 0.233 240 225 9.12 150 0.206 0.248 0.235 277 254 11.40 185 0.164 0.198 0.233 316 286 14.06 240 0.125 0.152 0.232 377 332 18.24 300 0.100 0.122 0.231 433 376 22.80
Capacity at 30° C *
current at 1 sec
Section Area
at 20°C
at 70°C
Nominal Thickness of Insulation
(mm)Nominal Thicknessof Outer Sheath
(mm) Approx.Overall Diameter(mm) Approx. Net Wt. of Cable (kg/km) AL Cable A2XY CU Cable 2XY 1x16 0.7 1.8 11 125 225 1x25 0.9 1.8 12 170 330 1x35 0.9 1.8 13 205 425 1x50 1.0 1.8 15 250 550 1x70 1.1 1.8 16 335 750 1x95 1.1 1.8 18 425 1000 1x120 1.2 1.8 20 515 1250 1x150 1.4 2.0 22 615 1520 1x185 1.6 2.0 24 770 1880 1x240 1.7 2.0 27 965 2415 1x300 1.8 2.0 30 1160 2980 1x400 2.0 2.2 33 1480 3800 1x500 2.2 2.2 36 1840 4815 1x630 2.4 2.2 40 2350 6150 1x800 2.6 2.4 47 2830 7840 1x1000 2.8 2.6 51 3670 9800
(Sq. mm)Nominal Thickness of Insulation
(mm) Minimum Thickness of Inner Sheath(mm) Nominal Thickness of Outer Sheath
(mm) Approx.Overall Diameter(mm) Approx. Net Wt. of Cable (kg/km) AL Cable A2XY CU Cable 2XY 3×25+16 0.9/0.7 0.3 2.0 22 575 1125 3×35+16 0.9/0.7 0.3 2.0 24 685 1425 3×50+25 1.0/0.9 0.3 2.0 27 880 1980 3×70+35 1.1/0.9 0.4 2.2 31 1185 2680 3×95+50 1.1/1.0 0.4 2.2 34 1480 3580 3×120+70 1.2/1.1 0.4 2.2 38 1880 4480 3×150+70 1.4/1.1 0.5 2.4 43 2275 5485 3×185+95 1.6/1.1 0.5 2.6 46 2770 6785 3×240+120 1.7/1.2 0.6 2.8 52 3580 8675 3×300+150 1.8/1.4 0.6 3.0 57 4380 10780 3×400+185 2.0/1.6 0.7 3.4 65 5580 13980 3×500+240 2.2/1.7 0.7 3.6 73 6980 17425 3×630+300 2.4/1.8 0.7 4.0 82 8885 21970
(Sq. mm)Nominal Thickness of Insulation
(mm) Minimum Thickness of Inner Sheath(mm) Nominal Thicknessof Outer Sheath
(mm) Approx.Overall Diameter(mm) Approx. Net Wt. of Cable (kg/km) AL Cable A2XY CU Cable 2XY 4x4 0.7 0.3 1.8 16 225 340 4x6 0.7 0.3 1.8 17 315 480 4x10 0.7 0.3 1.8 19 370 640 4x16 0.7 0.3 1.8 20 440 840 4x25 0.9 0.3 2.0 24 650 1290 4x35 0.9 0.3 2.0 26 780 1685 4x50 1.0 0.3 2.0 29 985 2190 4x70 1.1 0.4 2.2 34 1380 3090 4x95 1.1 0.4 2.2 37 1685 3980 4x120 1.2 0.5 2.4 41 2125 5130 4x150 1.4 0.5 2.6 45 2630 6230 4x185 1.6 0.5 2.8 50 3230 7830 4x240 1.7 0.6 3.0 56 4080 9980 4x300 1.8 0.7 3.2 63 5030 12030 4x400 2.0 0.7 3.6 70 6385 15980 4x500 2.2 0.7 3.8 79 7980 19985 4x630 2.4 0.7 4.0 88 9985 25985

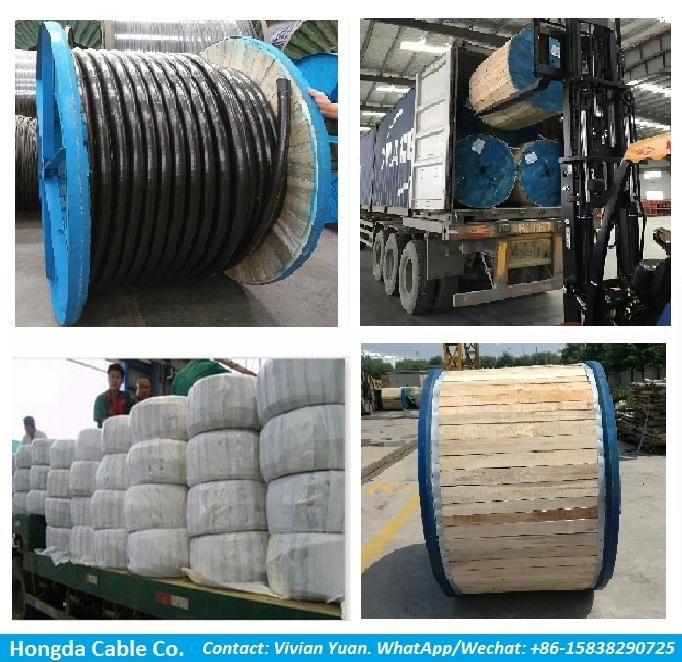

Packing
A: Reel of 1500 m.
B: Reel of 1000 m.
C: Reel of 500 m.
D: Multiple Reels of 1000 m.
E - Length to the client's requirement.Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.
Sea freight:
FOB/C&F/CIF/DAP quotation are all available.
Why Choose Us ?Quality And Safety
- Hongda Cable was founded in 1999 with almost 17 years of experience in the cable industry.

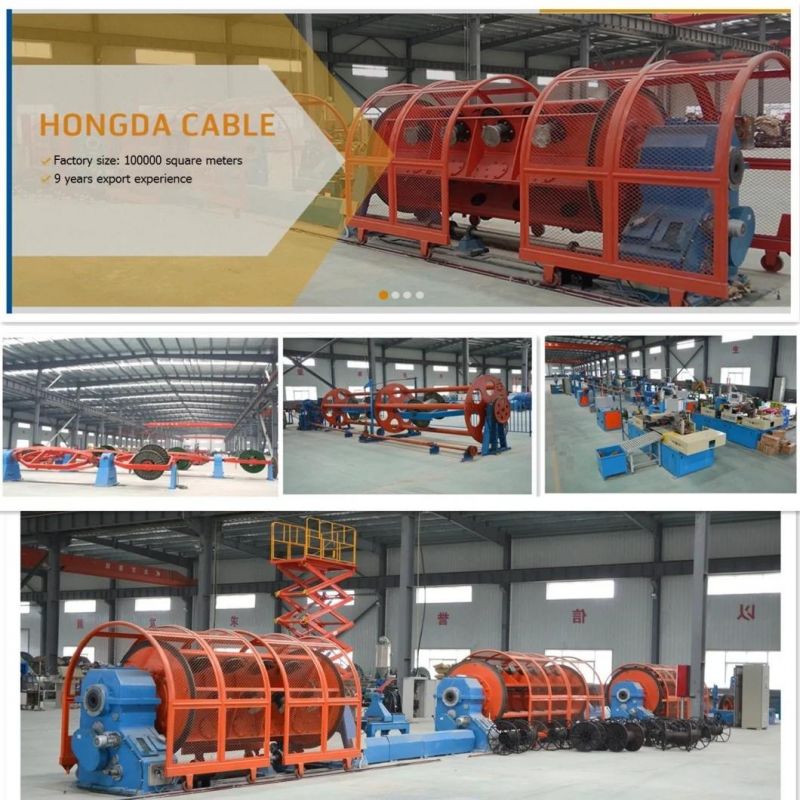

- Our manufacturing facilities are equipped with state-of-the-art technology, so we are able to meet our customers' needs for a wide range of industrial cables.
- With knowledgable engineers, rigorous quality standards and customer-centered core values, we are always ready to provide the best available products and services.
- For customers inquiring about our services, we offer product testing and sample analysis against international standards--free of charge.
Complete Inventory And Fast Delivery
- Our integrated manufacturing and storage facilities enable us to offer flexibility in specifications and fast turnaround time.
- Providing outstanding service level, Hongda Cable will meet your requirements for both standard products from our catalog and custom solutions.
Customized Solutions And Tailored Services
- With 17 years of experience, we are proud of our industry-leading R&D center and able to meet our customers' needs.
- Hongda Cable specializes in the design, manufacturing, and distribution of special industrial cable products. We welcome any ODM inquiries.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
If you have another question, pls feel free to contact us below:
Mobile: +86 158 3829 0725
(mm)
(mm)
(mm)
(mm)
(mm)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
