Factory Price Cat5e UTP LAN Cable 0.5mm CCA Copper Cable Indoor Outdoor Cable Network Cable PVC Jacket
Zhejiang Kuayue Cable Co., Ltd.- Application:Local Communication Cable, LAN Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PVC
- Type:Cat 5
- Material Shape:Flat Wire
- Conductor Type:Solid
Base Info
- Model NO.:cat5e
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS, CCC
- Model:Cat5e
- Brand:Kuayue
- Color:Grey
- Length:305m
- MOQ:15km
- Conductor:4*2*0.52mm Bc,CCA
- Insulation:0.92mm HDPE
- Jacket:5.1mm PVC,PE,LSZH

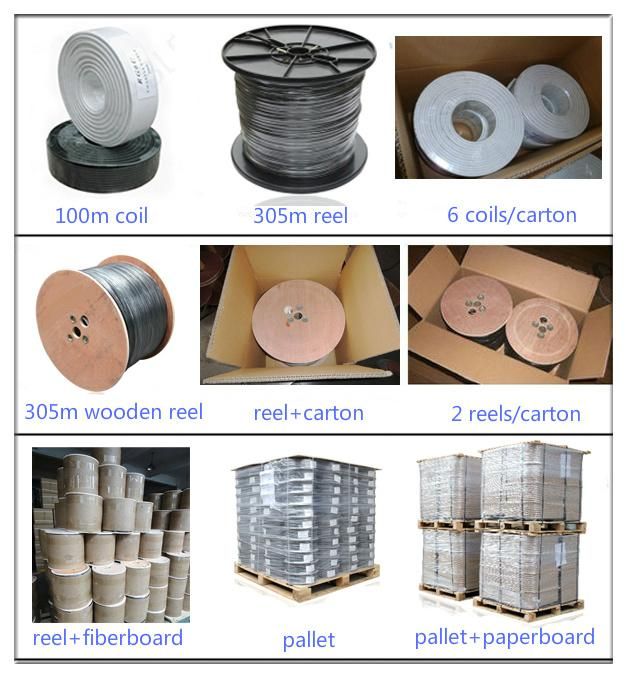

- Transport Package:Other Packing Is Available as Your Request.
- Specification:wooden reel, carton, pallet
- Trademark:Hanli
- Origin:Zhejiang
- HS Code:8544491100
- Production Capacity:200km,Day
Description
Impedance(Ohm)100±15 100±15 Velocity of propagation 70 70 Minimum Return Loss(dB) ≥23 ≥23 Frequency Attenuation(dB/100m) NEXT PS-NEXT ELFEXT PS-ELFEXT 1MHz 2.0 62.3 65.3 63.8 60.8 4MHz 4.1 53.3 56.3 51.7 48.7 10MHz 6.5 47.3 50.3 43.8 40.8 16MHz 8.2 44.3 47.3 39.7 36.7 20MHz 9.3 42.8 45.8 37.7 34.7 31.25MHz 11.7 39.9 42.9 33.9 30.9 62.5MHz 17.0 35.4 38.4 27.8 24.8 100MHz 22.0 32.3 35.3 23.8 20.8 Application: 100 Base-T4 100 Base-TX 100VG - AnyLAN 1000 Base-T (Gigabit Ethernet) 155 Mbps ATM 622 Mbps ATM Packing

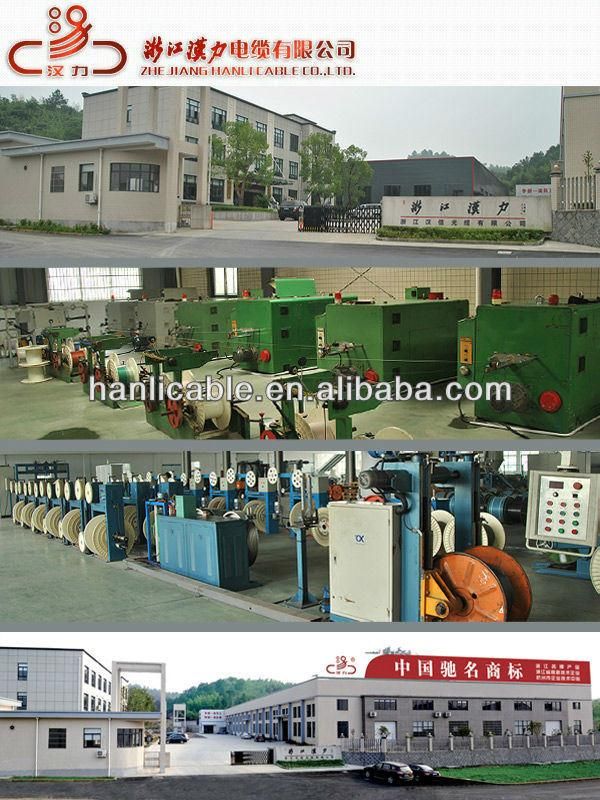

Company Information
