• Model NO.：H05V3V3h6-F,H05V3V3d3h6-F
• Material Shape：Flat Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Application and Description

This kind of flat cables are used in crews of elevators for people and have burdens, and conducting very swift and hard parts of machines.H05V3V3H6-F type cables having no strechter carrier elements are adviced to use in elevator instalations max. swift not pass 4.0 m/s.

These cables freely hanging height is max. 45m and movement limit is max 80m. For the H05V3V3D3H6-F, at the swifts between 4.0/s to 6.3m/s, it's adviced to use the cables having strechter carrier elements. H05V3V3D3H6-F type cables freely hanging height is max. 80m movement limit is max. 150m.

Standard and Approval

• H05V3V3D3H6-F18(24/32)20 x 0.7561.8 x 4.213146218(24/32)24 x 0.7572.4 x 4.215754617(32/32)12 x 141.8 x 4.310533017(32/32)14 x 147.8 x 4.312238217(32/32)18 x 157.8 x 4.315747017(32/32)22 x 169.8 x 4.319257217(32/32)24 x 174.8 x 4.3210617

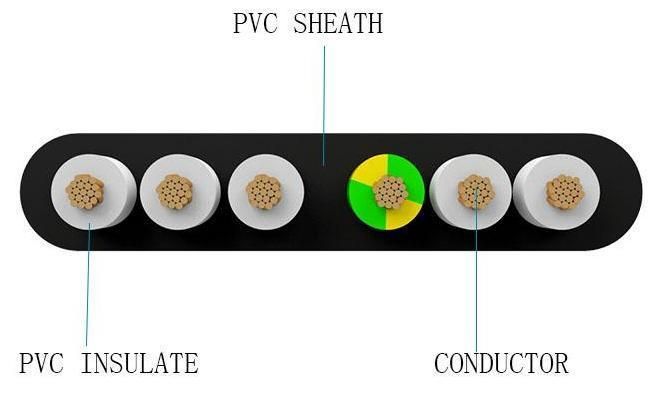

  Cable Construction

  Bare copper strand conductor

  acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6

  PVC T15 core insulation

  Color coded to VDE 0293-308, >6 wires black with white numerals with green/yellow wire

  Black PVC TM 4 sheath

  Technical Characteristics

  WORKING VOLTAGE	300/500V
  TEST VOLTAGE	2000V
  FLEXING TEMPERATURE	-35 ºC to +70 ºC
  FLAME RETARDANT	IEC 60332 -1
  INSULATION RESISTANCE	350 MΩ x km
