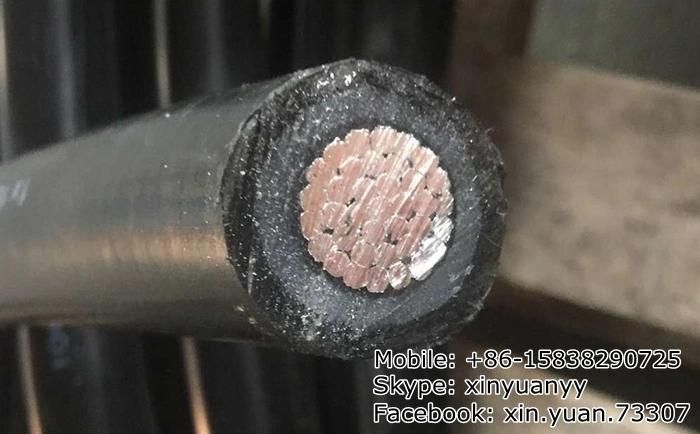

Medium Voltage Aerial Spacer Cable 20 Kv
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Industrial
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：HDPE
- Material Shape：Round Wire
Base Info
- Model NO.：Aerial Spacer Cable
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE, SGS
- Model：Al,XLPE,HDPE
- Brand：Hongda
- Voltage Rating：20kv, 30kv
- Standard：En 50397-1
- Sheath：HDPE Compound
- Transport Package：Steel & Wooden Drum
- Specification：35 mm2 up to 240 mm2
- Trademark：Hongda Cable
- Origin：Made in China
- HS Code：8544601200
- Production Capacity：600km,Month
Description
Aerial Spacer Cable 20 kvCrossectional Conductor Construction Conductor Dia. Thickness Approx. Overal dia Electical Resistance Calc. Breaking Force Air Flow Capacity at 20ºC Approx. Conductor Weight Semi Conductor Insulation Jacket Mm2 Nxmm mm mm mm mm mm Ω/km N A Kg/km 70 12×2.77 10 0.4 3.2 3.2 23.5 0.443 10.420 229 509 120 15×3.30 13.2 0.4 3.2 3.2 26.7 0.253 18.518 321 729 150 15×3.66 14.8 0.4 3.2 3.2 28.4 0.206 22.457 371 826 185 30×2.88 16.2 0.4 3.2 3.2 29.7 0.164 28.974 429 959 Aerial Spacer Cable 33 kv 70 12×2.77 10 0.4 4.5 3.2 26.0 0.443 10.420 227 630 120 15×3.30 13.2 0.4 4.5 3.2 29.3 0.253 18.518 318 850 150 15×3.66 14.8 0.4 4.5 3.2 30.8 0.206 22.457 367 960 185 30×2.88 16.2 0.4 4.5 3.2 32.2 0.164 28.974 425 1100
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
Any problem and inquiry pls contact with Vivian Yuan.
