4 Core Unshield PVC Security Alarm Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable, Alarm Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Alarm Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：Alarm Cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, ETL,CPR
- Model：4 Core Alarm Cable
- Brand：Risun or OEM
- Insulation：PVC
- Sheath：PVC
- Conductor：7,0.2mm Stranded Cu
- Shield：Unshield

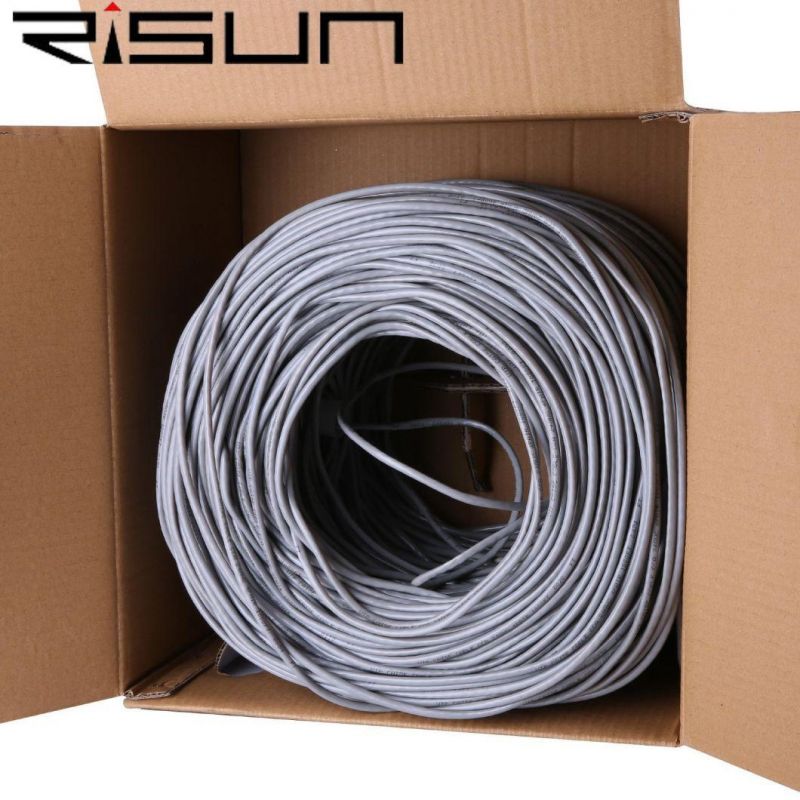

- Transport Package：100m,Coil, 305m,Relex Box, 500m,Wooden Drum
- Origin：Hangzhou, Zhejiang, China
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
Conductor24 AWG 7/0.2mm Standing 0.22 Area(mm2 ) Insulation Cores:4 Material :PVC Colour :White, Blue, Red, Black Nominal Thickness (mm) :0.28 Nominal OD (mm) : 1.2 Sheath Material : PVC Nominal Thickness (mm) : 0.36 Nominal OD (mm) : 3.6
Electrical Properties
Mechanical Properties
Package
100m/coil,305m/relex box,500m/wooden drum or according to your request
Company Profilerisun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.

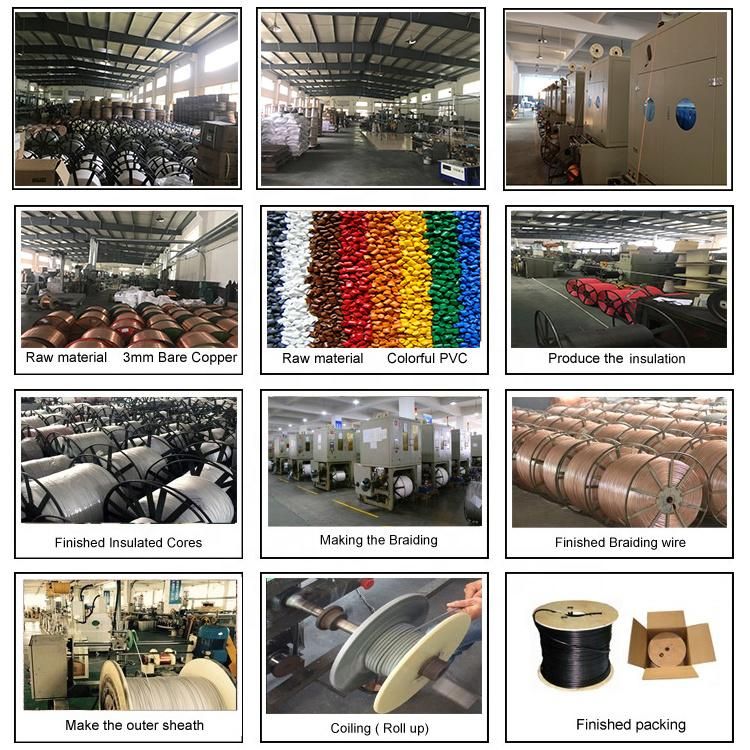

process of production:
Electrical Properties
| Voltage Rating | ELV |
| Max. Conductor DC Resistance @ 20°C | 93.3Ω/km |
| Min. Insulation Resistance @ 20°C | 50MΩ.km |
| Voltage Test: Conductor to core | 1.5 kV ac/1min |
| Voltage Test: Core to sheath | 3.0 kV ac/1min |
Mechanical Properties
| Operating Temperature Range | -15 to 70ºC |
| Max. Recommended Pulling Tension | 56N |
| Min. Bend Radius (install) | 36mm |
| Approximate Mass | 1.92kg/100m |
Package
100m/coil,305m/relex box,500m/wooden drum or according to your request
Company Profilerisun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
process of production:
