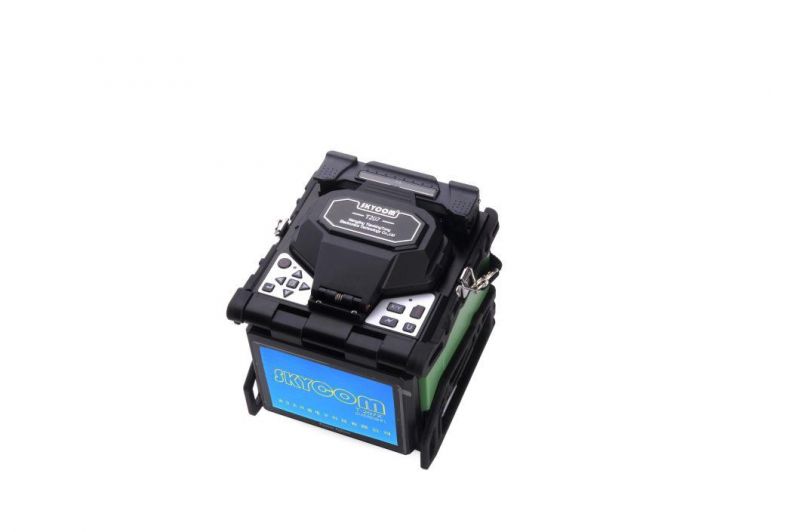

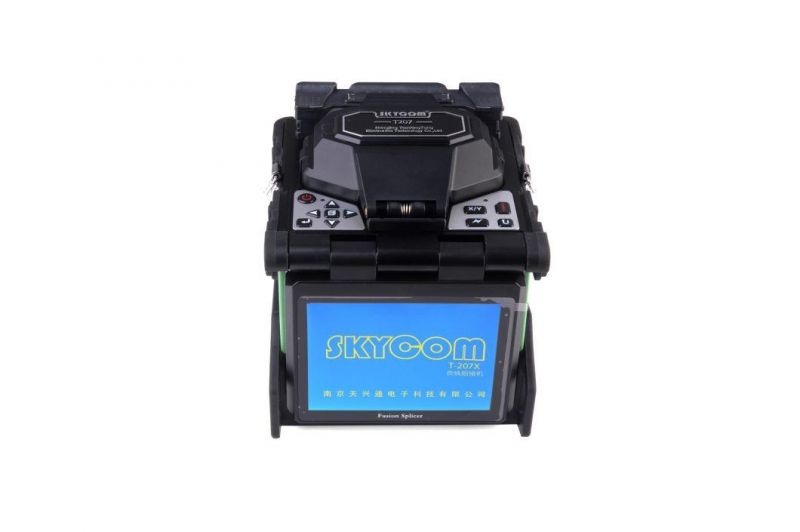

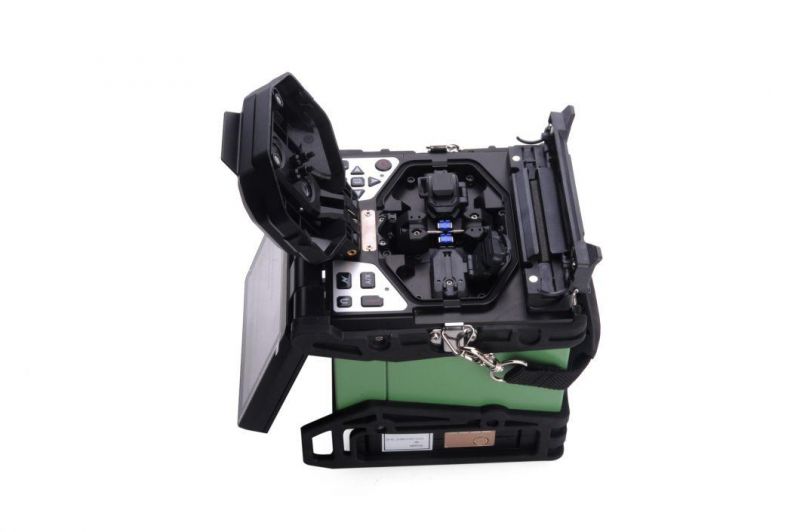

Patented Fiber Optic Welding Machine (T-207X)
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Application:Communication, Sensor, Probe
- Type:Multi-mode Fiber
- Connection Structure:FC-FC
- Material Shape:Round Wire
- Allowed Lateral Pressure:>1000(N,100mm)
- Allowed Tensile Strength:>10000N
Base Info
- Model NO.:T-207X
- Core:Multicore
- Certification:CE, ISO9001, SGS
- Brand:OEM
- Sheath Material:Crosslinking
- Applicable Fibers:Sm, mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire
- Average Splice Loss:0.02dB(Sm), 0.01dB(mm), 0.04dB(Nzds), 0.04dB(Edf)
- Return Loss:>60dB
- Protection Sleeve Length:20mm, 40mm, 60mm
- Language:Multi-Language
- Tension Test:2.0n 200gf Standard
- Monitor:5 Inches Colorful LCD Display
- Fiber Image Magnification:X and Y Views with 300 Times
- Dimension:130mm(W) *135mm( D) * 130mm(H)
- Weight:2.50kg
- Transport Package:Export-Standard Carton Box with PE Foam Inside
- Specification:CE, SGS, CSI, ISO9000
- Trademark:Skycom , OEM
- Origin:Nanjing,Shanghai, China
- HS Code:8501109101
- Production Capacity:1800PCS, Month
Description
Basic Info.
Model NO. T-207X Core Multicore Certification CE, ISO9001, SGS Brand OEM Sheath Material Crosslinking Applicable Fibers Sm, mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire Average Splice Loss 0.02dB(Sm), 0.01dB(mm), 0.04dB(Nzds), 0.04dB(Edf) Return Loss >60dB Protection Sleeve Length 20mm, 40mm, 60mm Language Multi-Language Tension Test 2.0n 200gf Standard Monitor 5 Inches Colorful LCD Display Fiber Image Magnification X and Y Views with 300 Times Dimension 130mm(W) *135mm( D) * 130mm(H) Weight 2.50kg Transport Package Export-Standard Carton Box with PE Foam Inside Specification CE, SGS, CSI, ISO9000 Trademark Skycom / OEM Origin Nanjing/Shanghai, China HS Code 8501109101 Production Capacity 1800PCS/ MonthProduct Description
Patented Fiber Optic Welding Machine (T-207X)Main Features:
5 inches high Resolution colorful LCD display, image can be turned according to position
Average splice time: 9 second
Average tube-heat time: 30 second
Lithium battery: 8AH and up to 180 times of continuous splice and heat after fully charged
Simultaneous X and Y views with 300times magnification,X or Y can be viewed separately 400 times.
Cutting-edge technology for image processing
New developed technology providing strong wind and dust resistance
Working mode:Auto & Manual &Full-Auto
USB Port
Storing 6,000 groups of latest splice results.
Rubber-insulated wire cutting fixture(three in one)
Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)
Specifications:
Applicable Fibers | SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss | ≥60dB |
Tension Test | 2.0N(200gf)(Standard) |
Splicing Program | 50 groups |
Heat-shrinkable T bush | 20mm, 40mm, 60mm |
Language | Chinese, English |
Environmental Conditions | -10~+50ºC(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Batteryr: 12V voltage 8AH |
Dimensions/Weight | 130(W)*135(L)*130(H)/ 2210 g |
Standard Package
No. | Item | Quantity |
1 | Machine (T-207) | 1 |
2 | Fiber Cleaver(601-1071) | 1 |
3 | Fiber Stripper | 1 |
4 | AC Adaptor(602-120500D) | 1 |
5 | Battery(603-1072) | 1 |
6 | Charger(602-126250W) | 1 |
7 | Spare Electrodes | 1 |
8 | Cooling Tray | 1 |
9 | Instruction CD | 1 |
10 | Quick Reference Guide | 1 |
11 | Rubber-insulated wire stripping pliers | 1 |
12 | Rubber-insulated wire cutting fixture | 1 |
13 | Transit Case with Carrying Strap | 1 |
