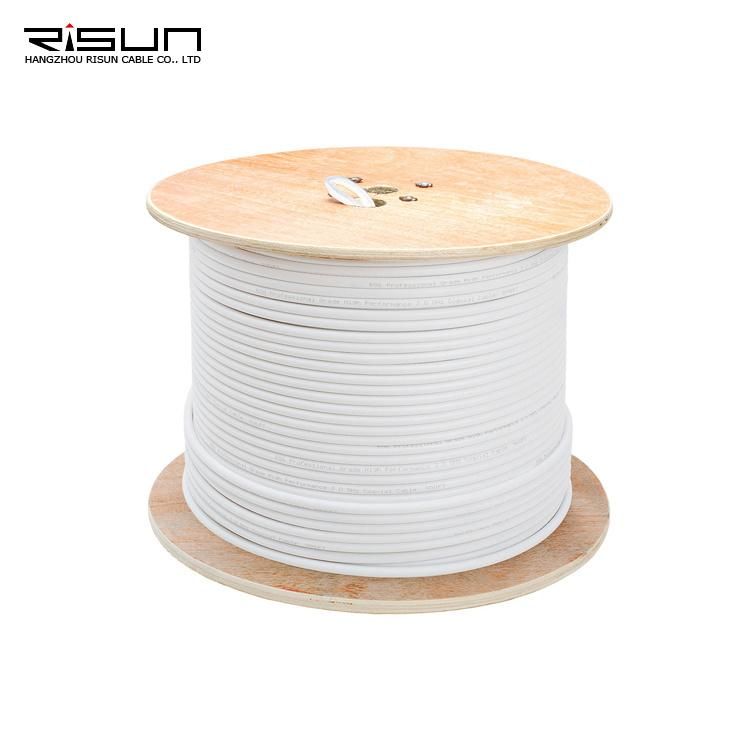

• Model NO.：UTP Cat3
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
• Model：UTP Cat3
• Brand：Risun or OEM
• Number of Conductor Pairs：25
• Size：24AWG
• Conductor：Solid Bare Copper
• Insulation Material：HDPE
• Jacket：PVC or LSZH
• Shield Material：None
• Rip Cord：Yes
• Outer Diameter (mm)：11.0
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：ETL, CE, RoHS, SGS, ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

UTP CAT3 solid Number of Conductor Pairs25Size   24AWGPair 1 Blue - White Pair 14 Brown - BlackPair 2 Orange - WhitePair 15 Grey - BlackPair 3 Green - White Pair 16 Blue- YellowPair 4 Brown - WhitePair 17 Orange - YellowPair 5 Gray - WhitePair 18 Green - YellowPair 6 Blue - RedPair 19 Brown - YellowPair 7 Orange - Red Pair 20 Gray - YellowPair 8 Green - RedPair 21 Blue - VioletPair 9 Brown - RedPair 22 Orange - VioletPair 10 Gray - RedPair 23 Green - VioletPair 11 Blue - BlackPair 24 Brown - VioletPair 12 Orange - BlackPair 25 Gray - VioletPair 13 Green - Black

Mechanical Characteristics:Temperature RatingInstallation-20°C to +75°C Operating-20°C to +75°CMin. Ben Radius 8 times the O.D.Max. Pulling Force 25 lbsTensile StrenthBefore> = 13.8 MpaElongationAging> = 100%Aging Condition 100°C x 168 hous After> = 85% of unaged Aging> = 85% of unaged

Electrical Characteristics:Non. velocity of prop. (NVP)0.69Max. conductor resistance 20˚C9.38 ohms/100 mResistance unbalance %≤ 5 %Pair-to-ground capacitance unbalance≤ 330 pF/100 m

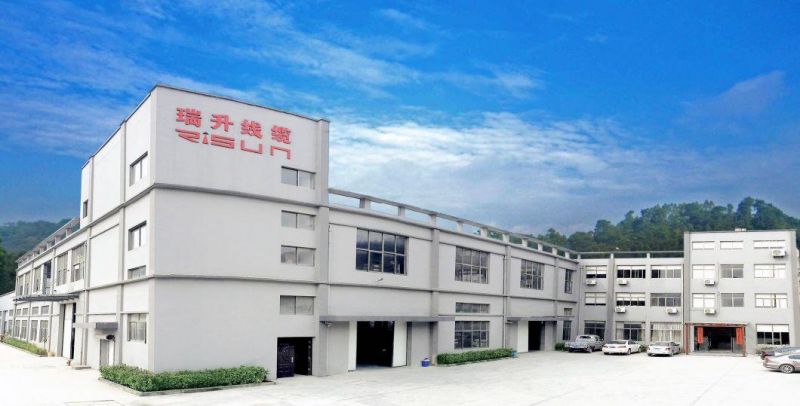

Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.

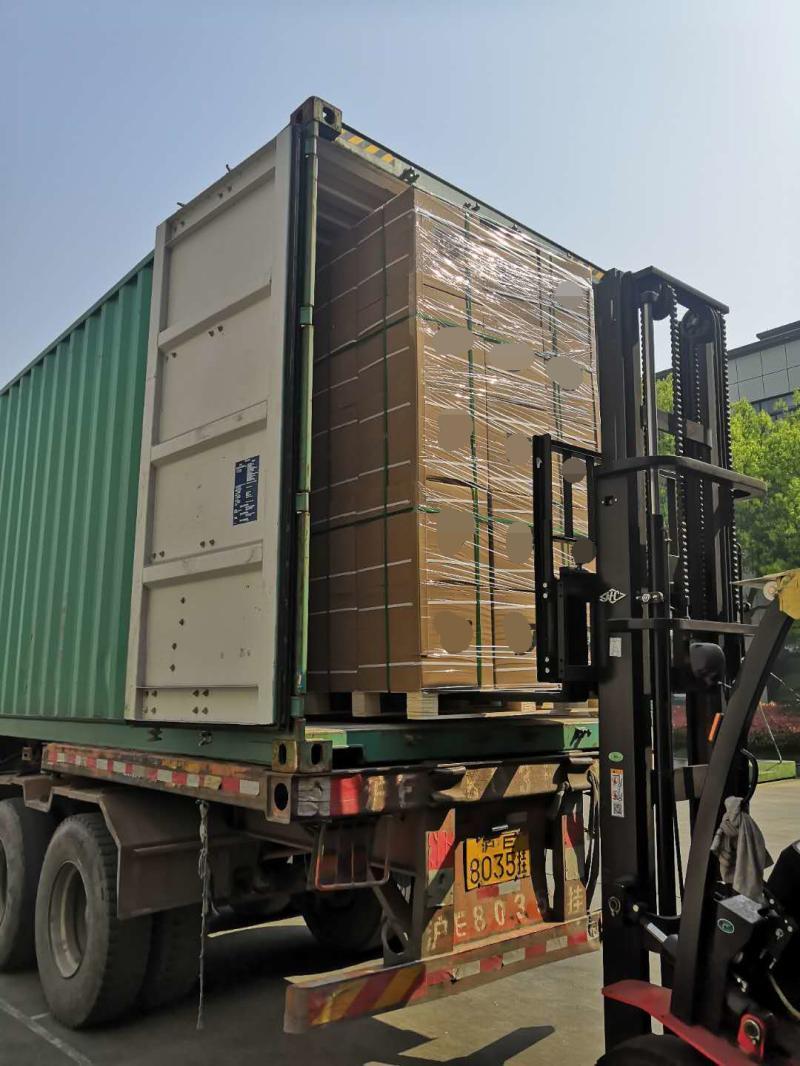

Packing&Shipping:









































Why Choose Us:











FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
