24AWG High Temperature Wire with UL 5256
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Stranded
- Conductor Material：Copper
- Sheath Material：PTFE
- Insulation Material：Fiberglass
- Material Shape：Flat Wire
Base Info
- Model NO.：AWM5256
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS
- Brand：Fongming
- Awm：5256
- Conductor：Copper
- Insulation：Fiberglass
- Temperature：-60--+250 0c
- Transport Package：200 Meter Per Roll
- Specification：UL, SGS, ROHS
- Trademark：Fongming
- Origin：P. R China, Yangzhou
- HS Code：8544492100
- Production Capacity：3000km Per Month
Description
Basic Info.
Model NO. AWM5256 Range of Application Flame Retardant Certification ISO9001, CE, UL, CCC, RoHS Brand Fongming Awm 5256 Conductor Copper Insulation Fiberglass Temperature -60--+250 0c Transport Package 200 Meter Per Roll Specification UL, SGS, ROHS Trademark Fongming Origin P. R China, Yangzhou HS Code 8544492100 Production Capacity 3000km Per MonthProduct Description
24 AWG High Temperature Wire with UL 5256Feature:
Name: 24 AWG High Temperature Wire with UL 5256
Model No.: AWM5256
Size: 24AWG~2AWG
Feature
Ratings: -60°C~+250°C, 300V

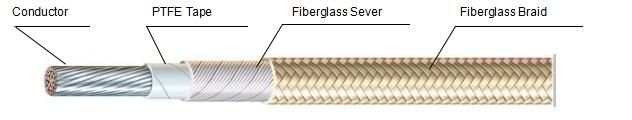

Conductors: Nickel copper, Nickel
Insulation: PTFE tape, fiberglass braid
Jacket: Fiberglass braid with high temperature finish
Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.
Specification
| Size AWG | Strands | Outer Dia. mm | Wgt-kg per km |
| 24 | 7/0.2 | 1.6+0.1 | 5.5 |
| 22 | 7/0.25 | 1.7+0.1 | 6.8 |
| 20 | 7/0.3 | 1.8+0.1 | 8.5 |
| 18 | 19/0.23 | 2.0+0.1 | 11.7 |
| 16 | 26/0.254 | 2.5+0.1 | 19.1 |
| 14 | 41/0.254 | 2.9+0.1 | 27 |
| 12 | 65/0.254 | 3.3+0.1 | 40 |
| 10 | 105/0.254 | 4.0+0.1 | 61 |
