24 AWG High Temperature Wire with UL 5257
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, Underground
- Conductor Material：Copper
- Sheath Material：Mica Glass Composite
- Insulation Material：Mica Glass Composite
Base Info
- Model NO.：AWM5257
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, RoHS
- Brand：Fongming
- Conductor：Copper
- Insulation：PTFE Tape with Fiberglass Composite
- Braided：PTFE and Fiberglass Tape
- Coated：Fiberglass Tape with Braiding
- Color：Red, Green, Yellow, Blue
- Rating Voltage：300V
- Working Temperature：-60 Oc---+ 250 Oc
- Jacket：Fiberglass Braid with High Temperature
- Transport Package：305m Per Roll, Carton Box Outside
- Specification：ROHS, UL
- Trademark：Fongming
- Origin：P. R China, Yangzhou
- HS Code：8544492100
- Production Capacity：3000km Per Month
Description
Basic Info.
Model NO. AWM5257 Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, UL, RoHS Brand Fongming Conductor Copper Insulation PTFE Tape with Fiberglass Composite Braided PTFE and Fiberglass Tape Coated Fiberglass Tape with Braiding Color Red, Green, Yellow, Blue Rating Voltage 300V Working Temperature -60 Oc---+ 250 Oc Jacket Fiberglass Braid with High Temperature Transport Package 305m Per Roll, Carton Box Outside Specification ROHS, UL Trademark Fongming Origin P. R China, Yangzhou HS Code 8544492100 Production Capacity 3000km Per MonthProduct Description
Product Description
24 AWG High Temperature Wire with UL 5257 Feature:
Name: 24 AWG High Temperature Wire with UL 5257
Model No.: AWM5257
Size: 24AWG~2AWG

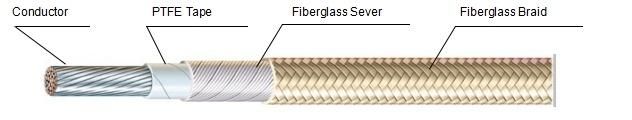

Feature
Ratings: -60°C~+250°C, 300V
Conductors: Nickel copper, Nickel
Insulation: PTFE tape, fiberglass braid
Jacket: Fiberglass braid with high temperature finish
Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.
Specification
| Size AWG | Strands | Outer Dia. mm | Wgt-kg per km |
| 24 | 7/0.2 | 1.6+0.1 | 5.5 |
| 22 | 7/0.25 | 1.7+0.1 | 6.8 |
| 20 | 7/0.3 | 1.8+0.1 | 8.5 |
| 18 | 19/0.23 | 2.0+0.1 | 11.7 |
| 16 | 26/0.254 | 2.5+0.1 | 19.1 |
| 14 | 41/0.254 | 2.9+0.1 | 27 |
| 12 | 65/0.254 | 3.3+0.1 | 40 |
| 10 | 105/0.254 | 4.0+0.1 | 61 |
